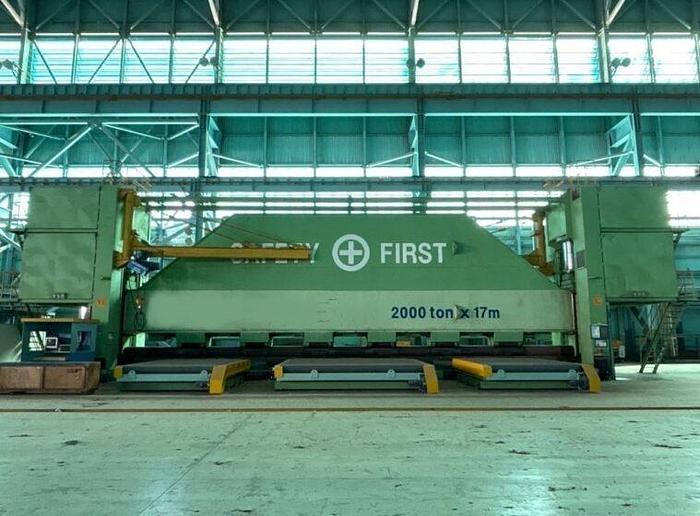

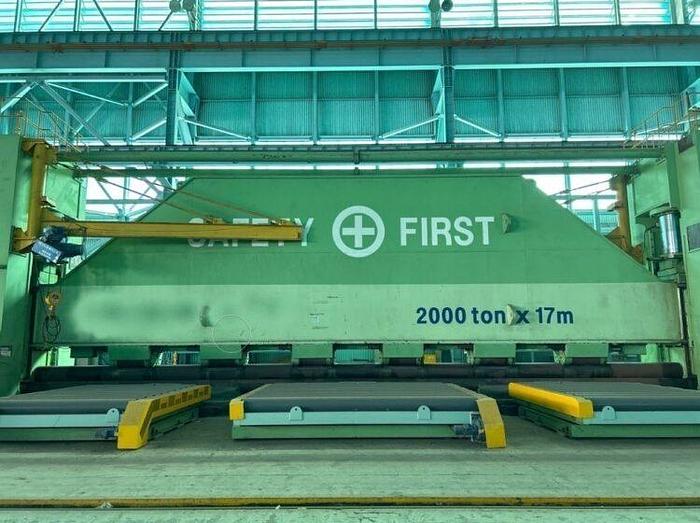

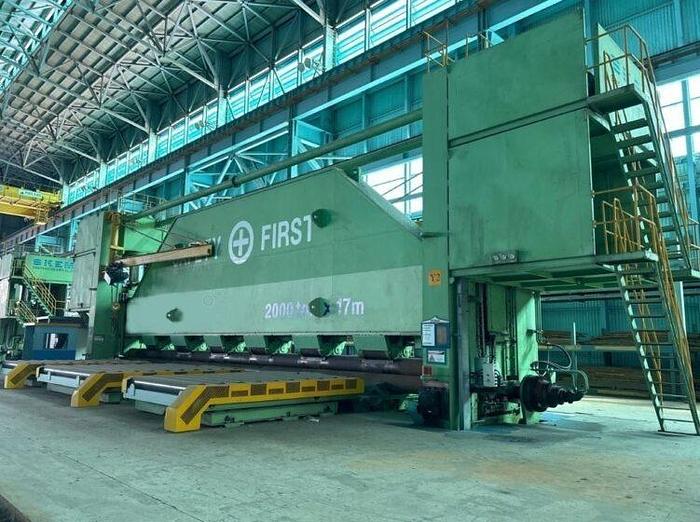

SKEM SRP 2000 – 17M 2000 TON CNC HEAVY DUTY ROLL BENDING PRESS
SKEM SRP 2000 – 17M 2000 TON CNC HEAVY DUTY ROLL BENDING PRESS
or
Call 770-509-0744
Description

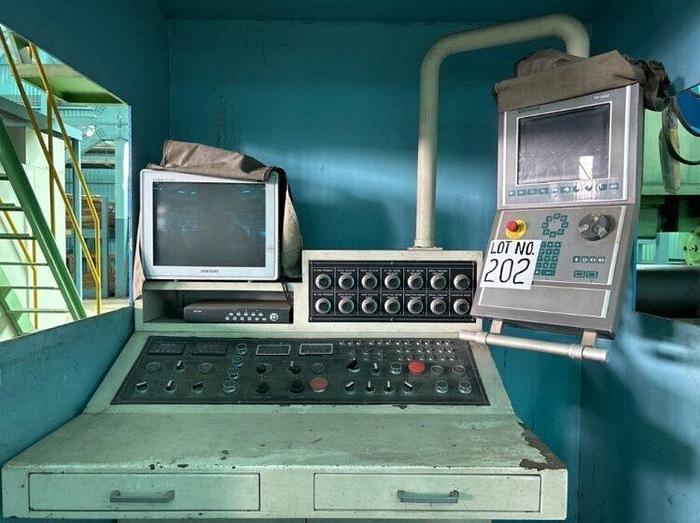

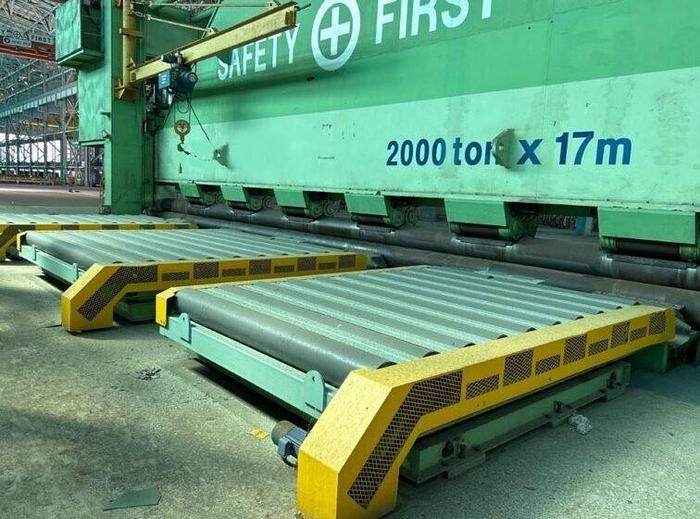

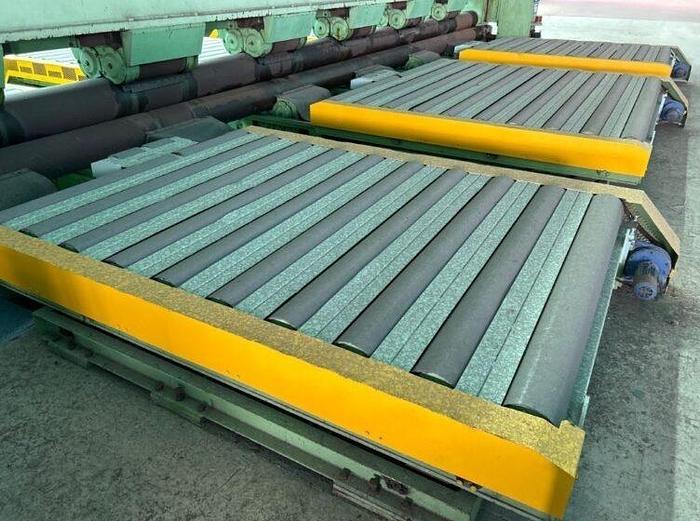

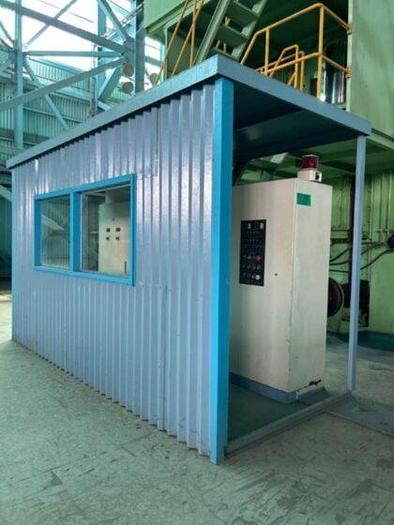

Control Panel Panel Boxes Conveyors

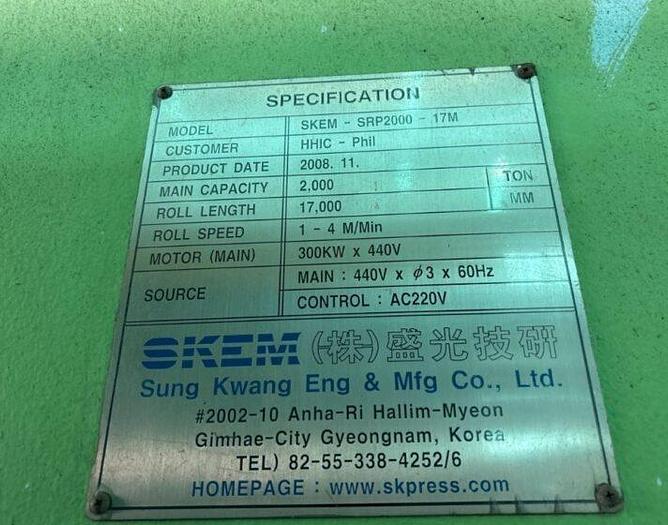

Specifications
| Manufacturer | SKEM |
| Model | SRP 2000 - 17M |
| Year | 2008 |
| Condition | Used |
| Stock Number | 10972 |
| Top roll diameter | 480 mm |
| Capacity | 2,000 Ton |
| Bottom roll | 400 mm; 6 sets of Back-Up Rolls |
| Working size | 17,000 mm x 35 Ton, 5,500 x 40 Ton |
| Max roll length | 17,000 mm |
| Minimum daylight between roller | 960 mm |
| Maximum ram stroke | 1,040 mm |
| Min/max bottom roll centers | 500 / 800 mm |
| Pressing speed | 1 to 6 mm/sec, Ram Approach 60 mm/sec |
| Main motor | 93 kW |
| Machine weight, approximate | 600 Ton |
| Machine dimensions (l x w x h) | 25,000 x 3,200 x 8,000 mm |
