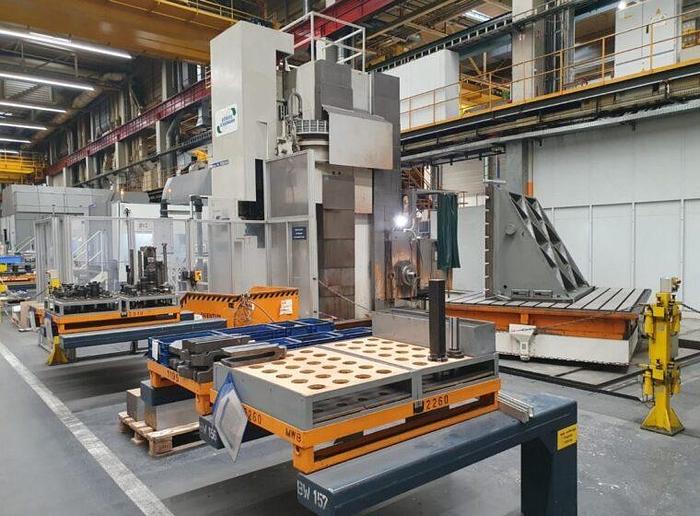

SCHARMANN HEAVYCUT 3.3 TDV 6 CNC RAM-FLOOR TYPE BORING & MILLING MACHINE
SCHARMANN HEAVYCUT 3.3 TDV 6 CNC RAM-FLOOR TYPE BORING & MILLING MACHINE
or
Call 770-509-0744
Description

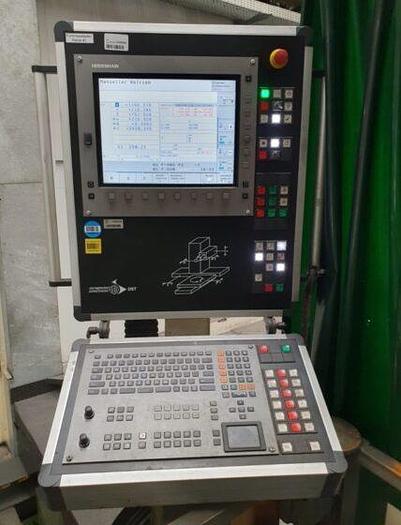

Heidenhain iTNC 530 CNC Control
60 Position Automatic Tool Changer

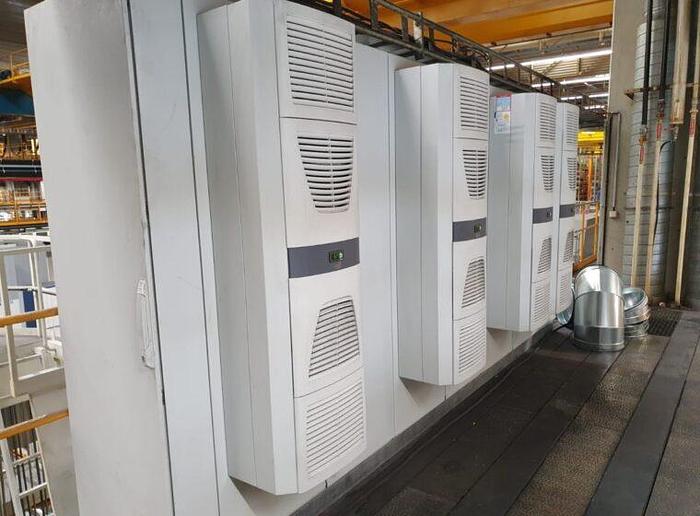

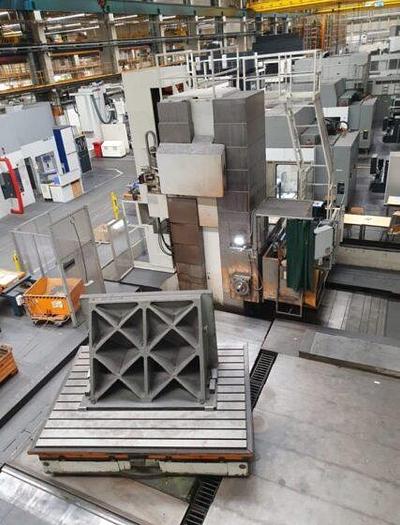

NC Turn Table 3,500 x 2,500 mm – 50 Ton Capacity Cooling Unit Chip Conveyor Angle Clamping Plate 2,400 x 1,700 x 1,200 mm
Specifications
| Manufacturer | Scharmann |
| Model | Heavycut 3.3 TDV 6 |
| Year | 1989 |
| Condition | Used |
| Stock Number | 10984 |
| Retrofit | 2012 |
| Spindle diameter | 180 mm |
| Spindle speeds | 1,600 rpm |
| X axis travel | 5,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,000 mm |
| Table dimensions | 3,500 x 2,500 mm |
| Table capacity | 50 Ton |
| W axis travel | 1,000 mm |
| Ram dimensions | 425 x 425 mm |
| Spindle taper | ISO 50 |
| Feed stepless | 0 - 10,000 mm/min |
| Table rotation | 360° |
| Power capacity | 90 kW |
| Rapid traverse | 10 m/min |
| Table travel | 2,500 mm |
| Table height | 1,450 mm |
| Machine weight, approximate | 125 Ton |
| Machine dimensions, approximate | 11 x 12 x 6.3 m |
