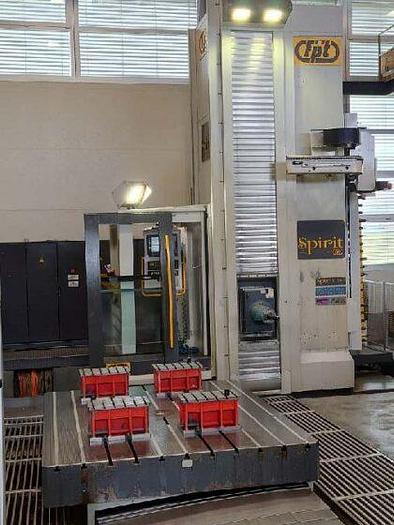

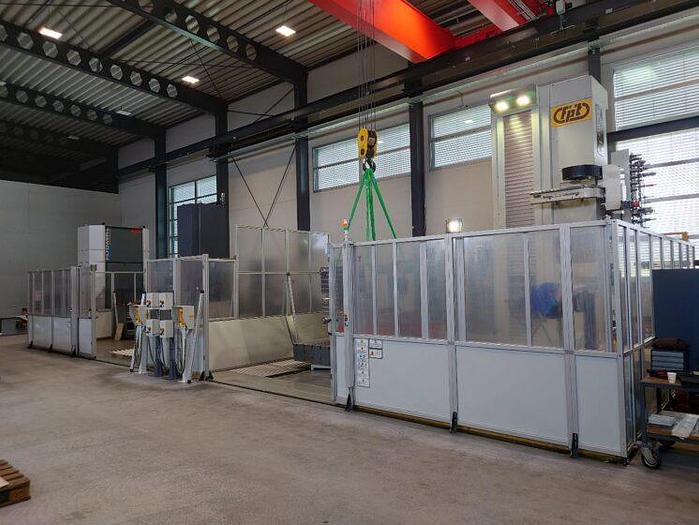

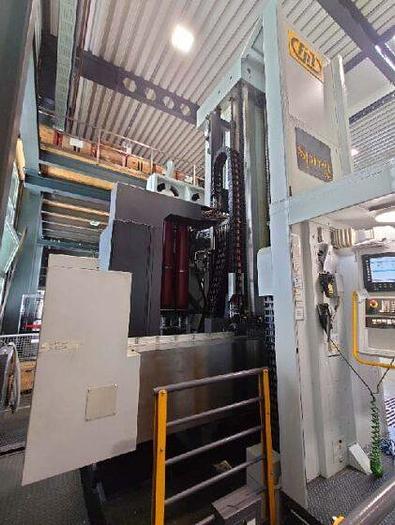

FPT Spirit 140 CNC Milling & Boring Machine with Two Rotary Tables

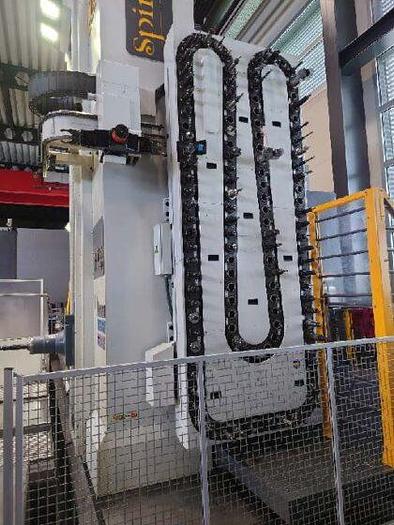

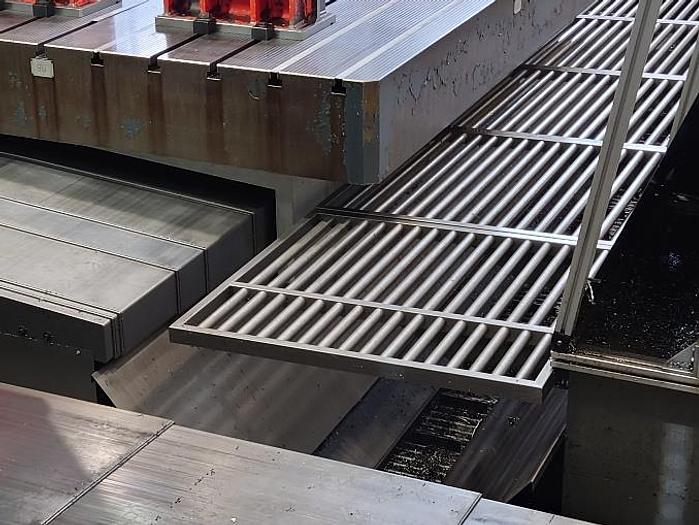

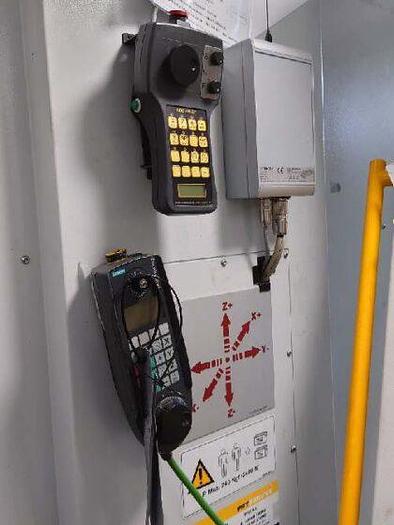

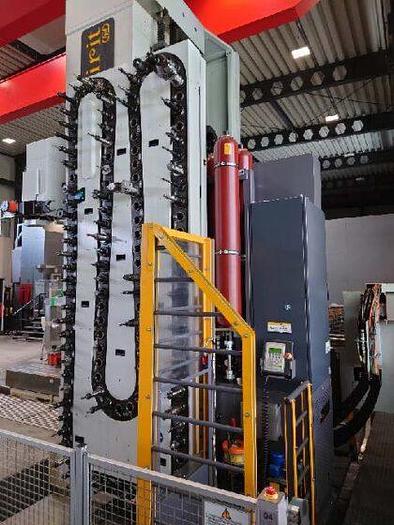

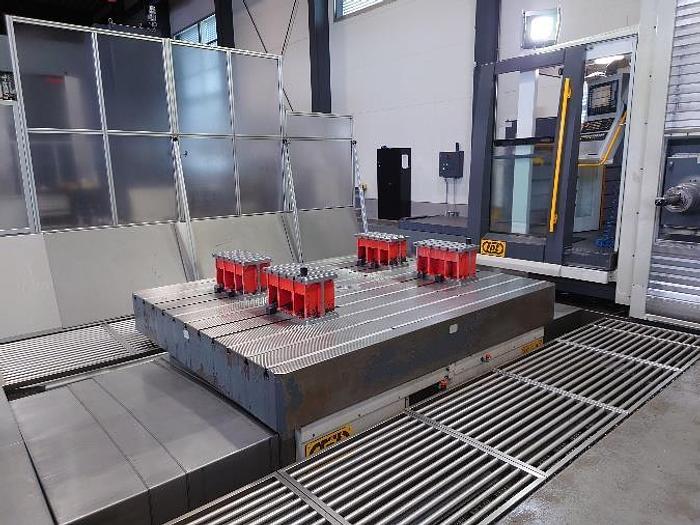

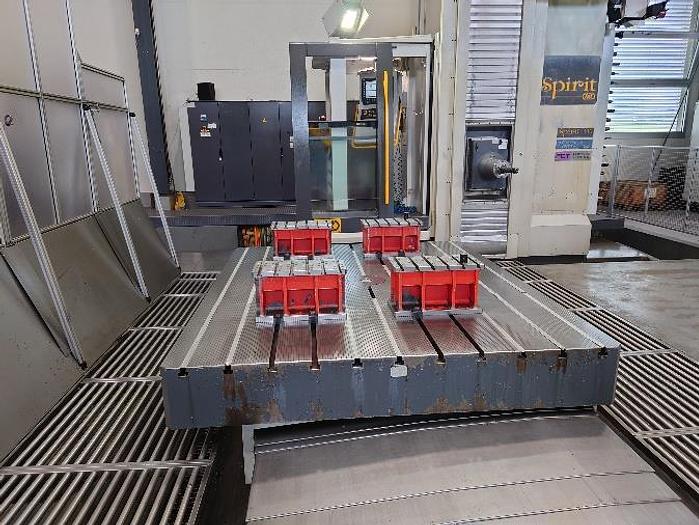

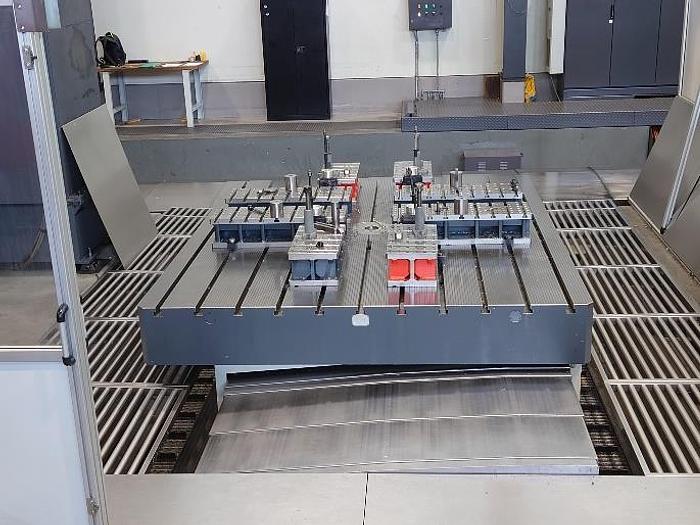

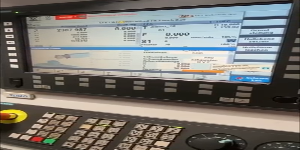

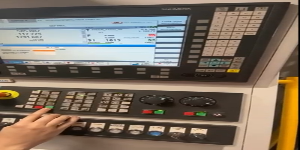

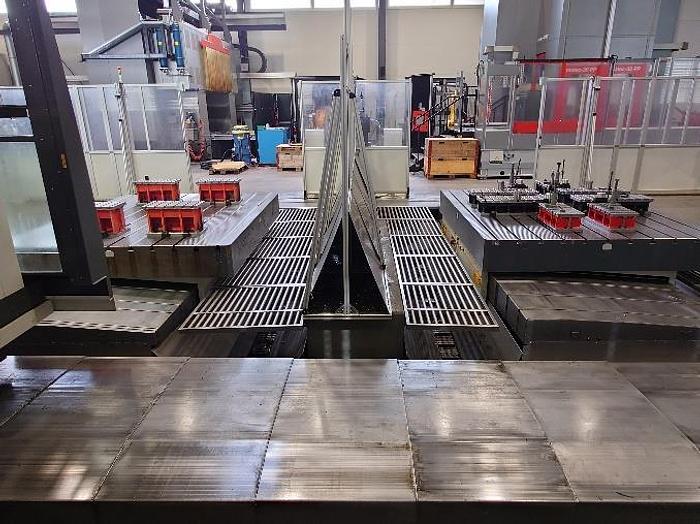

Siemens 840D SL CNC Control NCU 730.3 with 3 MB User Memory PCU 50.50-P Proc. Intel Core I5-520E Dual Core/2.4 GHz 8GB Ram 40 GB Hard Drive, Integrated 2D Graphics Hand Wheel with Radio Transmission HBG 800-DP Hydrostatic Guides Two (2) TRT 30 Hydrostatic Rotary Translation Tables 120 Position Automatic Tool Changer – ISO 50 Chain tool magazine, on the right side of the stand mounted, with arm to Changing the tool in the vertical as well as in the horizontal spindle position Max. diameter per tool at adjacent 230 mm free places Max. diameter per tool at adjacent 125 mm occupied side seats Max. length per tool 400 mm Max. load per tool holder in the chain 20 kg Max. tool weight in the whole chain 1,200 kg 4 Position Magazine for Changing Milling Heads 3 Milling Heads TUPCG AAC Infinitely Positionable Universal Head Automatic double swivel universal head The head can both axes steplessly positioned with thousandths resolution The swiveling of the two axes is controlled by the CNC controlled Tool holder ISO 50 Big Plus SELS6 AAC Horizontal Spindle Extension, Long Type, 1:1 Ratio Spindle extension Mod L600 spindle mount ISO 50 Big Plus Internal oil circulation cooling, automatic tool clamping, 1:1 ratio SELS4 AAC Horizontal Spindle Extension 1:1 ratio Spindle extension Mod L400 spindle mount ISO 50 Internal oil circulation cooling, automatic tool clamping, 1:1 ratio External Coolant Supply Flow Rate 28 l/min Max Pressure 4 Bar Internal Coolant Supply Flow Rate 28 l/min Max Pressure 40 bar Contents of the Container 1,200 Liter Four (4) Chip Conveyors – Each on the Side of the Rotary Translation Table Chip Conveyor with Left/Right Side Ejection ETD 100 Accessories Tool Holders Approximate 170 Tool Holders – ISO 50 DIN 69871 (assorted)
