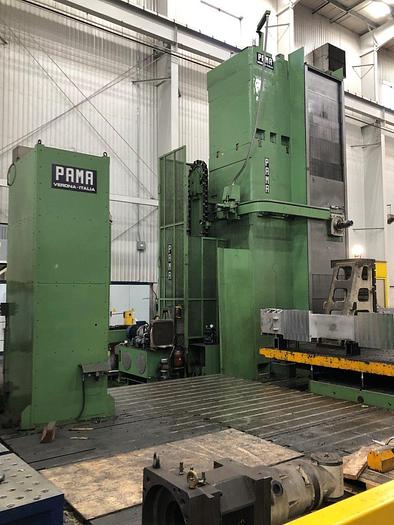

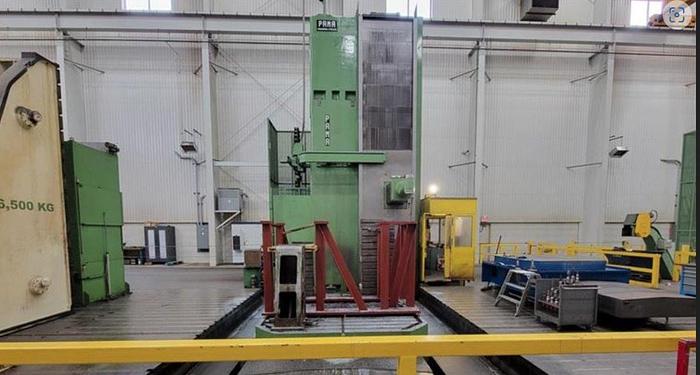

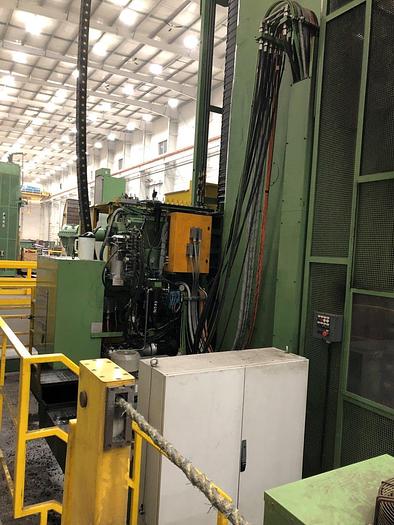

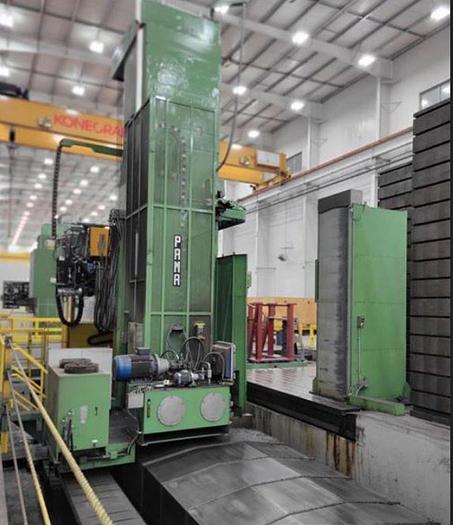

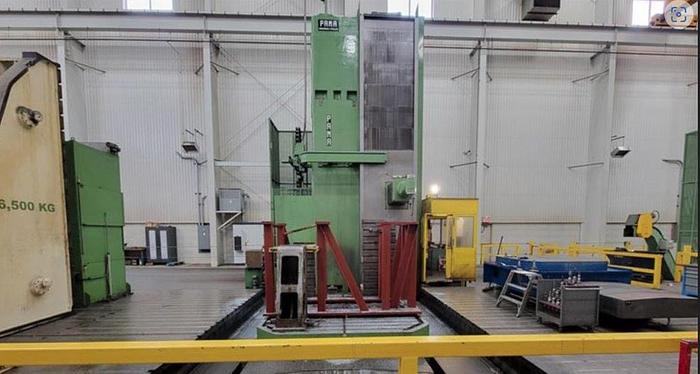

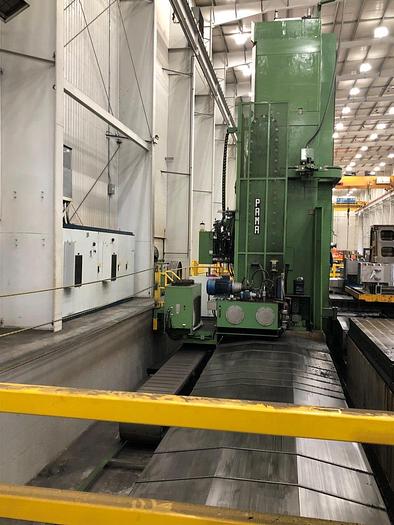

Pama ACC 200/530 CNC Floor/Ram Type Heavy Duty Horizontal Boring Machine

Pama ACC 200/530 CNC Floor/Ram Type Heavy Duty Horizontal Boring Machine

orCall 770-509-0744

Description

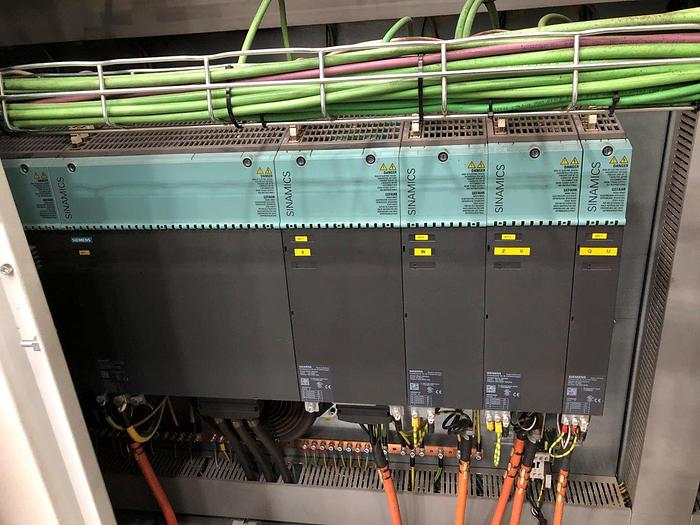

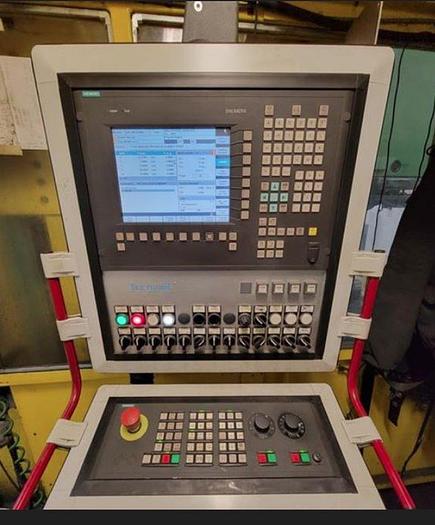

Siemens 840-D SL CNC Control

Fully Rebuilt & Retrofitted in 2015

80 Position Automatic Tool Changer

3 Station Automatic Attachment Changer

Right Angle Head With 5-Degree Indexing

Straight Nose Speed Multiplier Up To 3000 rpm

Coolant Thru Spindle

The Main Head Balance is with Hydraulic cylinder and accumulator

The Machine Is All Hydrostatic Axis

The Machine has a Totem For Automatic Pick Up Of The Heads One Vertical Milling Head indexable

One D’Andrea CNC Facing Head UT- 5-800-S

One Speed Head Multiplayer Ratio 3:1

One Ram Cover with Outside coolant nozzle .

U Axis D’Andrea CNC Head UT-5-800S 400 mm /15.748”

Q Axis ATC Tool Carriage 20.000 mm / 787.400” Travel Speed

Rotary Table 3500 x 3500 mm x 2000 Travel x 100 Ton

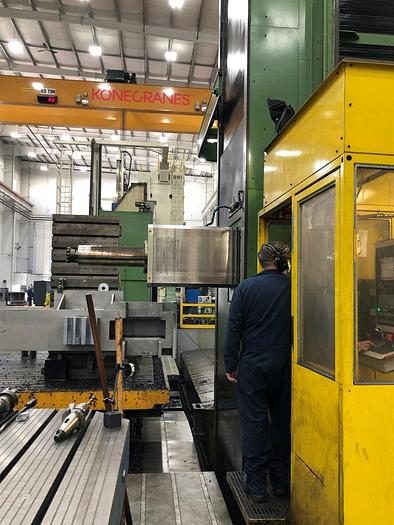

Operator Platform

Specifications

ManufacturerPama
ModelACC 200/530
ConditionUsed
Stock Number10880
Spindle diameter200 mm
Spindle speeds1,200 rpm
X axis travel13,500 mm
Y axis travel6,000 mm
Z axis travel1,500 mm
Table dimensions3,500 x 3,500 mm
W axis travel900 mm
Ram dimension530 x 600 mm
Spindle gear change4
Spindle diameter - milling250 mm
Spindle taperISO 50
Spindle motor power75 kW
Rapid traverse10,000 mm/min
Feeds6,000 mm/min
V axis table infeeding travel2,000 mm
B axis360 Deg. @ 1.5 rpm
Table load capacity - balance on center100 Ton
