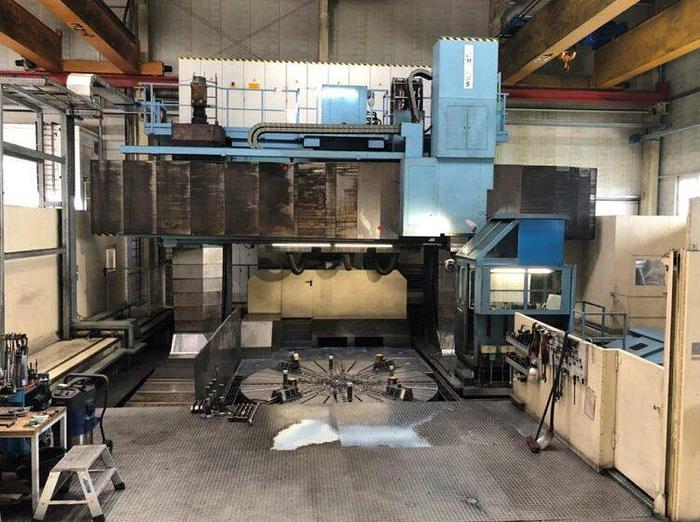

Schiess Vertimaster VMG 4 CNC Double Column Movable Columns Vertical Boring & Turning Machine
![Used Schiess Vertimaster VMG 4 CNC Double Column Movable Columns Vertical Boring & Turning Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/3b6569a1dd4c4d0e9b972538de747954/large-SchiessVertimaster-VMG-4-a1-747x560.jpg)
Schiess Vertimaster VMG 4 CNC Double Column Movable Columns Vertical Boring & Turning Machine
orCall 770-509-0744
Description

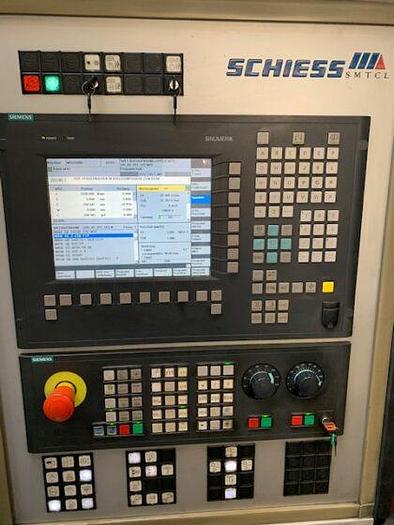

Siemens 840D CNC Control System Y-Axis Gantry Travel Movable Columns Live Spindle C-Axis 80 Position Automatic Tool Changer (AAC) Automatic Attachment Changer for 6 Milling Heads Boring And Milling Head (Master Head – Principle Straight Drilling & Milling Head GB-1B Renishaw RBP 60 Probing System Hand Held Terminal Teleservice Internal & External Coolant Operator Control Cabin Chip Conveyor Working Area Machining Diameter 5,000 mm Workpiece Height-Table Spindle Nose of Head 3000mm
Specifications
Manufacturer | Schiess |
Model | Vertimaster VMG 4 |
Year | 2009 |
Condition | Used |
Stock Number | 11019 |
Table diameter | 4,000 mm |
Swing | 5,000 mm |
Turning height | 3,000 mm |
Table capacity | 50 Ton |
Table turn speed | 120 rpm |
Gantry travel | 5,000 mm |
Z axis travel | 2,000 mm |
Ram size | 420 x 340 mm |
Number of claw boxes | 8 Piece |
Clamping force of each case | 12000 N |
Table turn speed milling | 0 - 6 rpm |
Max torque | 100 KnM |
Main drive power | AC 110 kW |
Max permissible cutting for turning | 60 kN |
X,Z axis rapid traverse | 0 - 16,000 mm/min |
Feed speed of the gantry | 0 - 16,000 mm/min |
