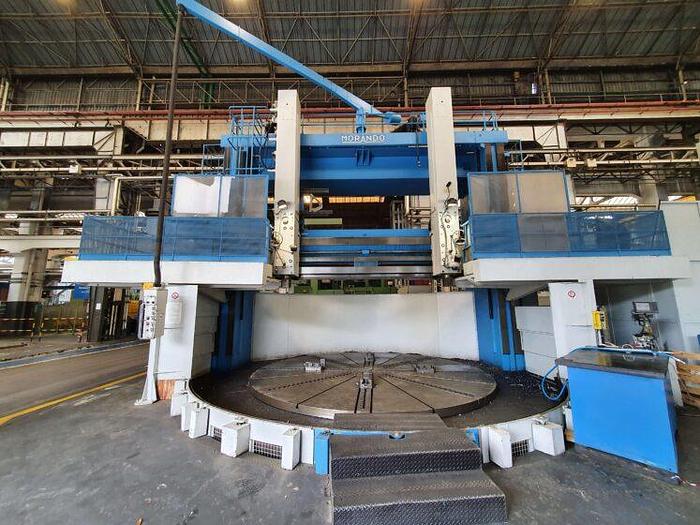

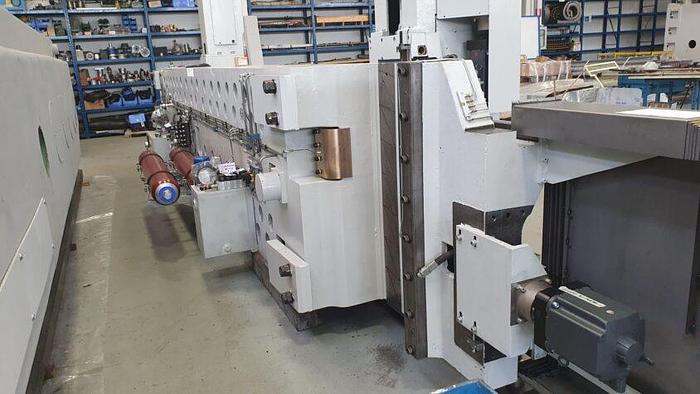

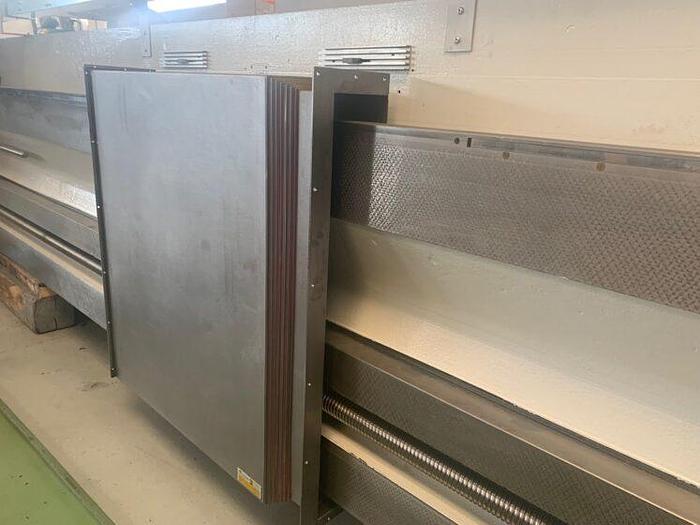

Morando KR 50/65 CNC Double Column Vertical Boring Machine
Morando KR 50/65 CNC Double Column Vertical Boring Machine
or
Call 770-509-0744
Description

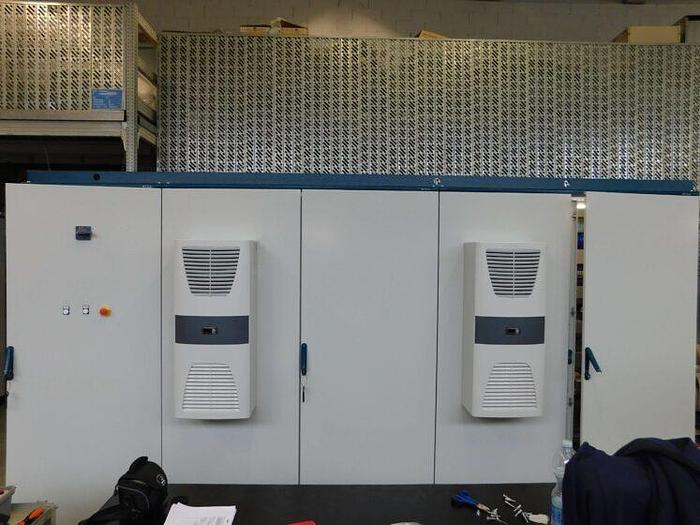

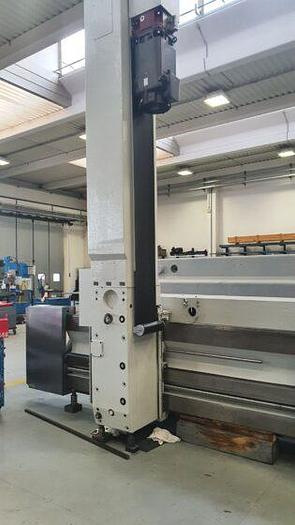

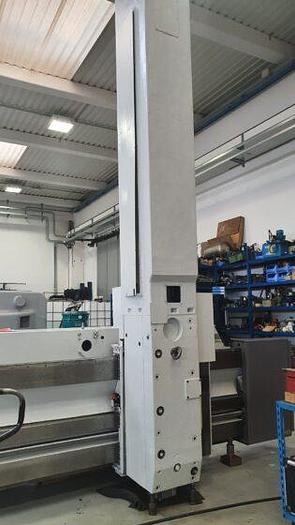

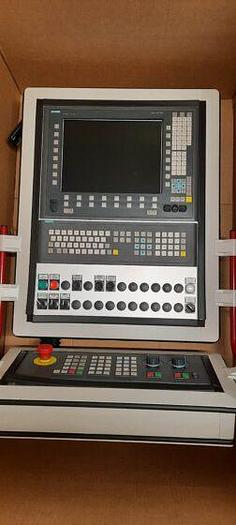

Siemens 840 SL CNC Control SIEMENS SIEMICS engine package HEIDENHAIN optical stripes Installed power: about 120/130 kW (2) Two Vertical Ram
Table Turning (3 Speed Ranges) 0 - 7 rpm / 7-20 rpm / 20 - 60 rpm 1 RAM with Turning Tool Holder 1 RAM with Live Spindle ISO 50 Live Spindle – ISO 50 Tool Table C-Axis Internal/External Coolant Passage
Specifications
| Manufacturer | Morando |
| Model | KR 50/65 |
| Condition | Used |
| Stock Number | 10939 |
| Table diameter | 4,000 mm |
| Swing | 6,500 mm |
| Turning height | 4,000 mm |
| Table capacity | 100 Ton |
| Table turn speed | 60 rpm |
| Live spindle speed | 0 - 2,000 rpm |
| Z axis travel | 2,000 mm |
| X axis travel | 3,400 mm |
| W axis travel | 3,800 mm |
| Max passage under crossbar | 4,100 mm |
| X1 axis travel | 3,400 mm |
| Z1 axis ram travel | 2,000 mm |
| Live spindle taper | ISO 50 |
| Table motor power | 80 kW |
| Live spindle motor power | 28 kW |
