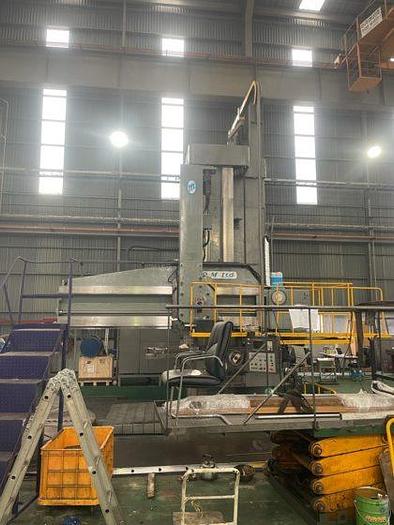

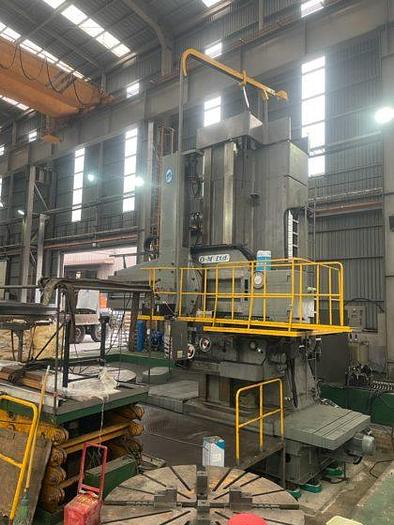

OM 30-70 CNC Vertical Turning & Boring Machine
OM 30-70 CNC Vertical Turning & Boring Machine
or
Call 770-509-0744
Description
Fanuc OI CNC Control 3,000 mm T-Slotted Table with 4 Top-Jaws
Table Turn Speed Range 0.3 - 40 rpm Full Pendant Control Vertical Ram Side Head 45 kW Main Motor
Specifications
| Manufacturer | OM |
| Model | 30-70 |
| Condition | Used |
| Stock Number | 10746 |
| Retrofit | 2019 |
| Table diameter | 3,000 mm |
| Swing | 7,000 mm |
| Turning height | 2,850 mm |
| Table capacity | 58.8 Ton |
| Column travel | 1,800 mm |
| Table turn speed | 40 rpm |
| Maximum height under cross rail | 3,155 mm |
| Swing to center | 5,000 mm |
| Z axis travel | 1,500 mm |
| X axis travel | 2,550 mm |
| W axis travel | 2,000 mm |
| Ram swivel | ± 30 Degrees |
| Side head stroke | 610 mm |
| Feeds, ram & side head | 15 mm/min |
| Maximum torque | 38,974 m/kg |
| Floor space | 10,160 x 7,620 mm |
| Maximum height in operation | 7,620 mm |
| Weight | 69,173 kg |
