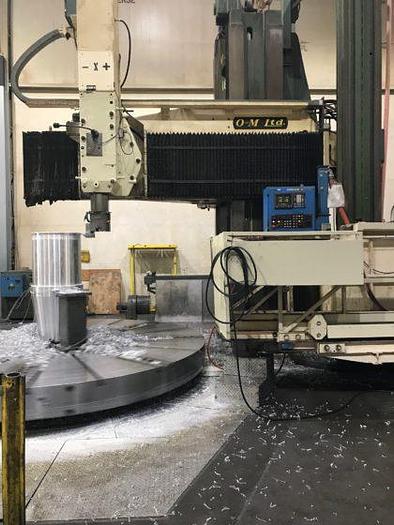

OM MTS 40/70 Single Column Vertical Boring & Turning Machine
![Used OM MTS 40/70 Single Column Vertical Boring & Turning Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/1badff66f691d21e634fe0622c68104b/large-IMG_1717-420x560.jpg)
OM MTS 40/70 Single Column Vertical Boring & Turning Machine
orCall 770-509-0744
Description

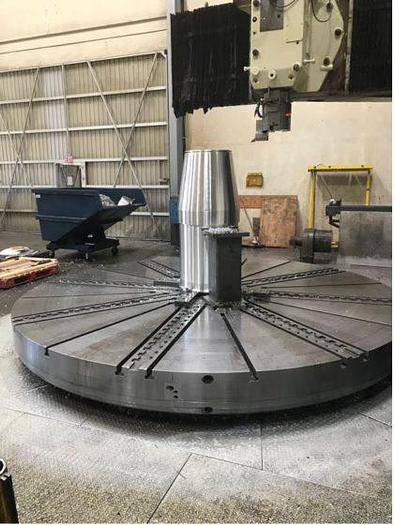

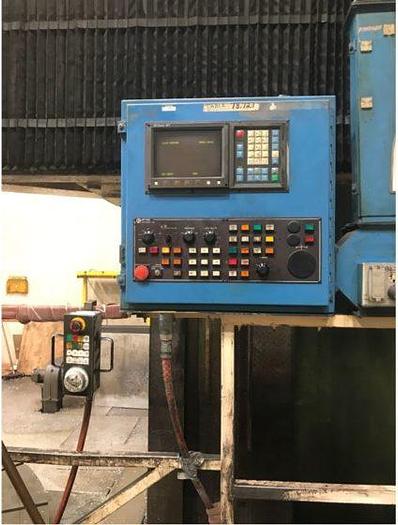

Fanuc 0T CNC Control Fanuc Axis Drives and Motors Travelling Column Design 100 Spindle Drive Unit 158″ T-Slotted Face Plate with 4 Top Jaws 204″ Optional Face Plate Ball Screws 2 Range Variable Speed Spindle Spindle Motor Ram Head with 5 Position Programmable Turret Head Steel Way Covers, Coolant System
Specifications
Manufacturer | OM |
Model | MTS 40/70 |
Condition | Used |
Stock Number | 10723 |
Table diameter | 4,000 mm |
Swing | 7,000 mm |
Turning height | 3,000 mm |
Table capacity | 80 Ton |
Table turn speed | 30 rpm |
Column travel | 1,371 mm |
Optional face plate | 5,182 mm |
Height under rail | 3,800 mm |
Z axis travel | 1,524 mm |
X axis travel | 2,845 mm |
W axis travel | 2,185 mm |
Ram size | 230 mm |
Motor power | 80 kW |
Ram traverse rate | 7,620 mm/min |
Rapid traverse of column | 7,747 mm/min |
Machine dimensions | 6,400 x 6,324 mm |
Machine height | 5,867 mm |
Machine weight | 86 Ton |
