HNK VTC 40/50S CNC Boring & Turning Machine with Live Spindle & Table C-Axis
No longer available
HNK VTC 40/50S CNC Boring & Turning Machine with Live Spindle & Table C-Axis
Description

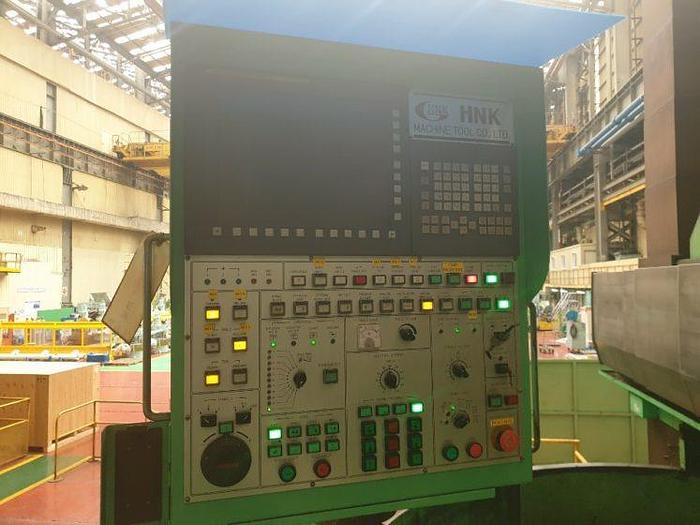

Fanuc 32iA Controller 12 Position Automatic Tool Changer Live Spindle Table C-Axis
Table Turn Speed (2 step) 1 - 50 rpm Table lubrication cooling system Crossrail protection steel covers Column protection steel covers Hydraulic power unit Turning tool holder Hinge type Chip conveyor Operator platform Scale feedback for X, Z and C-axes External coolant system Angle head
Specifications
| Manufacturer | HNK |
| Model | VTC 40/50S |
| Year | 2010 |
| Condition | Used |
| Stock Number | 10699 |

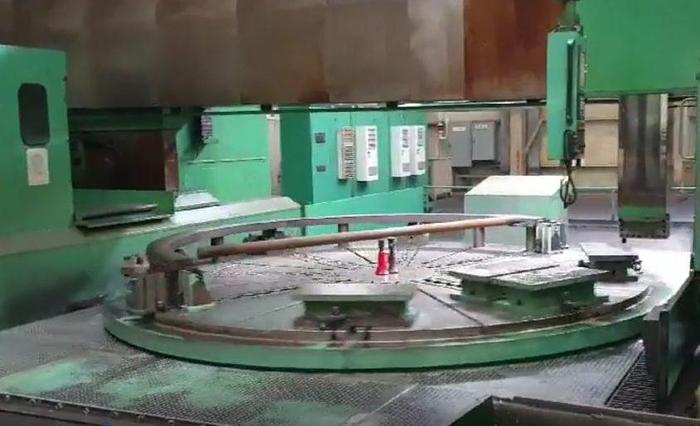

| Table diameter | 4,000 mm |
| Swing | 5,000 mm |
| Turning height | 4,000 mm |
| Table capacity | 50 Ton |
| Table turn speed | 50 rpm |
| Live spindle speed | 1,500 rpm |
| Z axis travel | 2,000 mm |
| X axis travel | -2,500 ~ + 2,500 mm |
| W axis travel | 2,500 (250 mm x 10 Steps) |
| Rapid feed of ram head (x & z axis) | 8,000 mm/min |
| Feed rate of ram head (x & z axis) | 1 - 3,000 mm/min |
| Ram size | 350 x 350 mm |
| Milling spindle taper | ISO 50 |
| Tool shank size | 50 x 50 mm |
| Main motor for table drive | DC 96 kW |
| Live milling spindle motor | AC 30 / 37 kW |
