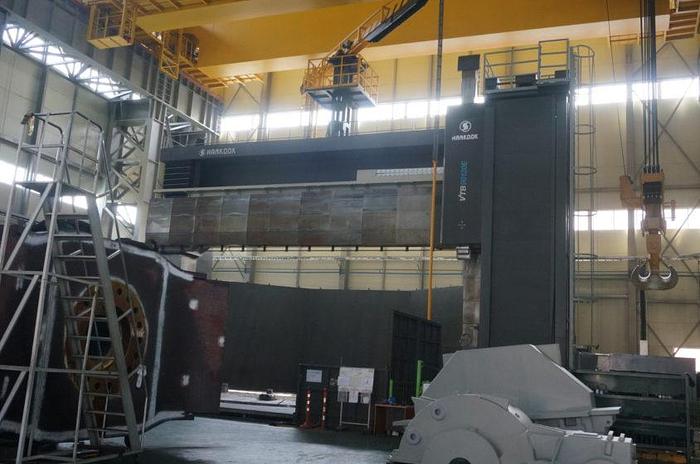

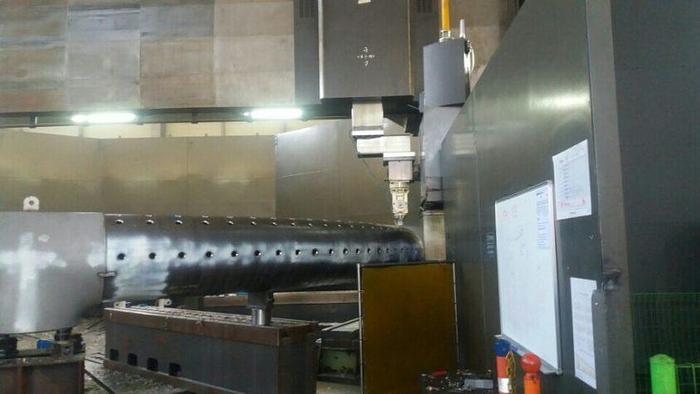

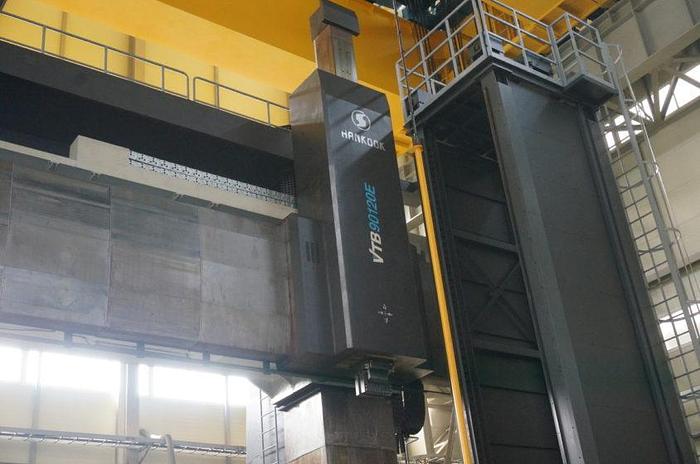

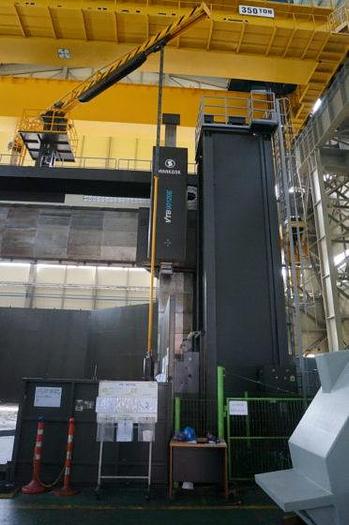

Hankook VTB 90/120 CNC Heavy Duty Vertical Turning & Boring Machine
Hankook VTB 90/120 CNC Heavy Duty Vertical Turning & Boring Machine
or
Call 770-509-0744
Description
Fanuc-31iTb Control System
Table Speed (Auto 2 Step) Low 0.2 - 4.2 rpm High 0.6 - 16 rpm Square Tool Holder 2 x Boring Tool Holders Manual Universal Milling Head With Spindle Drive Motor Scale Feedback for X,Z and W-Axis 2 Chip Conveyors Coolant Tank Elevator For Operator
Specifications
| Manufacturer | Hankook |
| Model | VTB 90/120 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 10447 |
| Table diameter | 9,000 mm |
| Swing | 12,000 mm |
| Turning height | 6,000 mm |
| Table capacity | 400 Ton |
| Table turn speed | 16 rpm |
| Z axis travel | 6,915 mm |
| X axis travel | 3,000 mm |
| W axis travel | 4,500 mm |
| Square ram cross section | 500 x 500 mm |
| Tool shank size | 50 x 50 mm |
| Main spindle motor | AC 100 kW x 2 Each |
| Number of table speed range | Auto 2 Step |
| Maximum torque | 1,200,000 Nm |
| Maximum cutting force | 16,000 kgf |
| X,Z axis cutting feed | Max 6,000 mm |
| X,Z rapid traverse | 6,000 mm/min |
| W axis rapid traverse | 1,000 mm/min |
| X axis ac servo | 16 kW |
| Z axis ac servo | 14 kW |
| W axis ac servo | 14 kW x 2 |
| Machine height | 17,500 mm |
| Floor space (w x l) | 17,000 x 14,000 mm |
| Machine weight | 600 ton |
