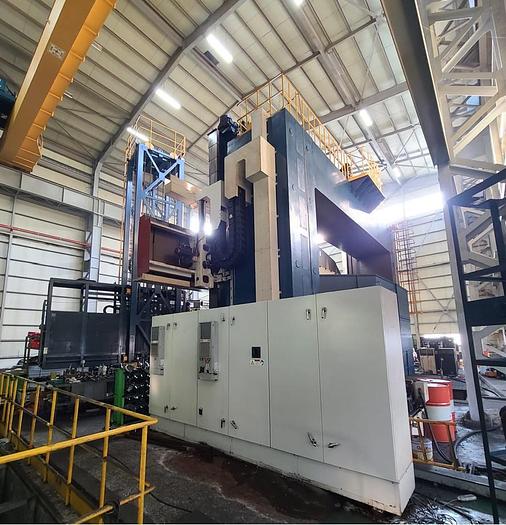

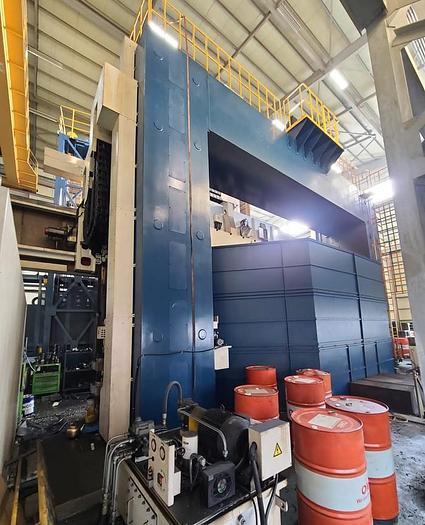

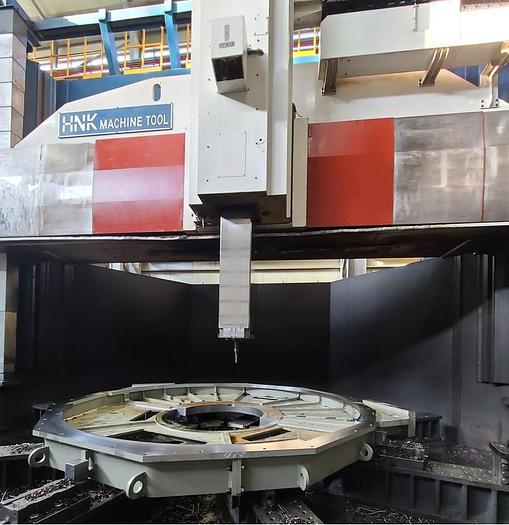

HNK VTC 50/85 CNC Heavy Duty Double Column Vertical Boring & Turning Machine with Live Spindle & Table C-Axis
HNK VTC 50/85 CNC Heavy Duty Double Column Vertical Boring & Turning Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description
Fanuc 31i CNC Control – 104″ TFL LCD – M.P.G. Handle Live Spindle C Axis Machining – Table Indexing 0.001 deg.
Vertical travel of cross rail, W Axis, (250 mm x 13 steps) 3,250 mm
Table Turn Speed (2 step) 50 rpm Right Angle Attachment Grinding Attachment Table Lubrication Cooling System 4-Jaw Independent Manual Chuck Jaws Hydraulic Power Unit Turning Tool Holders x2 Linear Scales – X,Z Axis X Axis Steel Covers External Coolant Operator Lift Chip Conveyor – Hinge Type Chip Bucket
Specifications
| Manufacturer | HNK |
| Model | VTC 50/85 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 10248 |
| Table diameter | 5,000 mm |
| Swing | 8,500 mm |
| Turning height | 5,000 mm |
| Table capacity | 60 Ton |
| Table turn speed | 50 rpm |
| Live milling spindle speed | 1,000 rpm |
| Z axis travel | 2,500 mm |
| X axis travel | -200 - +4,500 mm |
| W axis travel | 3,250 mm |

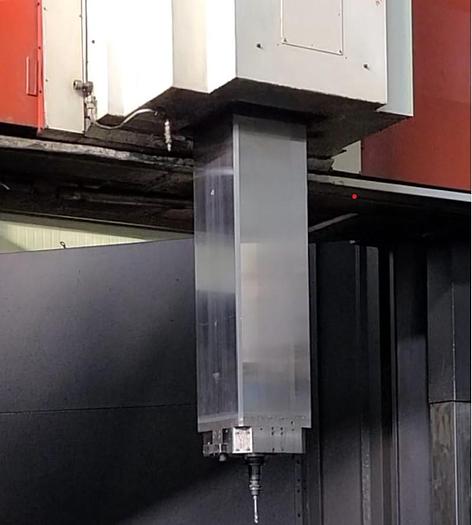

| Ram size | 400 x 400 mm |
| Tool shank size | 60 x 60 mm |
| Milling spindle taper | ISO 50 |
| Table speed for indexing (c axis) | 0 - 0.3 rpm |
| Table indexing control (c axis) | 0.001 degree |
| Rapid feed ram head - x,z axis | 6,000 mm/min |
| Feed rate ram head - x,z axis | 0 - 3,000 mm/min |
| Main motor for table drive (dc) | 121 kW |
| Live milling spindle motor (ac) | 22/26 kW |
