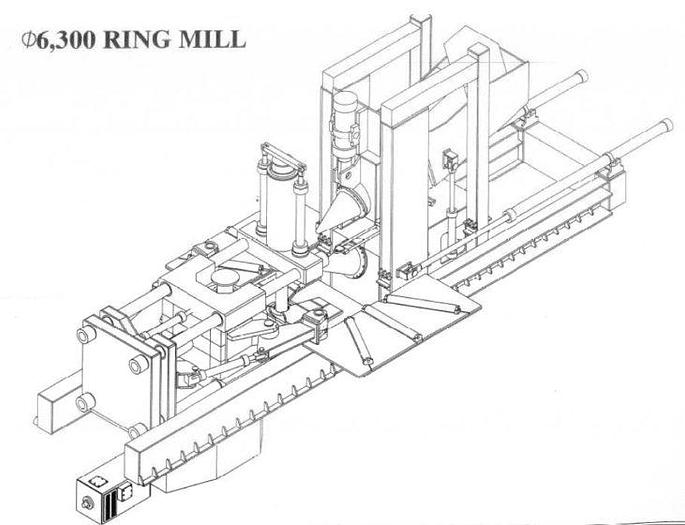

Kaltek 6300 Ring Rolling Mill
Kaltek 6300 Ring Rolling Mill
or
Call 770-509-0744
Specifications
| Manufacturer | Kaltek |
| Model | 6300 |
| Condition | Used |
| Stock Number | 10493 |
| Outside diameter of finished ring | 1,200 - 6,300 mm |
| Height of finished ring | 80 - 1,000 mm |
| Inside diameter of ring blank for mandrel diameter - 300mm | min 320 mm |
| Height of ring blank | max 1,050 mm |
| Ring weight | max approx 12,000 kg |
| Radial rolling force | max 300 Ton |
| Main roll diameter | 1,200 mm |
| Rolling speed | max approx 1.7 m/sec |
| Horizontal stroke of mandrel | 1,000 mm |
| Axial rolling force | 250 Ton |
| Length of taper theoretical | 1,400 mm |
| Taper cone angle | 35 Degree |
| Horizontal stroke of axial roll stand | 5,700 mm |
| Vertical stroke of upper axial roll | 1,050 mm |
| Max distance between the axial roll | 1,120 mm |
| Main roll driving motor | DC 710 kW x 570 Volt |
| Axial roll driving motor | DC 710 kW x 570 Volt |
| Hydraulic main pump motor | 4 Sets - 90 kW x 440 Volt x 60 Hz |
| Cooling circulation motor | 2 Sets - 3.7 kW x 440 Volt x 60 Hz |
| Hydraulic pump | 4 Sets - A4V-180 (Rexroth) |
| Max total flow | 720 Liter/min |
| Grease lubrication unit | 2 Sets |
