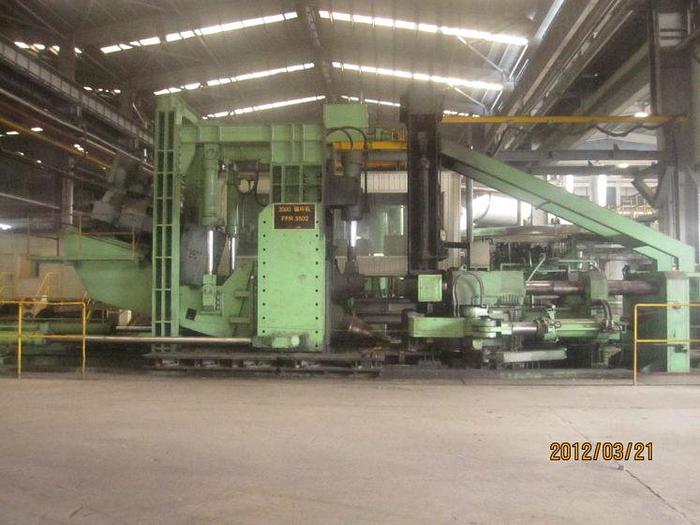

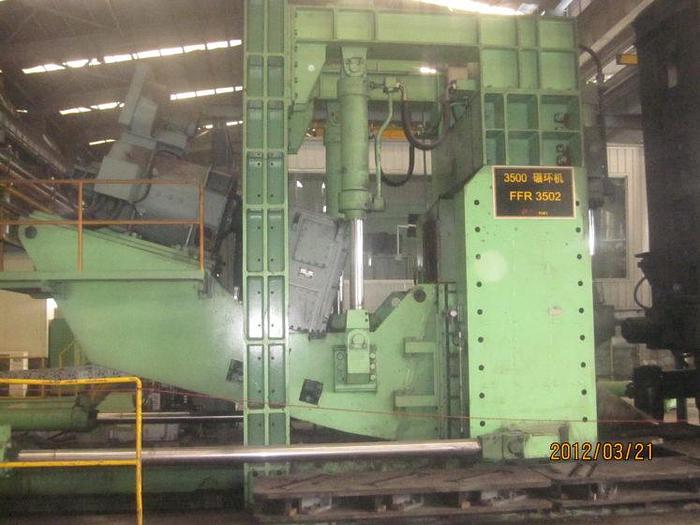

H280/V180 – 3500 Ring Rolling Machine
H280/V180 – 3500 Ring Rolling Machine
or
Call 770-509-0744
Specifications
| Model | H280/V180 |
| Condition | Used |
| Stock Number | 10425 |
| Outside diameter of finished ring | 600 - 3,500 mm |
| Height of finished ring blank for mandrel diameter 2,200 mm | 100 - 800 mm |
| Height of ring blank (min / max) | 240 / 800 mm |
| Ratio of wall thickness to height | 3:1 |
| Ring weight, max | 8,000 kg |
| Rolling force, max | 280 Ton |
| Main roll diameter | 1,000 mm |
| No. of roll revolutions of main roll, max | 29.5 rpm |
| Rolling speed, max | 1.5 / sec |
| Horizontal stroke of mandrel | 600 mm |
| Rolling force | 180 Ton |
| Length of taper rolls theoretical stand | 750 mm |
| Taper cone angle | 32 Degree |
| Horizontal stroke of vertical stand | 3,500 mm |
| Vertical stroke of upper taper roll | 750 mm |
| Maximum distance between the taper rolls | 800 mm |
