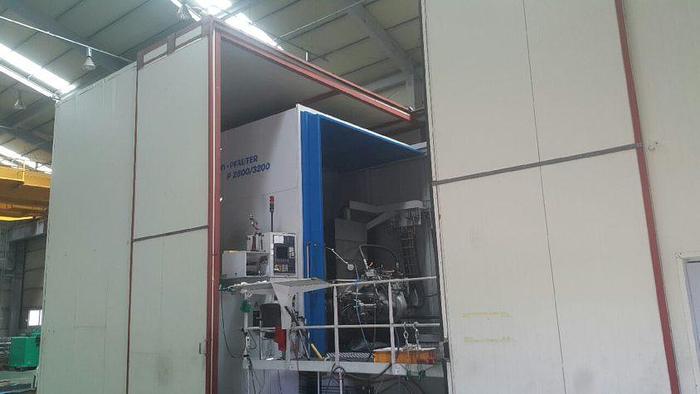

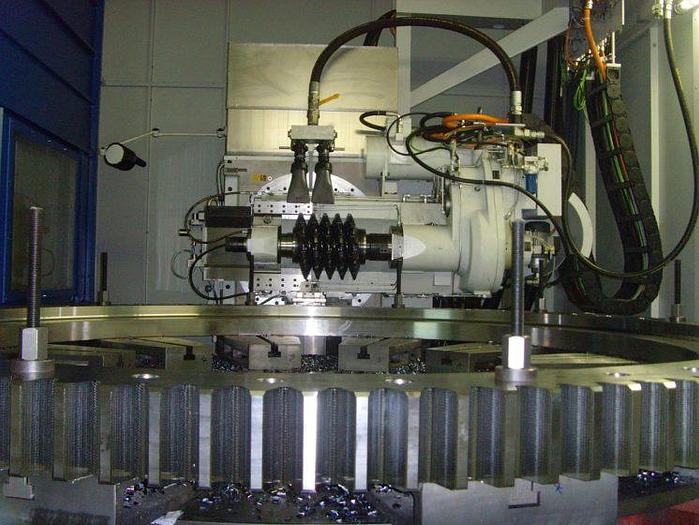

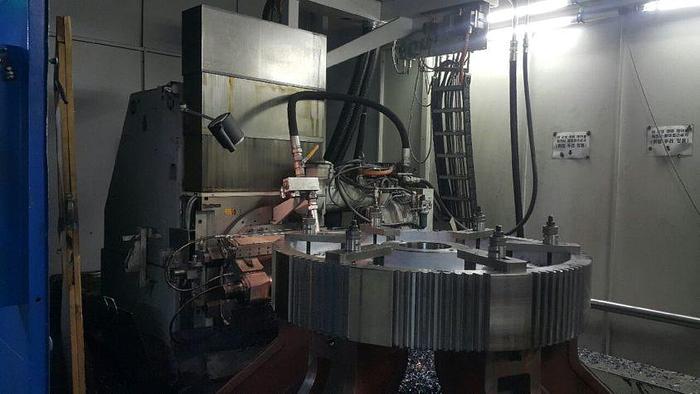

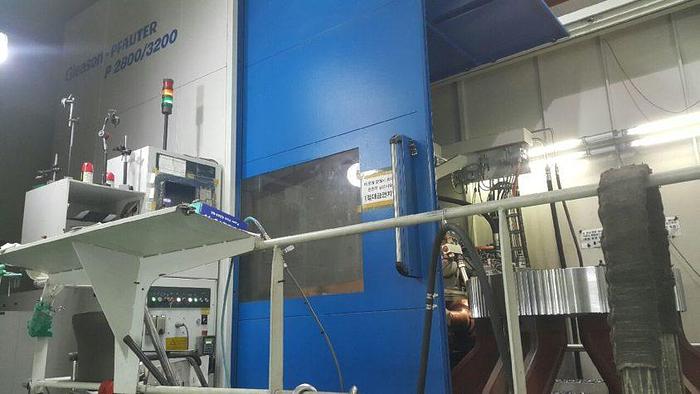

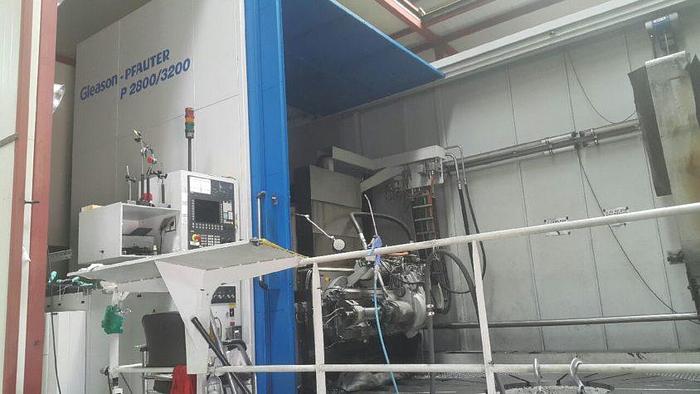

Gleason Pfauter P 2800 / 3200 CNC Gear Hobbing Machine
![Used Gleason Pfauter P 2800 / 3200 CNC Gear Hobbing Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/54211b0e1b3a4ce698ea6fd0a770c2de/large-1-1.jpg)
Gleason Pfauter P 2800 / 3200 CNC Gear Hobbing Machine
orCall 770-509-0744
Description

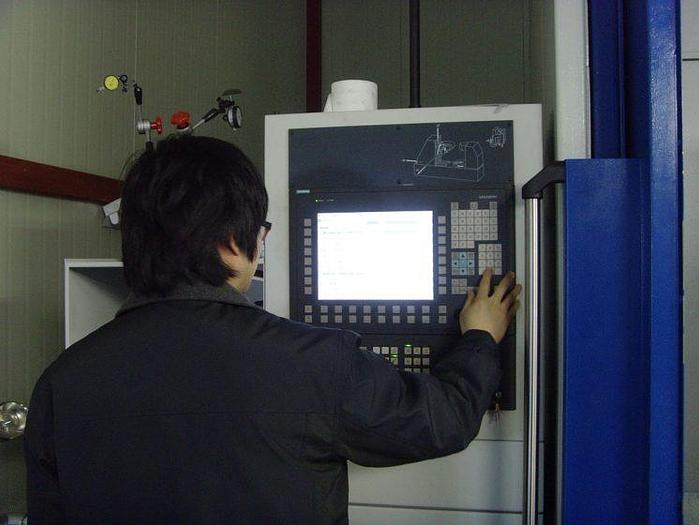

Siemens CNC Control
Specifications
Manufacturer | Gleason Pfauter |
Model | P 2800/3200 |
Year | 2009 |
Condition | Used |
Stock Number | 10609 |
Hobbing | 20 mm |
Form milling | 30 mm |
Max diameter | 3,200 mm |
Max length | 386 mm |
Diameter | 60 / 80 mm |
Max outer diameter | 350 mm |
Mounting taper | HSK-B 160 |
X axis (radial) | 1,200 mm |
Y axis (tangential) | 300 mm |
Z axis (axial) | 1,000 mm |
Direction +a | 30 Degrees |
Direction -a | 15 Degrees |
Tool | 25 - 150 rpm |
Outside diameter | 2,500 mm |
Bore | 800 mm |
Maximum permissible load | 400 kN |
Machine dimensions (l x w x h) | 8.8 x 8.41 x 5.35 m |
Weight of machine, approx. | 56,000 kg |
Operating voltage | 380 V |
Supply voltage | 230 V |
Control voltage | 24 V |
Frequency | 60 Hz |
X & y axes | 3,000 mm/min |
Z axis | 4,000 mm/min |
Worktable | 0 - 4 rpm |
