Inteco 150 Ton Ladle Furnace with Moving Rail Car, Dust Collection, Auto Input system
Inteco 150 Ton Ladle Furnace with Moving Rail Car, Dust Collection, Auto Input system
or
Call 770-509-0744
Description
Ladle Furnace Moving Rail Car for Ladle Dust Collection for LF and ACS Automatic Subsidiary Material Input System for LF 12 MVA Transformer for LF
Specifications
| Manufacturer | Inteco |
| Model | 150ton/CH |
| Year | 2009 |
| Condition | Used |
| Stock Number | 10405 |
| Heat normal | 150 Ton |
| Heat maximal | 160 Ton |
| Heat minimal | 70 Ton |
| Heating rate | Max 4 - 5 Degree C/min |

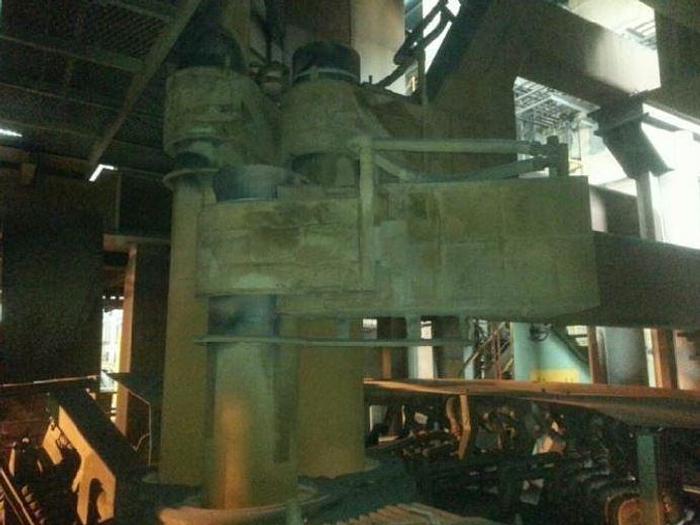

| Premium grade electrode arm type | Cu-Plate |
| Electrode size | D - 11,430 mm |
| Electrode length | 3 x 1,800 mm |
| Nominal power | 20 MVA |
| Maximum electric current | Approx 40 KA |

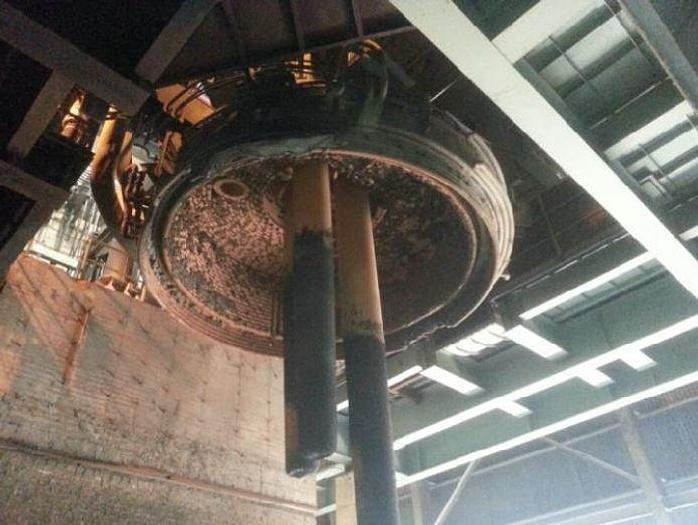

| Roof cooling type | Water Cooled |
| Roof type | Roof with Fume Collection Hood |
| Lifting stroke | 400 mm |

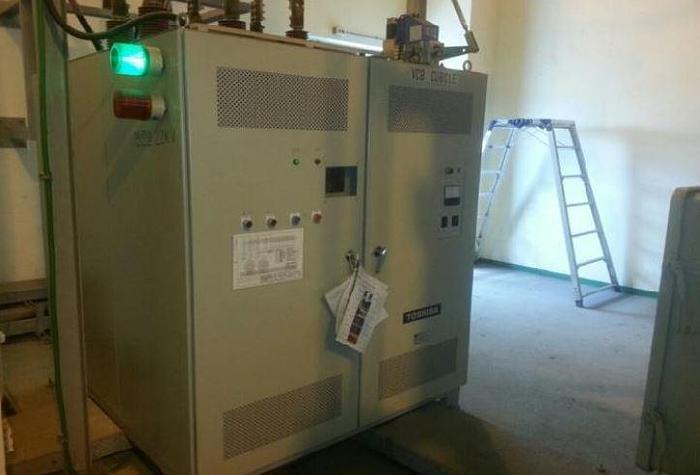

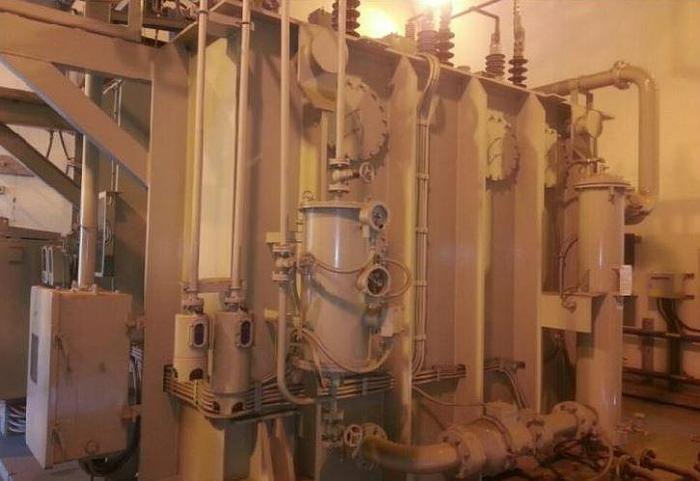

| Transformer | 22900V, 18MVA |

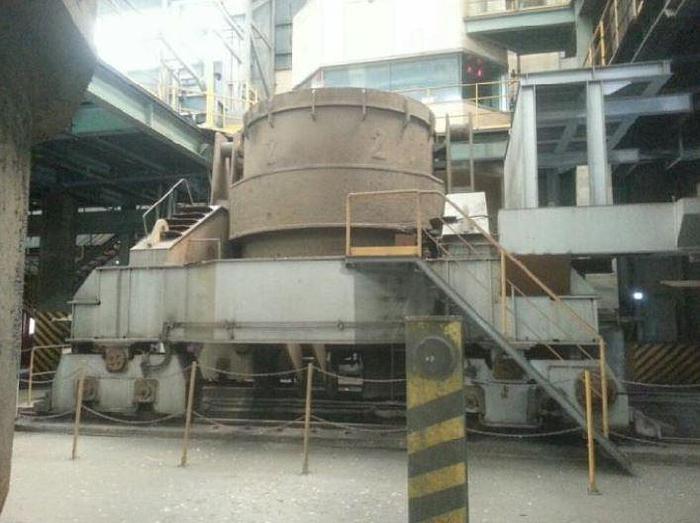

| Maximum load | 250 Ton |
| Travel speed - max | 18 m/min |
| Automatic gas connection | Yes |
| Version with brake | Yes |

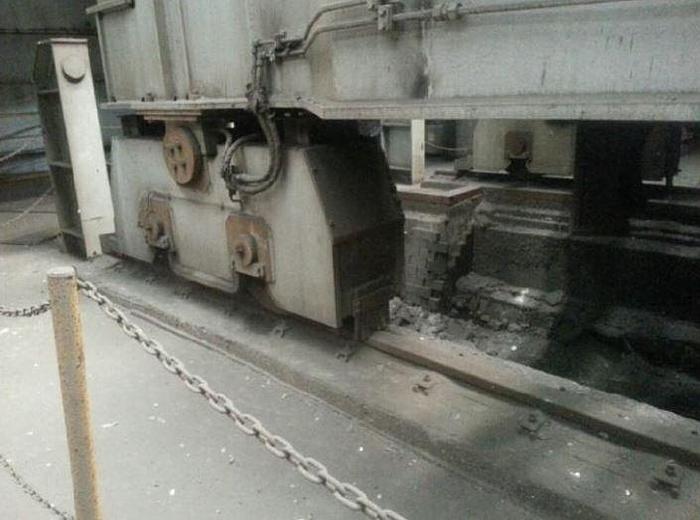

| Rail type | A100 DIN 536 |
| Wheel | 4 Each |
| Traveling | Geared Motor 2 Sets |

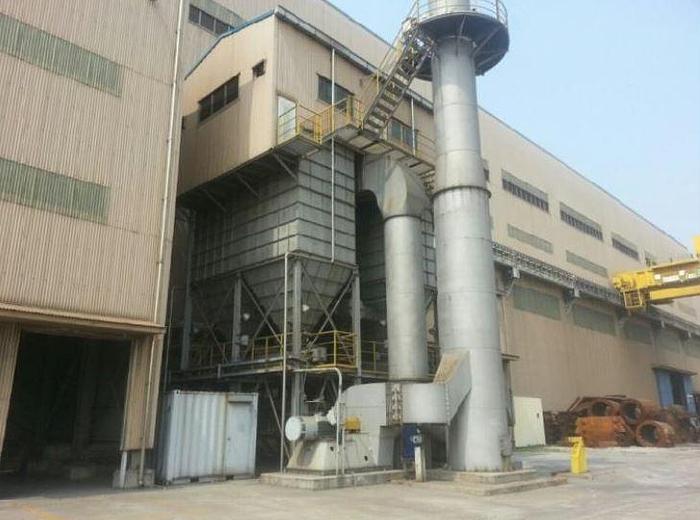

| Maker | DaeJin Teck - Korea |

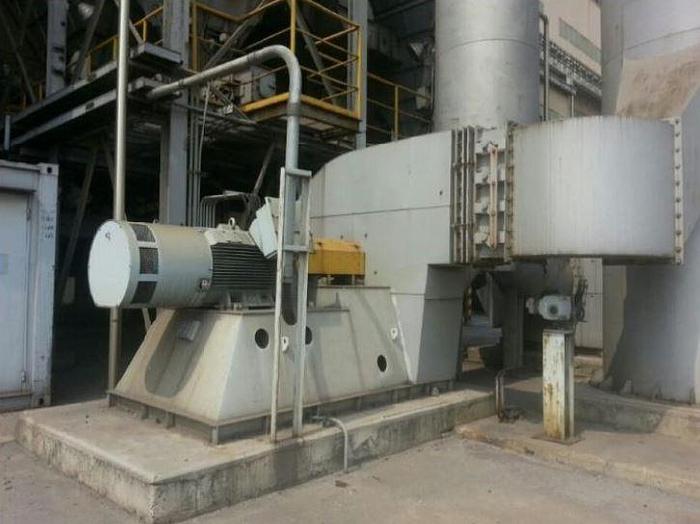

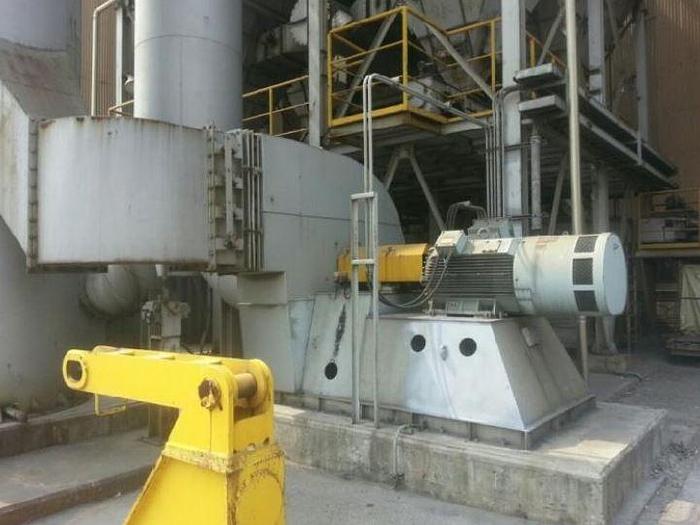

| Type | Hooper and Transfer in Duct |
| Cleaning method | Outside filtering method by high press air jet inside |
| Capacity | 2000 Am 3/min at 160 DegC |
| Arrange | 4 Chamber |
| Filteration area | 1616 m 2 |
| Filteration velocity | 1.23 m/min |
| Motor power | 4p 200 kW x 2 Sets |

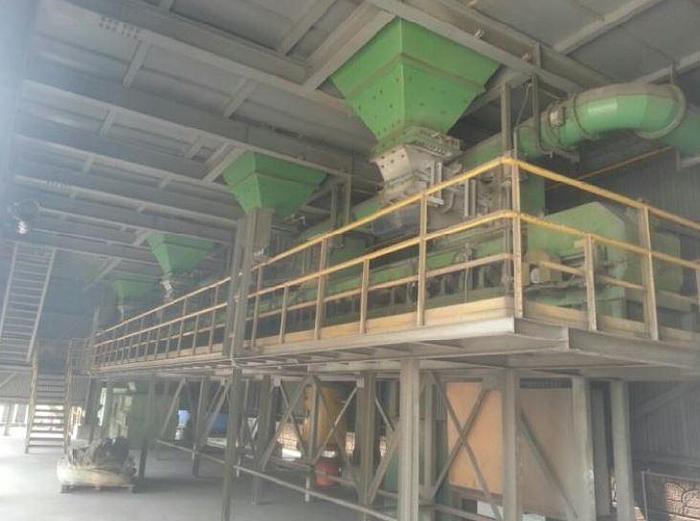

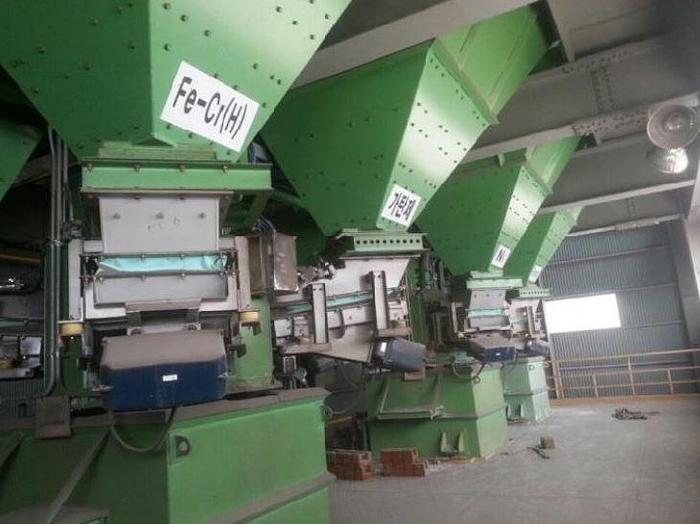

| Storage bin | 15m 3 x 12 each, 30m 3 x 1 each |
| Weight bin | 1.5 m 3 x 4 each |
| Max capacity | 200 Ton/hour |
| Bc #1 conveyor speed | 47.23 m/min |
| Bc #2 conveyor speed | 70 m/min |
| Bc #3 conveyor speed | 60 m/min |
