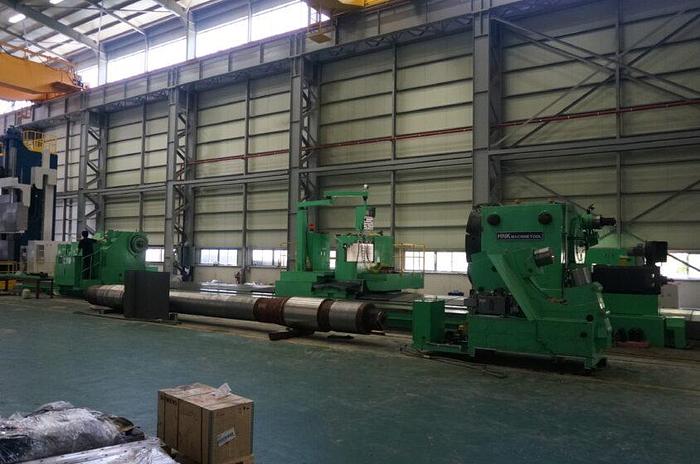

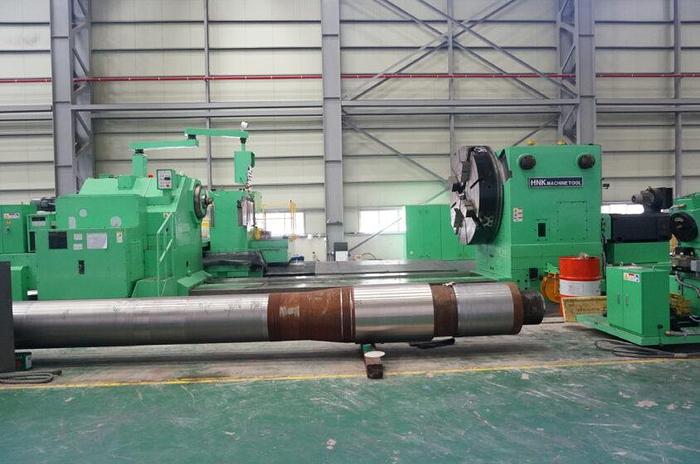

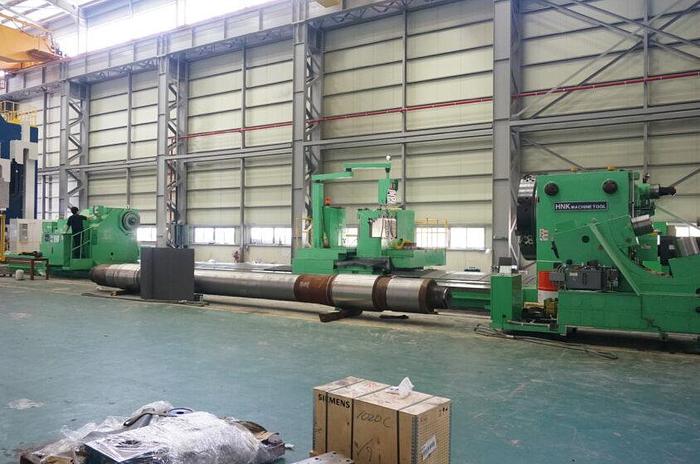

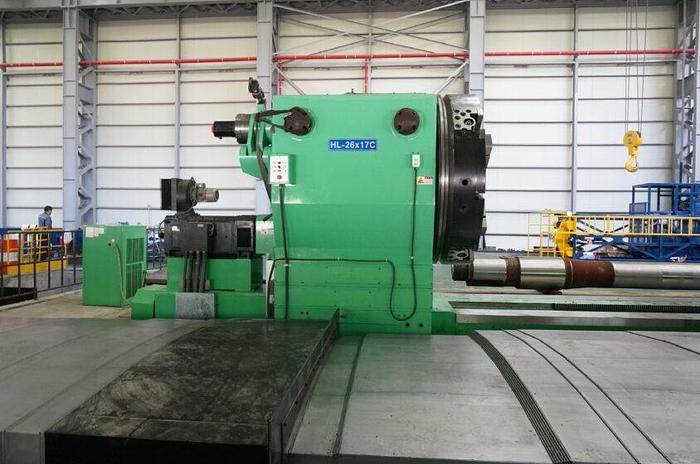

HNK HL-26 x 17C – 100T-2M CNC Heavy-Duty Lathe with Milling – Live Spindle – C-Axis
HNK HL-26 x 17C – 100T-2M CNC Heavy-Duty Lathe with Milling – Live Spindle – C-Axis
or
Call 770-509-0744
Description

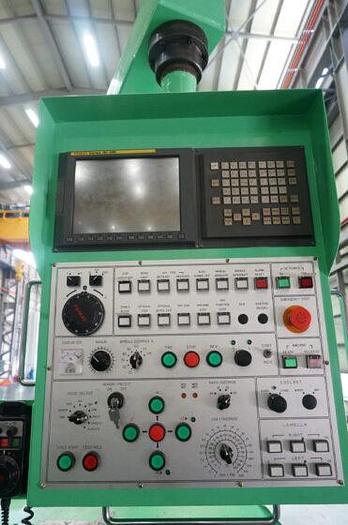

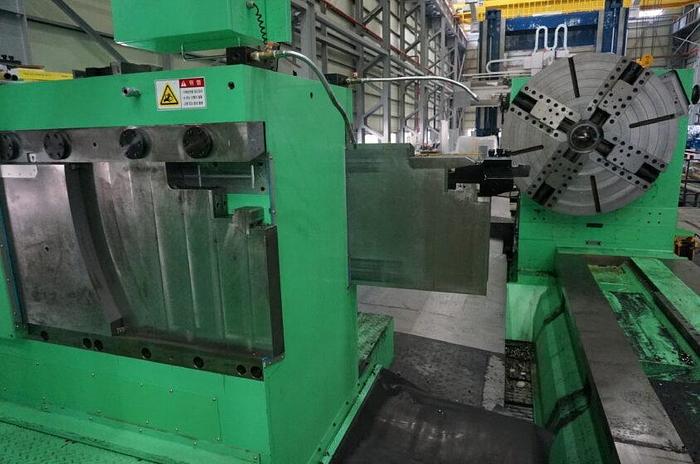

Fanuc 18iMB CNC Control System Tail Stock With Live Spindle Two Carriages Carriage 1 For Turning Carriage 11 For Milling with Thru-Spindle Coolant One Roller Type 2-Point Steady Rest External Coolant System Hydraulic Power Unit Lubrication Unit With Cooler and Heater Oil Cooler For Headstock and Tailstock Operation Panel (pendant type) Work light & Patrol Lamp (3 colors –red/yellow/green) Telescopic Steel Cover Chip Conveyor (Hinge Type) & Chip Bucket
Specifications
| Manufacturer | HNK |
| Model | HL 26 x 17C |
| Year | 2013 |
| Condition | Used |
| Stock Number | 10996 |
| Between centers | 17,000 mm |
| Capacity between centers | 100 Ton |
| Swing over bed | 2,600 mm |
| Tailstock diameter | 650 mm |
| Center height | 1,600 mm |
| Drive output | AC 171 kW |
| Main spindle bearing diameter | 630 mm |
| External clamping range | 400 - 1,650 mm |
| Outside diameter | 2,000 mm |
| 1st step | 0.5 - 8.9 - 26.8 rpm |
| 2nd step | 2.5 - 46 - 152 rpm |
| Max torque of faceplate | 200,000 Nm |
| Angle of flanged center with taper | 1/10 Deg 75 Deg |
| C-axis drive motor power | 4 kW |
| Fine adjustment drive for positioning of faceplate (c-axis) | 0.002 Degree |
| Clamping method of faceplate after indexing | Hydraulic Clamping |
| Number of clamp jaws | 4 |
| Type of power screw | JAKOB MSPD160 |
| Travel of tailstock quill | 150 mm |
| Rapid traverse speed of quill (high/low) | 70 / 35 mm/min |
| Rapid traverse speed of tailstock on bed (high/low) | 2,000 / 1,000 mm/min |
