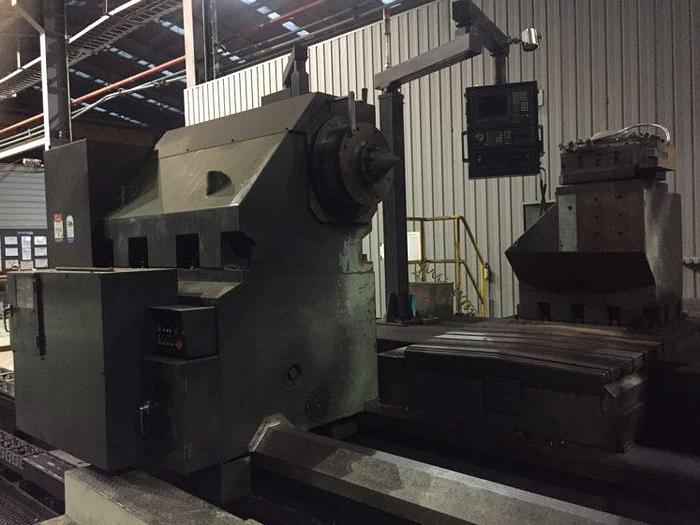

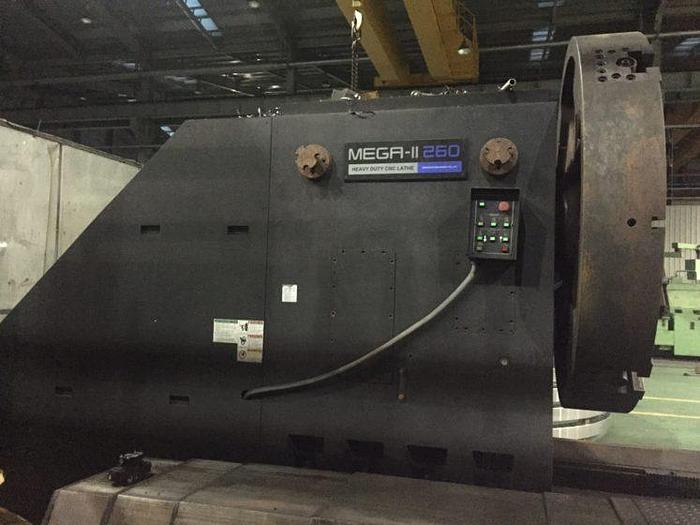

Hwacheon Mega 11-260-6T CNC Heavy Duty Horizontal Lathe
Hwacheon Mega 11-260-6T CNC Heavy Duty Horizontal Lathe
or
Call 770-509-0744
Description

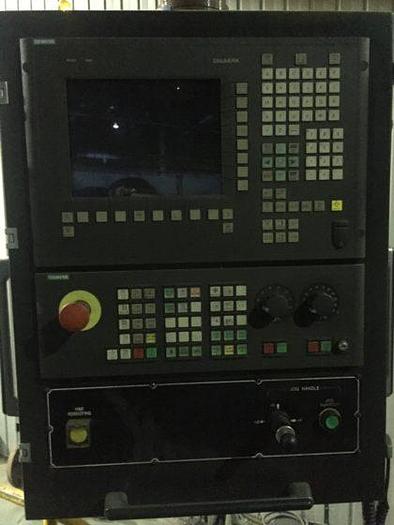

Siemens 840D CNC Control System 4-Jaw Manual Chuck Chip Conveyor 3 Way Bed
Specifications
| Manufacturer | Hwacheon |
| Model | Mega 11-260-6T |
| Year | 2011 |
| Condition | Used |
| Stock Number | 10392 |
| Between centers | 6,000 mm |
| Capacity between centers | 25 Ton |
| Swing over bed | 2,650 mm |
| Swing over slide | 2,200 mm |
| Chuck diameter | 2,030 mm |
| Spindle speeds | 1 - 130 rpm |
| Main spindle drive power dc | 100/140 kW |
| Quill stroke | 300 mm |
| Spindle torque | 7,647 kgf/m |
| Rapid speed x,z axis | 4/6 m/min |
| Machine dimensions lxwxh | 13,500 x 4,200 x 3,725 mm |
