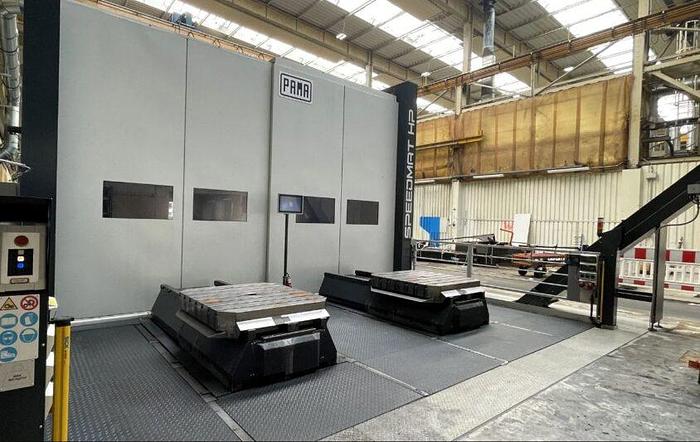

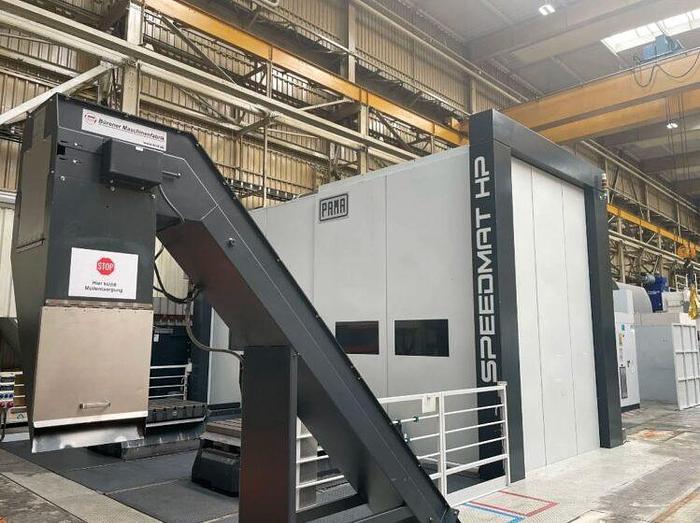

Pama Speedmat HP3 CNC Horizontal Machining Center with Pallet & Head Changer
Pama Speedmat HP3 CNC Horizontal Machining Center with Pallet & Head Changer
or
Call 770-509-0744
Description

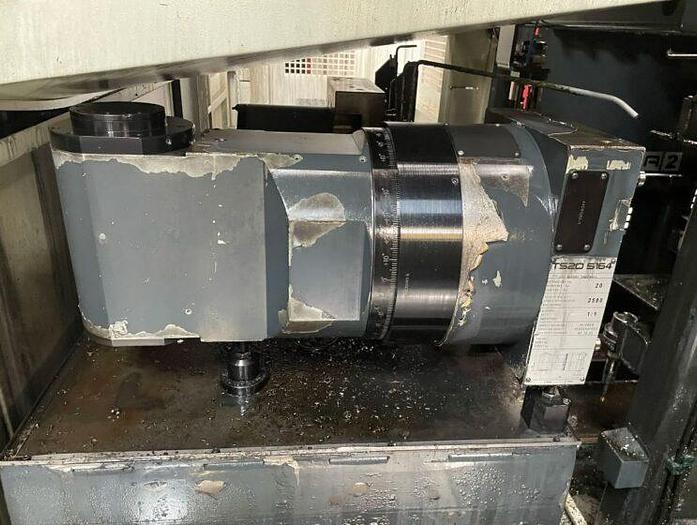

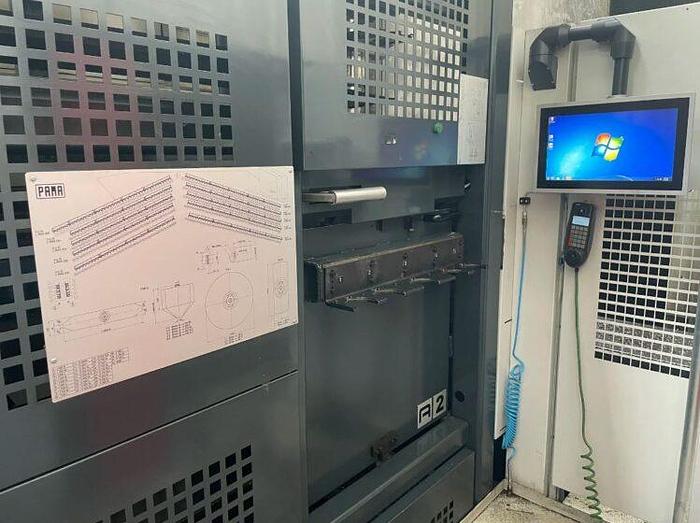

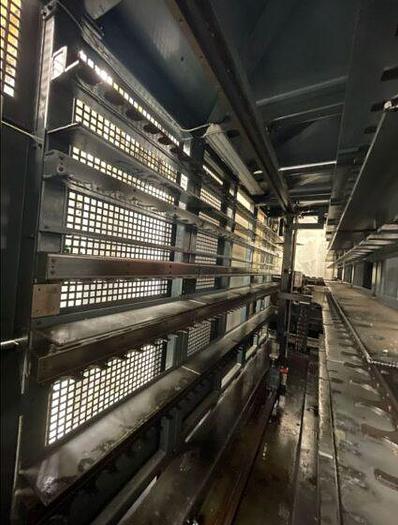

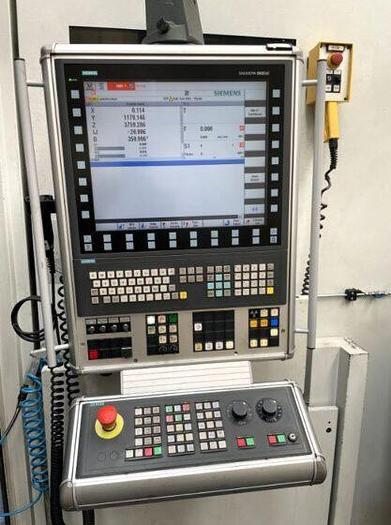

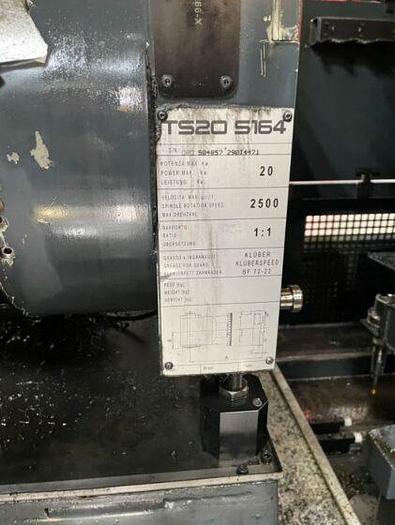

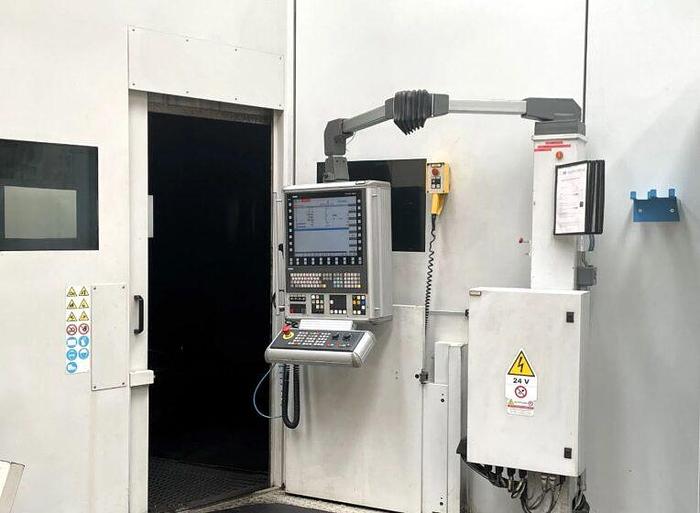

Siemens Sinumerik 840D SL CNC Control TS 20 Angle Head (2) Two Pallets – 1,250 x 1,250 mm 400 Position Automatic Tool Changer Machine package includes wide range of accessories The tools seen in the photos are not part of the offer
Specifications
| Manufacturer | Pama |
| Model | Speedmat HP3 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11018 |
| Workpiece dimensions | 3,000 x 3,200 mm |
| Load capacity of pallet table max | 8 Ton |
| Table dimensions | 1,250 x 1,250 mm |
| Work spindle diameter | 130 mm |
| Number of interchangeable pallets | 2 |
| Tool holder | HSK A-100 |

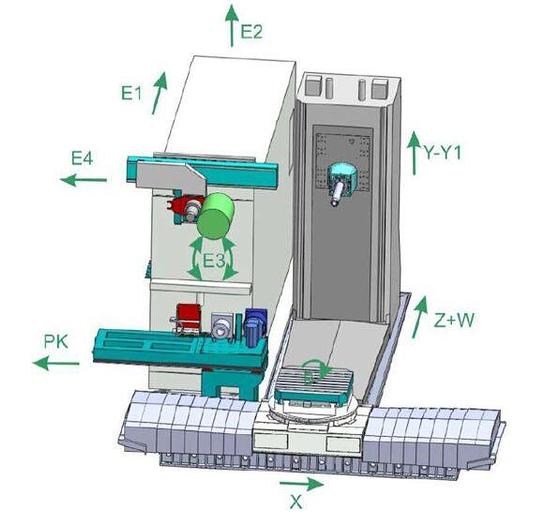

| X axis travel | 3,000 mm |
| Y axis travel | 2,000 mm |
| Z axis travel | 3,200 mm |
| W axis travel | 800 mm |
| Table rotation b axis | 360° |
| Table speed max - b axis | 7 rpm |
| Table torque max | 48 |
| Feed rate x,y,z axis | 0.5 - 10,000 mm/min |
| Feed force x,y,z max | 20,000 N |
| Rapid traverse x,y,z axis | 30 m/min |
| Spindle drive speed max | 6,500 rpm |
