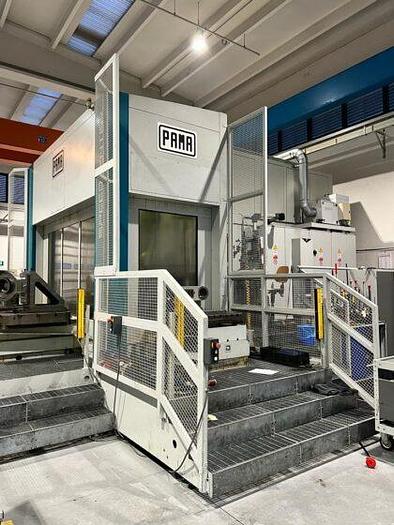

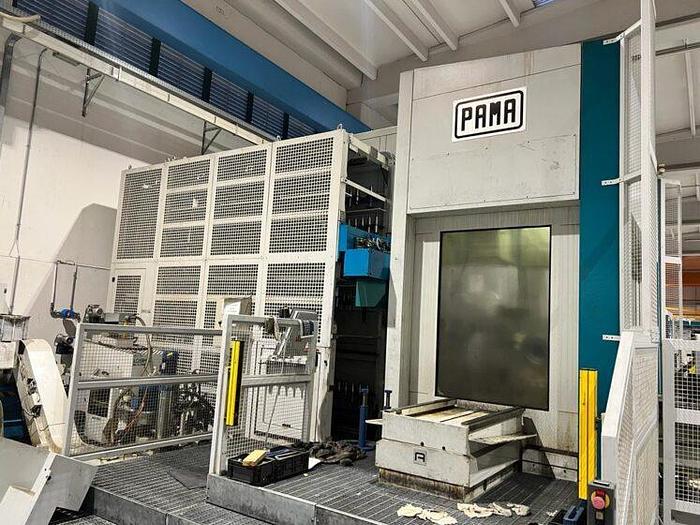

PAMA SPEEDCENTER 5-AXIS HORIZONTAL MACHINING CENTER with MULTI-PALLET SYSTEM
![Used PAMA SPEEDCENTER 5-AXIS HORIZONTAL MACHINING CENTER with MULTI-PALLET SYSTEM](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/b8de3237717ad0924d784973d309b88c/large-Pama-SpeedCenter-1-835x560.jpg)
PAMA SPEEDCENTER 5-AXIS HORIZONTAL MACHINING CENTER with MULTI-PALLET SYSTEM
orCall 770-509-0744
Description

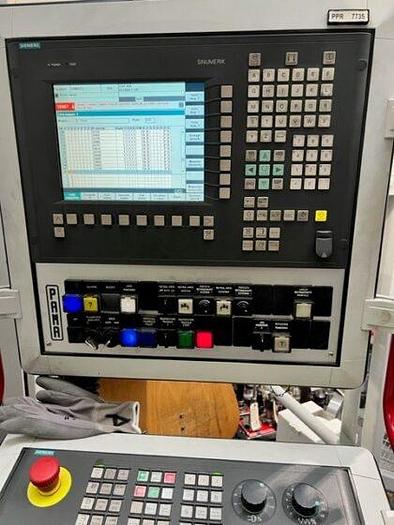

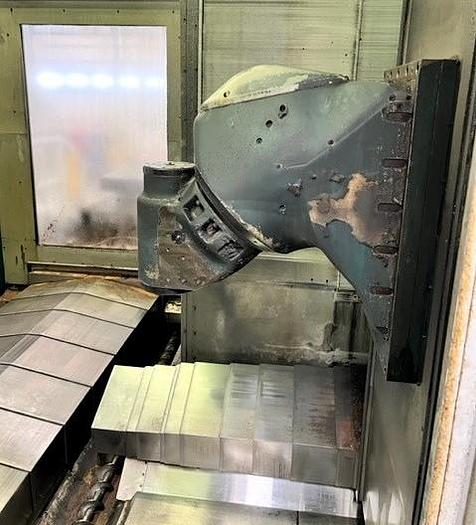

Siemens 840D CNC Control Automatic Rotary Head – 1° Automatic Pallet Changing System (4) Four Pallets Dimensions – 1,000 x 1,000 mm Max Load – 3 Ton Max Workpiece Dimensions – 1,550 mm / 61” High Pressure Coolant – 30 Bar 306 Position Automatic Tool Changer Swarf Chip Conveyor Linear Scales Renishaw Touch Probe
Specifications
Manufacturer | Pama |
Model | SpeedCenter |
Year | 2008 |
Condition | Used |
Stock Number | 10975 |
X axis travel | 2,000 mm |
Y axis travel | 1,600 mm |
Z axis travel | 1,800 mm |
Max workpiece dimensions | 1,500 mm |
Spindle speed | 4,000 rpm |
Spindle power | 37 kW |
Spindle torque | 794 Nm |
Spindle taper | BIG PLUS ISO 50 |

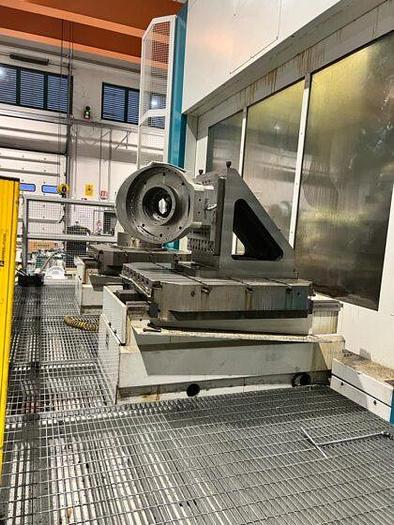

Pallet changing system | 4 Pallets |
Pallet size | 1,000 x 1,000 mm |
Max load on pallet | 3 Ton |
