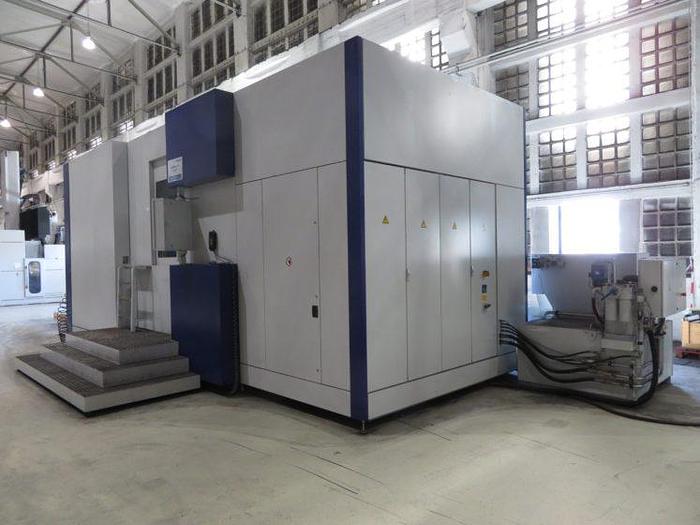

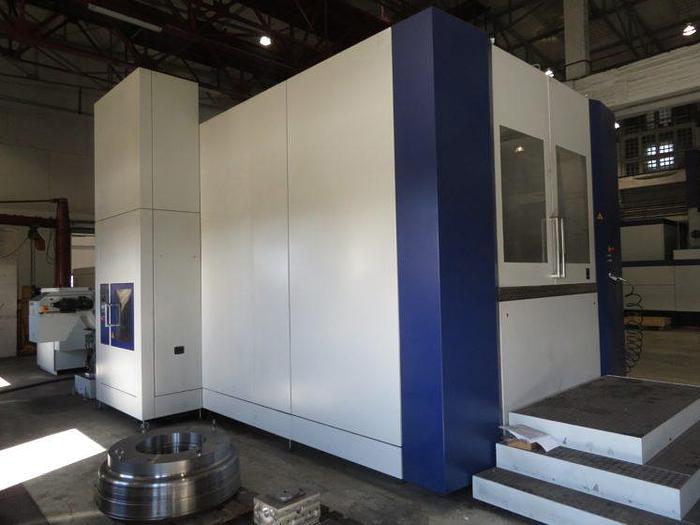

Schiess Horimill 100 CNC Horizontal Machining Center with 2 Pallets
![Used Schiess Horimill 100 CNC Horizontal Machining Center with 2 Pallets](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/d7e74075061c3f2b5d649fb898026457/large-Schiess-n-747x560.jpg)
Schiess Horimill 100 CNC Horizontal Machining Center with 2 Pallets
orCall 770-509-0744
Description
Siemens 840D CNC Control
60 Position Automatic Tool Changer

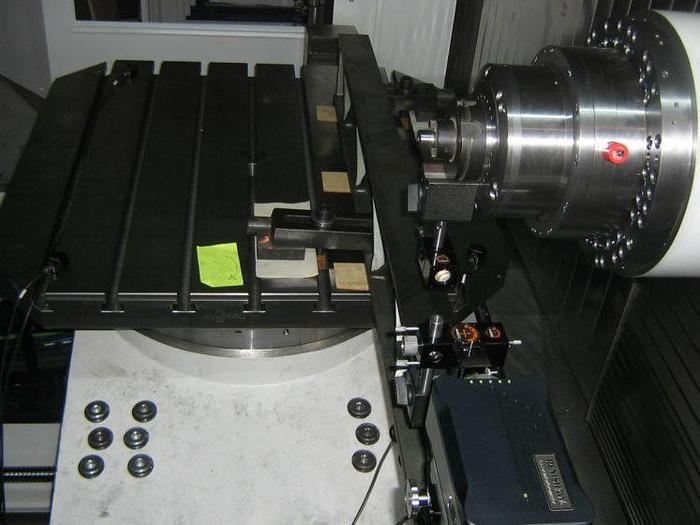

NC – Rotary Table With Torque Motor Drive
2 Automatic Pallet Changer
Spindle Oil Cooler
Internal Cooling System

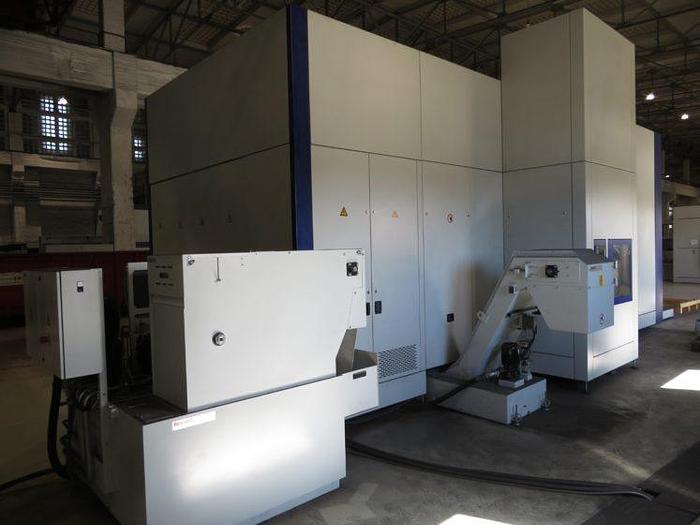

Chip Conveyor
Specifications
Manufacturer | Schiess |
Model | Horimill 100 |
Year | 2018 |
Condition | Used |
Stock Number | 10617 |
X axis travel | 1,700 mm |
Y axis travel | 1,400 mm |
Z axis travel | 1,500 mm |
B axis travel | 50 U/min |
Number of pallets | 2 |

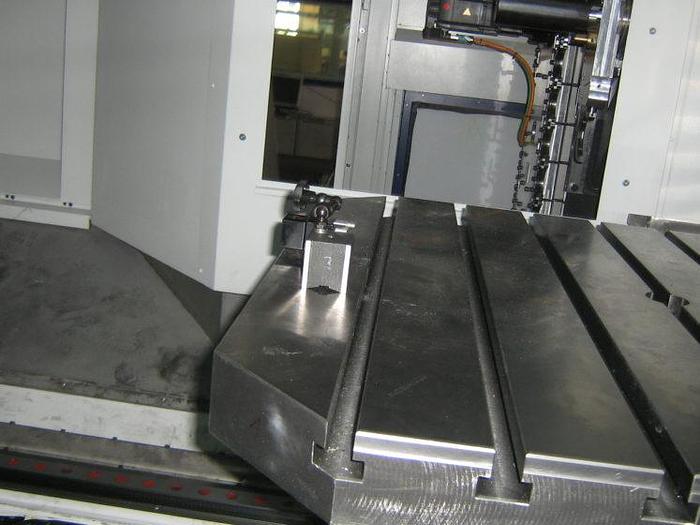

Size of pallet | 1,000 x 1,000 mm |
Maximum table load | 3,000 kg |
Max workpiece diameter | 1,700 mm |
Tool bore | 100 HSK |
Spindle speed range | 12,000 rpm |
Spindle motor | 48 / 71 kW |
Torque | 300 / 452 Nm |
Number of tool stations | 60 |
Tool diameter | 125 / 275 mm |
Maximum tool length | 600 mm |
Tool weight | 35 kg |
Tool changing time | 3.5 sec |
Rapid traverse | 40 m/min |
Acceleration | 4 m/s² |
Total power requirement | 120 kW |
Floor space required - machine | 9 x 5 x 4.5 m |
Weight of the machine, approximate | 36 Ton |
