Heyligenstaedt Varimat-HC 1000 x 1500 CNC 2 Pallets Horizontal Machining Center
Heyligenstaedt Varimat-HC 1000 x 1500 CNC 2 Pallets Horizontal Machining Center
or
Call 770-509-0744
Description

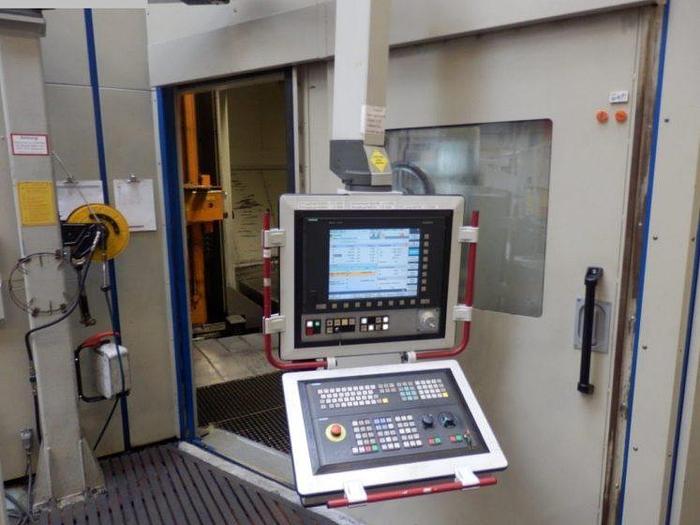

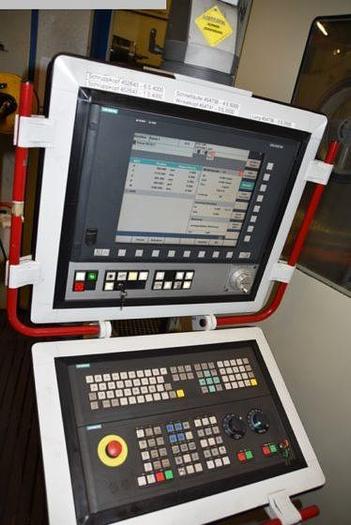

Siemens 840 D CNC Control System

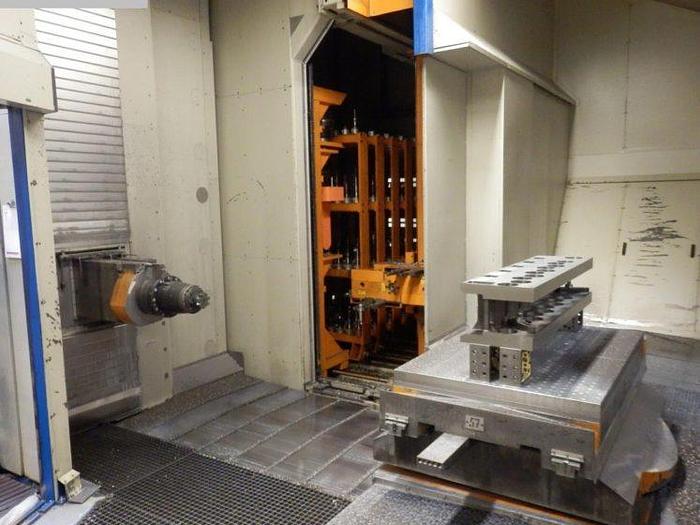

192 Position Automatic Tool Changer
Head Changer For 6 heads incl. 4 different heads

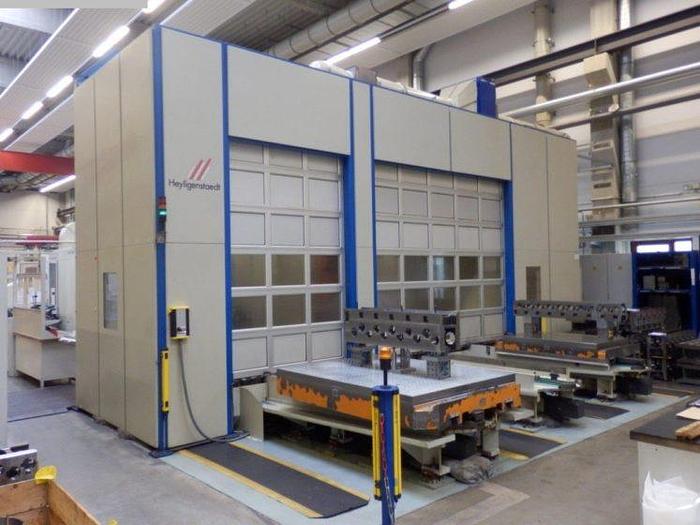

Pallet Changer for 2 Pallets 1500 x 1000 mm and 1 Pallet 2000 x 1500 mm
Internal Cooling For Heads And Tools
Machine Was Connected To The Central Coolant System, Does not Include Coolant Tank
Specifications
| Manufacturer | Heyligenstaedt |
| Model | Varimat-HC 1000 x 1500 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 10575 |
| X axis travel | 4,000 mm |
| Y axis travel | 2,000 mm |
| Z axis travel | 1,000 mm |
| W axis travel | 2,000 mm |
| Table surface area 1 | 2,000 x 1,500 mm |
| Table surface area 2 | 1,500 x 1,000 mm |
| Table load capacity | 10 Ton |
| Spindle diameter | 125 mm |
| Power capacity - milling spindle | 42 kW |
| Tool taper | ISO 50 |
| Table positioning | 4 x 90 Degree |
| Spindle turning speed - stepless | 6.3 - 4,000 rpm |
| Feed speed | 1 - 40 m/min |
| Rapid traverse | 40 m/min |

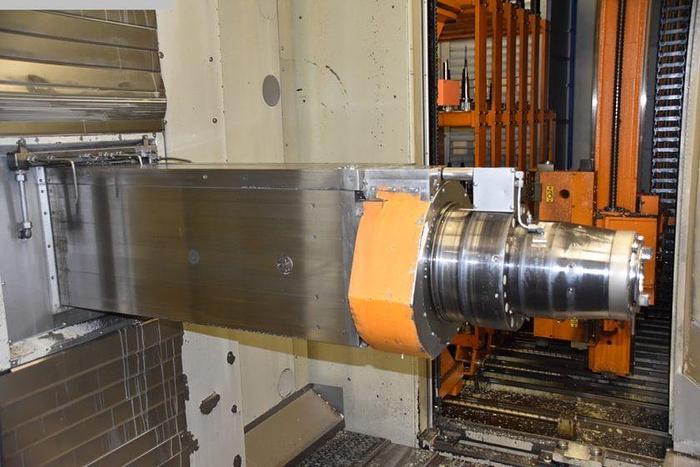

| Ram cross section | 400 x 320 mm |
| Weight of machine, approx. | 50 Ton |
| Machine dimensions, approx. | 12 x 12 x 4.5 m |
