DMG DMF 360 Linear CNC Vertical Machining Center

DMG DMF 360 Linear CNC Vertical Machining Center

orCall 770-509-0744

Description

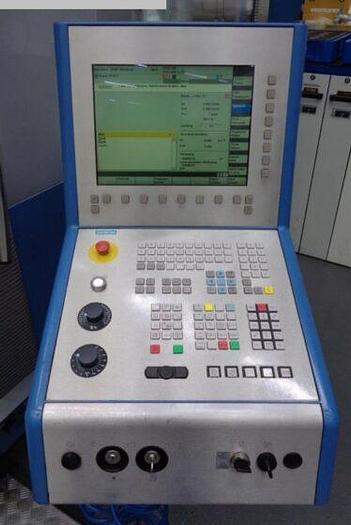

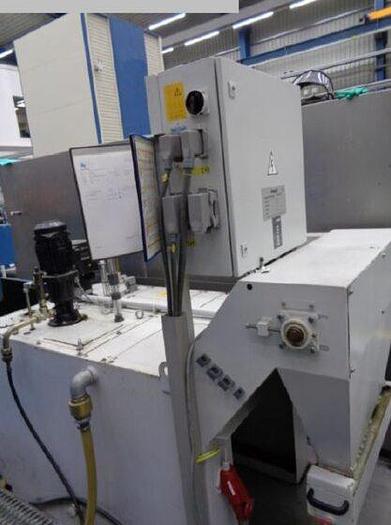

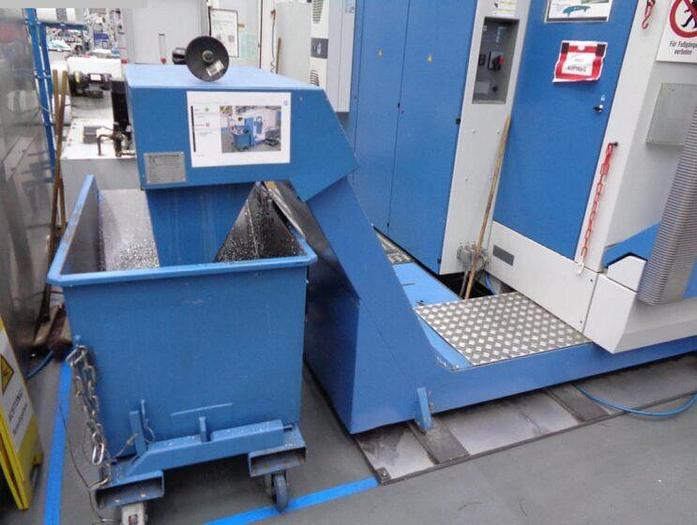

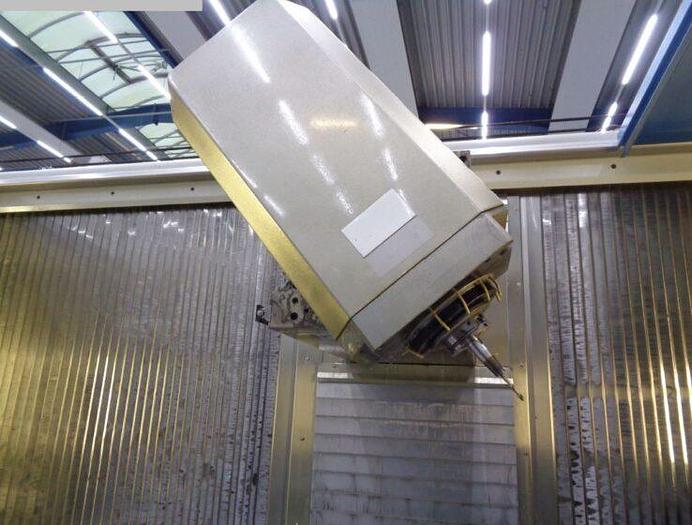

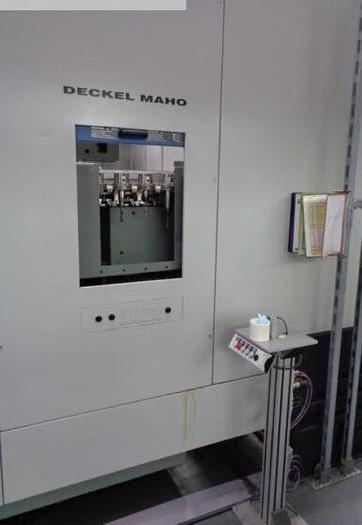

CNC control Siemens Sinumerik NC 840 D Powerline Controlled B-axis, swivel milling head, 1 deg. indexing 30-pos. tool changer Hydraulic connection for quick clamping system Chip conveyor Compact filter system, 900 liters volume Coolant through spindle

Specifications

ManufacturerDMG
ModelDMF 360 Linear
Year2003
ConditionUsed
Stock Number10942
X axis travel3,600 mm
Y axis travel920 mm
Z axis travel820 mm
Total power requirement92 kVA

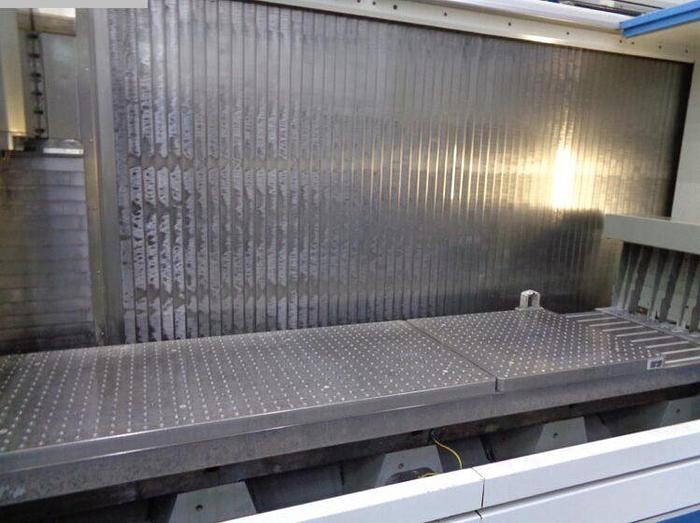

Clamping area4,200 x 900 mm
Number of t slots9
Spacing of the t slots100 mm
Permissible table load - center of table4,200 kg
Drive power (100% ed)32 kW
Drive power (40% ed)48 kW
Torque (100% ed)196 Nm
Torque (40% ed)294 Nm
Speed infinitely programmable20 - 10,000 rpm
Speed in set-up mode20 - 800 rpm
Feed speed x, y, z axisup to 20,000 mm/min
Input resolution x, y, z axis0.01 mm
Rapid traverse x axis100 m/min
Rapid traverse y, z60 m/min
Machine dimensions, approximate10 x 6.5 m
Weight of the machine, approximate30 Ton
