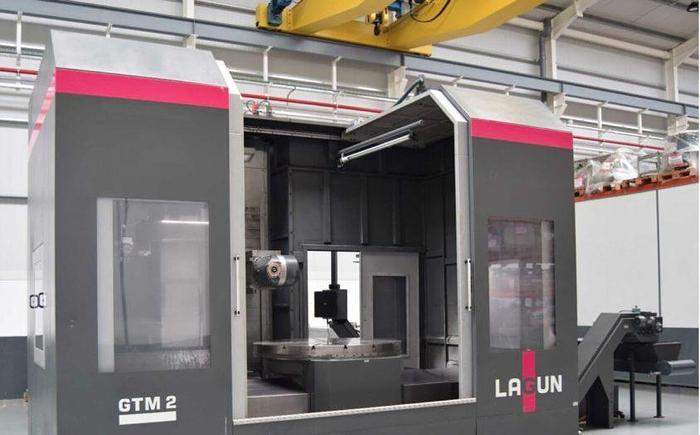

Lagun GTM 2 Horizontal Machining Center with Vertical Turning Capacity
Lagun GTM 2 Horizontal Machining Center with Vertical Turning Capacity
or
Call 770-509-0744
Description

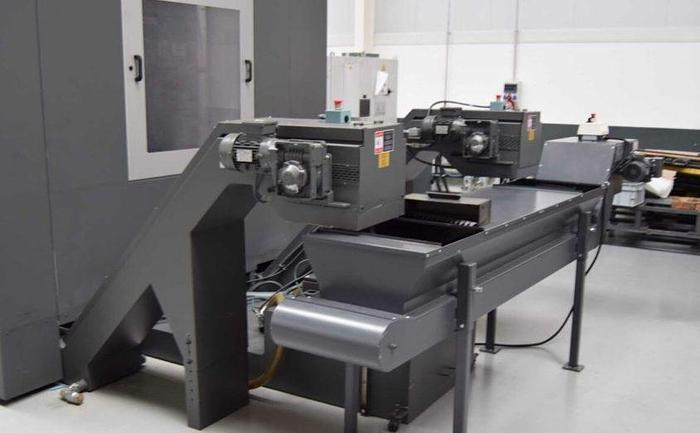

Heidenhain TNC 640 CNC Control System Automatic Orthogonal Milling Head Integrated Turning Table 40 Position Automatic Tool Changer – ATC Ready for HSK 100-T Internal Coolant 36 Bar Chip Conveyor Portable Hand Wheel Touch Probe Operator Platform Integral Guarding
Specifications
| Manufacturer | Lagun |
| Model | GTM 2 T-Type |
| Year | 2014 |
| Condition | Used |
| Stock Number | 10768 |
| Spindle speed | 4,000 rpm |
| X axis travel | 2,000 mm |
| Y axis travel | 1,200 mm |
| Z axis travel | 1,500 mm |

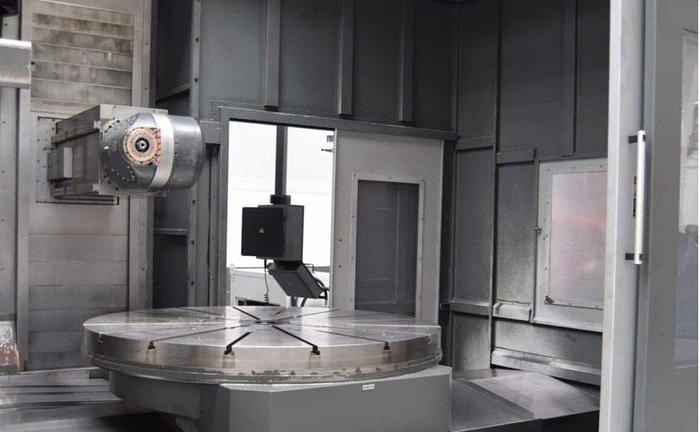

| Table diameter | 1,800 mm |
| Table speed | 400 rpm |
| Speed range | 2 |
| Table capacity | 5 Ton |
| Table indexing | 0.001 degree |
| Spindle power | 28 / 34.5 kW |
| Table power | 28 kW |
| Radial t-slot size | 22 |
| Torque | 8,400 Nm |
| Torque (s1/s6) | 1,070 / 1,300 NM |
| Taper | HSK 100 T |
| Rapid feeds (x y z w axis) | 20,000 mm/min |
