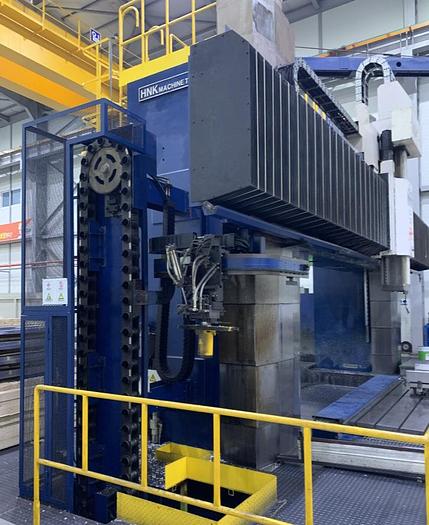

HNK HPM-40H CNC Double Column Heavy-Duty Plano Milling Machine
HNK HPM-40H CNC Double Column Heavy-Duty Plano Milling Machine
or
Call 770-509-0744
Description

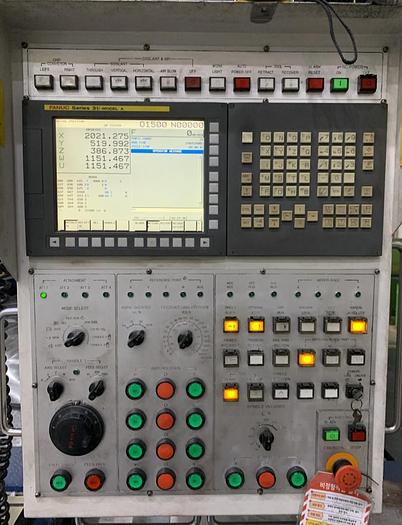

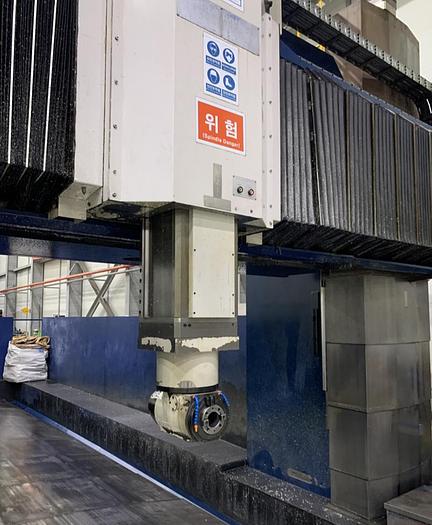

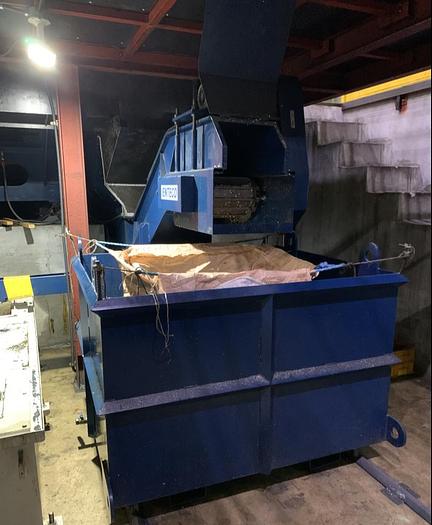

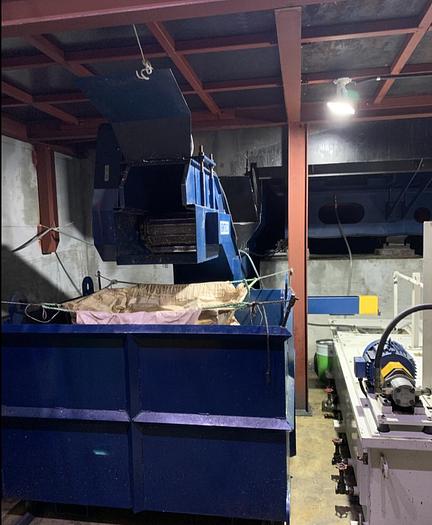

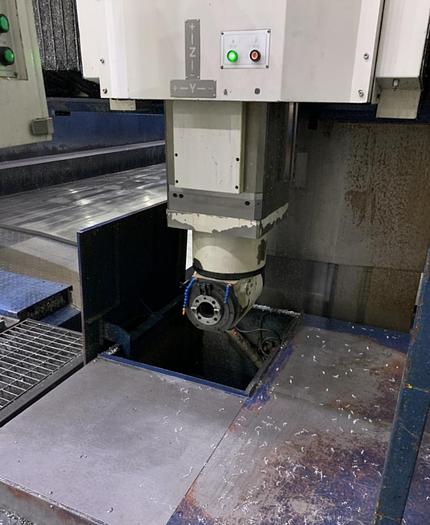

Fanuc 31iA MB CNC Control (10.4″ TFT LCD) 60 Position Automatic Tool Changer Through Spindle Coolant (TSC) 30 Bar Automatic Attachment Changer Right Angle Head L=350 mm Extension Attachment = L=600 mm Scale Feedback X,Y,Z,W Chip Conveyor
Specifications
| Manufacturer | HNK |
| Model | HPM-40H |
| Year | 2011 |
| Condition | Used |
| Stock Number | 11010 |
| Between columns | 5,300 mm |
| Spindle speeds | 6,000 rpm |
| Machining height | 2,600 mm |
| X axis travel | 10,250 mm |
| Y axis travel | 6,400 mm |
| Z axis travel | 800 mm |

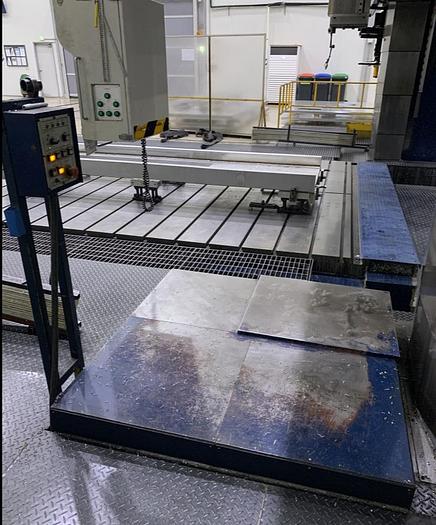

| Table dimensions | 4,000 x 10,000 mm |
| Table capacity | 50 Ton |
| W axis travel | 2,000 mm |

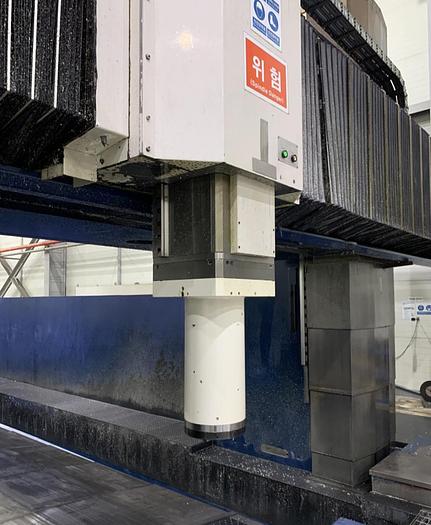

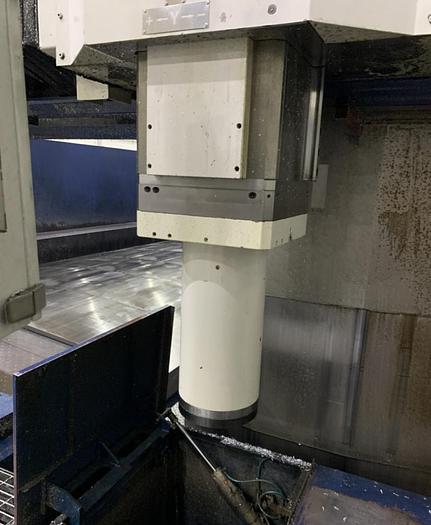

| Ram size | 380 x 380 mm |
| Spindle motor | 22 / 25 kW |
| Spindle taper | ISO 50 |
| Rapid feed (x,y,z,w) | 15 / 15 / 8 / 4 m/min |
| Cutting feed (x,y) | 1 - 10,000 mm/min |
| Cutting feed (z) | 1 - 8,000 mm/min |
| Cutting feed (w) | 1 - 3,000 mm/min |
