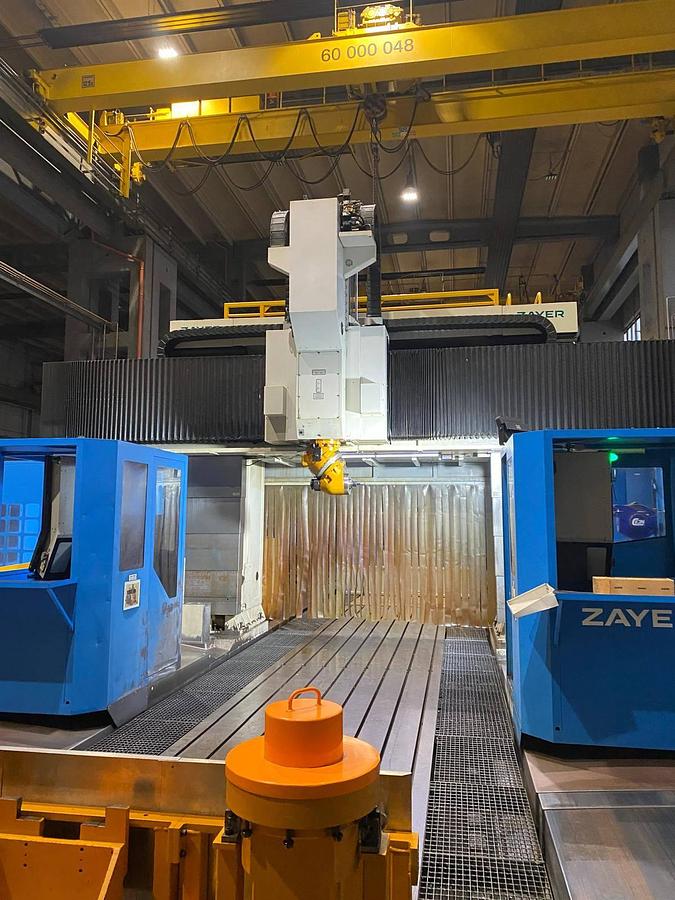

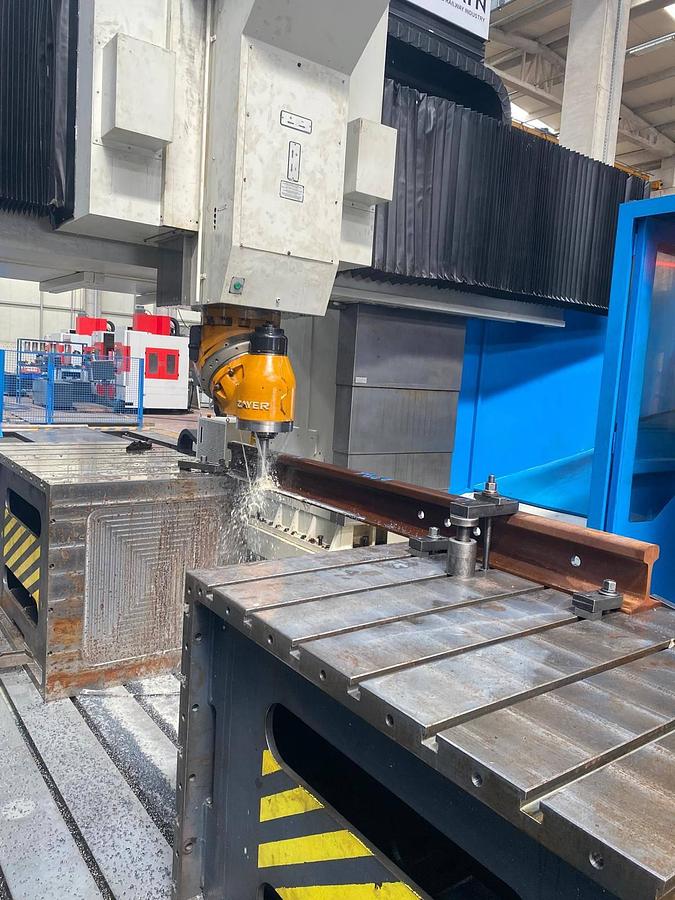

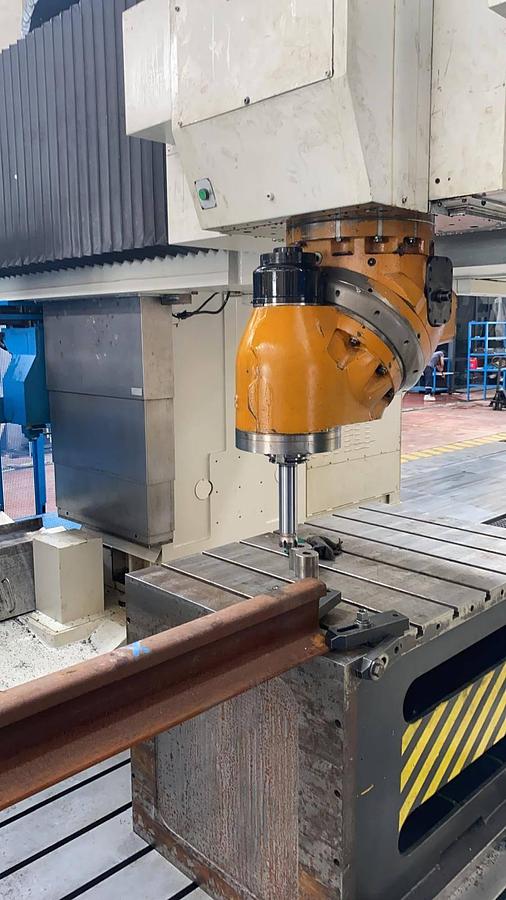

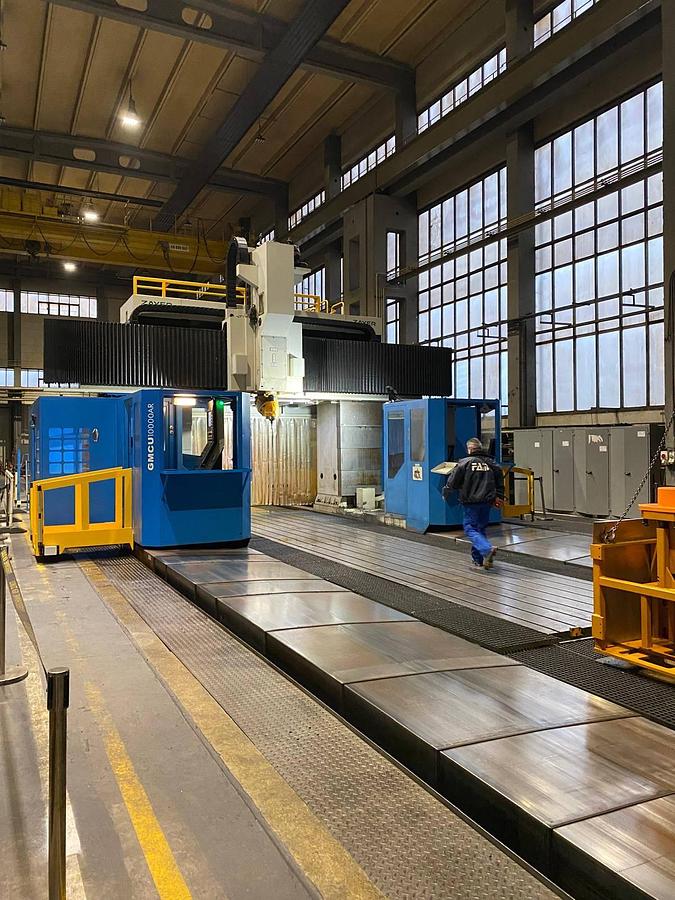

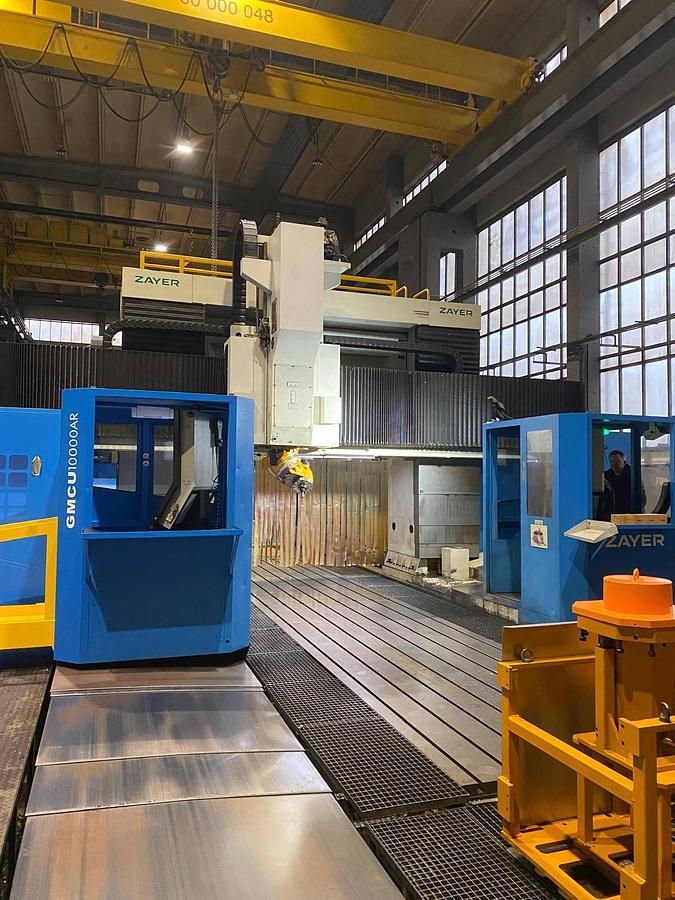

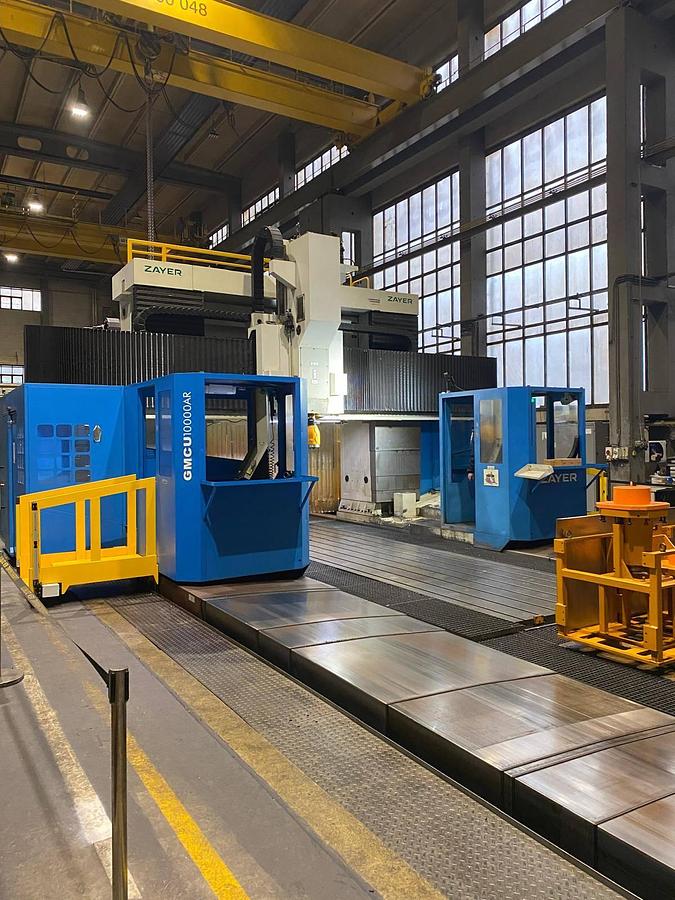

Zayer GMCU 10000-AR CNC Gantry Type Double Column Milling Machine
![Used Zayer GMCU 10000-AR CNC Gantry Type Double Column Milling Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/e27f039bc535afc123f29cba404bca3f/large-Zayer-b-1-844x490.jpg)
Zayer GMCU 10000-AR CNC Gantry Type Double Column Milling Machine
orCall 770-509-0744
Description
Heidenhain iTNC 530 CNC Control Universal Milling Head – Automatic Angular Milling Head – 90° Spindle Extension 40 Position Automatic Tool Changer Table Enlargement Supporter – Width up to 3,000 mm Internal Coolant Supply at the Spindle Compressed Air 6 bar, 500 L/min Documentation
Specifications
Manufacturer | Zayer |
Model | GMCU 10000-AR |
Year | 2009 |
Condition | Used |
Stock Number | 11008 |
Between columns | 3,200 mm |
Spindle speeds | 6,000 rpm |
X axis travel | 10,000 mm |
Y axis travel | 4,050 mm |
Z axis travel | 1,100 mm |
Height under portal | 2,100 mm |
W axis travel | 1,200 mm |
Table capacity | 25 Ton |
Feeds | 6 - 10,000 mm/min |
Rapid traverse feeds | 25,000 mm/min |
Tool taper | ISO 50 |
Tool length - max | 300 mm |
Spindle motor - drive capacity | 40 kW |
Total power requirement | 142 kW |
