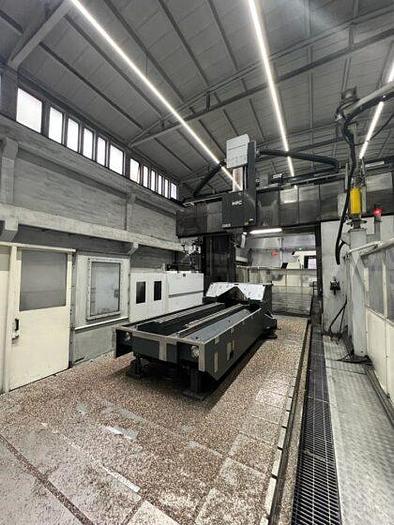

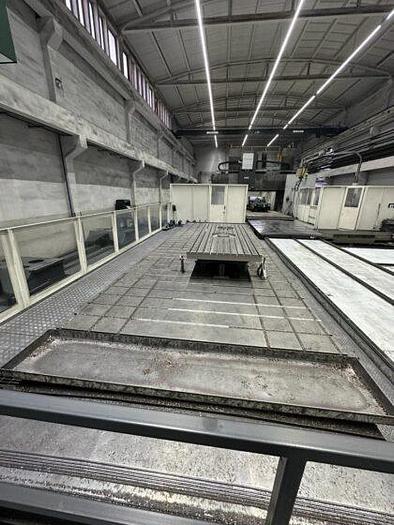

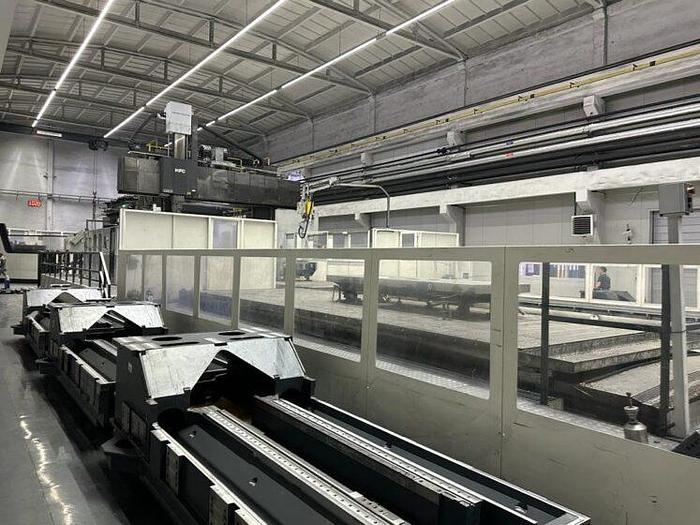

Toshiba MPC-3180B CNC Double Column Multi Machining Center
Toshiba MPC-3180B CNC Double Column Multi Machining Center
orCall 770-509-0744
Description

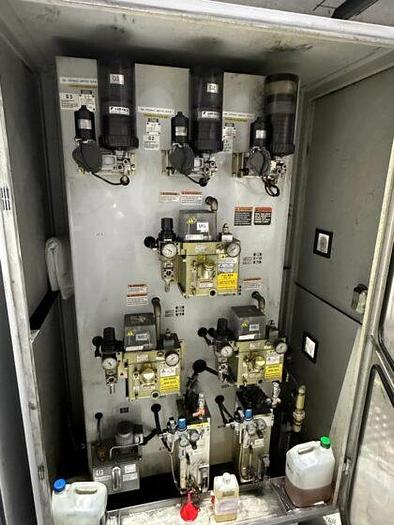

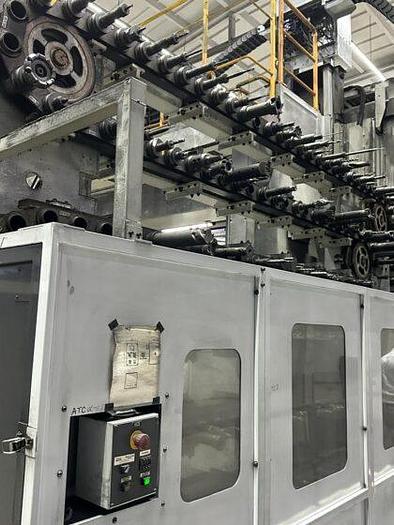

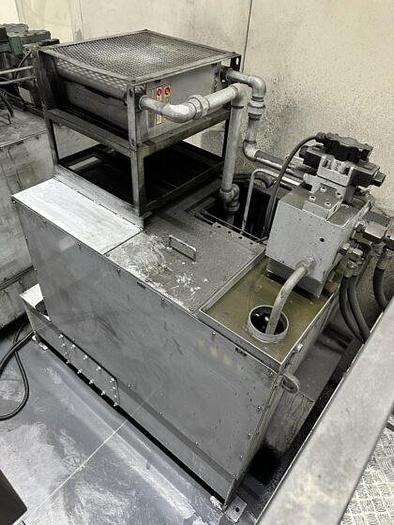

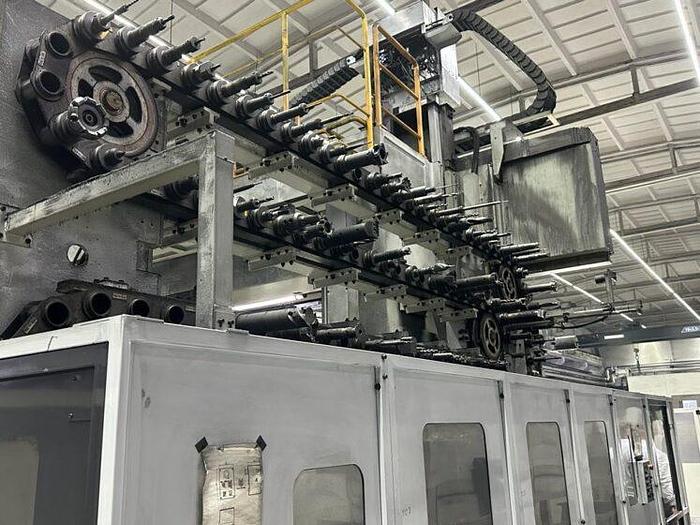

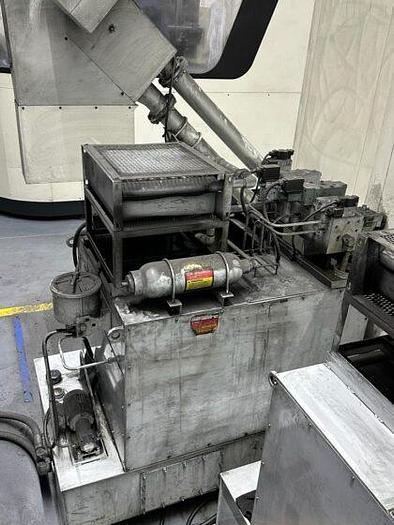

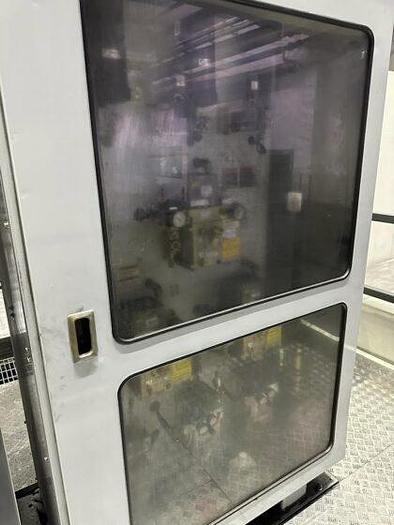

Fanuc Series 15i-Model B Equipped with a Vertical & Horizontal Spindles 5-Face Machining – 5-Face Cutter Head Automatic Attachment Automatic Tool Changer for Vertical & Horizontal Spindle Hydraulic Unit Oil Cooling Unit Hydraulic Crossrail Servo Balancing System Hydraulic Ram Balancing Cylinder Oil Mist Lubrication Unit for Gears Oil Mist Lubrication Unit for Bearings Telescopic Steel Covers – Bed, Column, Cross Rail
Specifications
| Manufacturer | Toshiba |
| Model | MPC 3180B |
| Year | 2007 |
| Condition | Used |
| Stock Number | 10982 |
| Between columns | 3,100 mm |
| Spindle speeds | 3,000 rpm |
| Machining height | 2,440 mm |
| X axis travel | 9,000 mm |
| Y axis travel | 3,900 mm |
| Z axis travel | 900 mm |
| W axis travel | 1,600 mm |

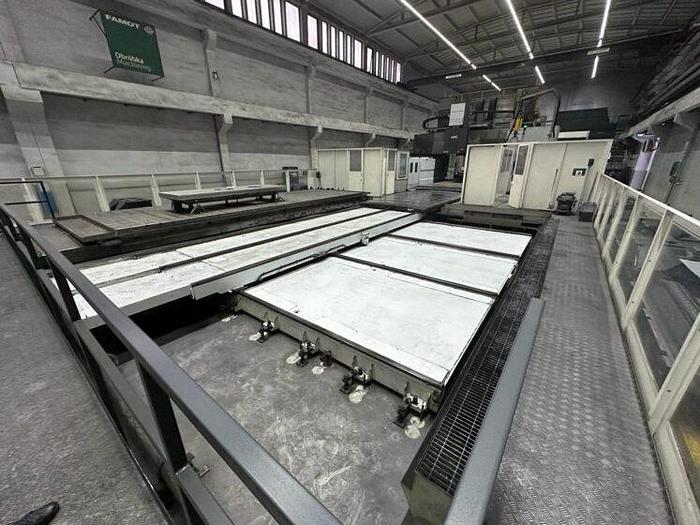

| Table dimensions | 2,700 x 8,000 mm |
| Table capacity | 20 Ton |
| Spindle speed ranges | 2 |
| Spindle taper hole | 7/24 No. 50 |
| Tool shank | MAS BT50 |
| Spindle drive motor - ac (50%/continuous) | 30 / 22 kW |
| Max spindle torque | 2,170 Nm |
| Vertical spindle | 100 mm |
| Horizontal spindle | 120 mm |
| Ram size | 380 x 380 mm |
| Rapid traverse x axis | 20,000 mm/min |
| Rapid traverse y axis | 25,000 mm/min |
| Rapid traverse z axis | 10,000 mm/min |
| Rapid traverse w axis | 6,000 mm/min |
| Electrics | 210V AC 60 Hz |
| Power capacity | 150 kVA |
| Machine dimensions | 9,900 x 29,110 mm |
| Machine height | 7,260 mm |
