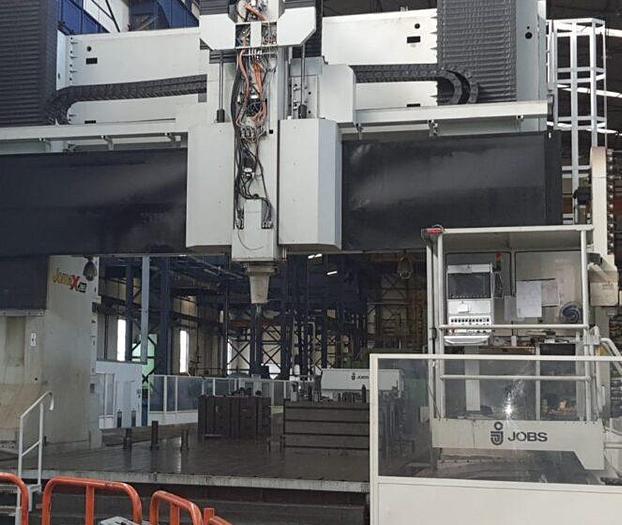

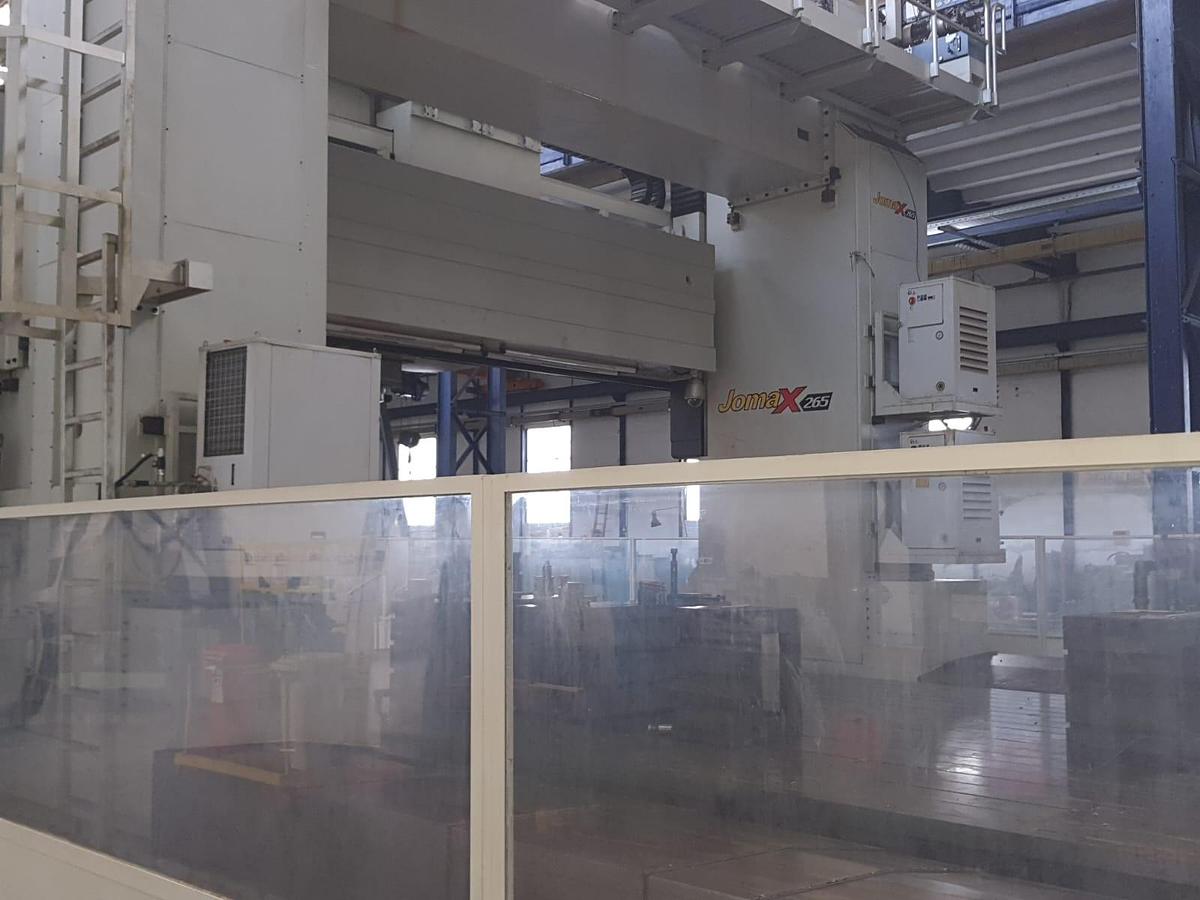

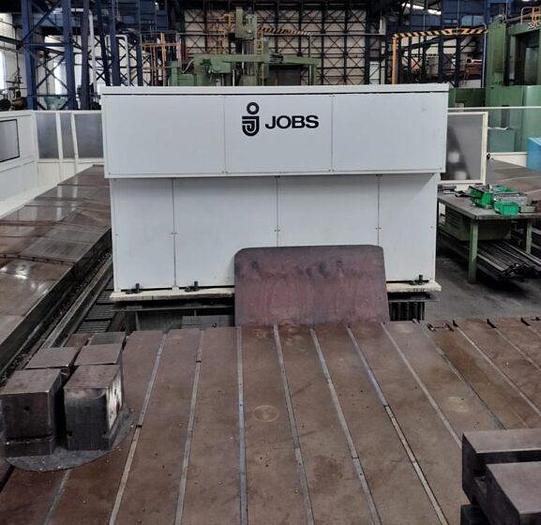

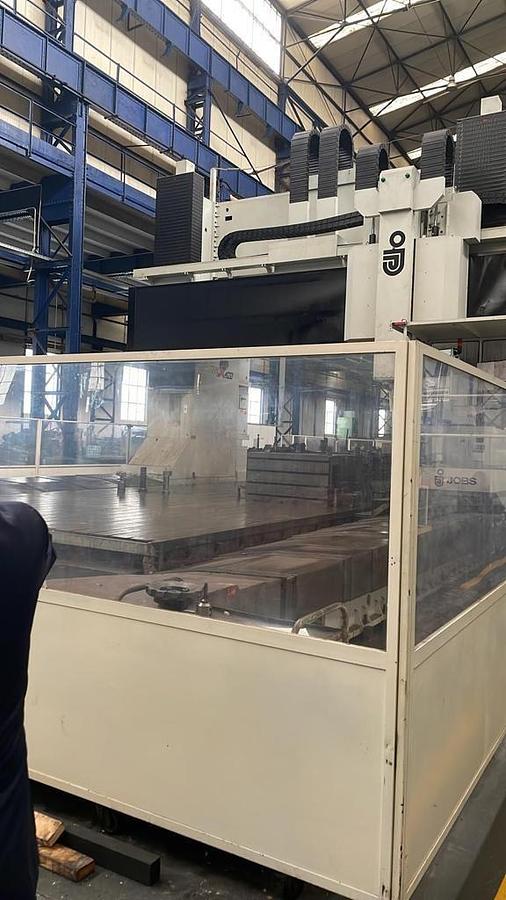

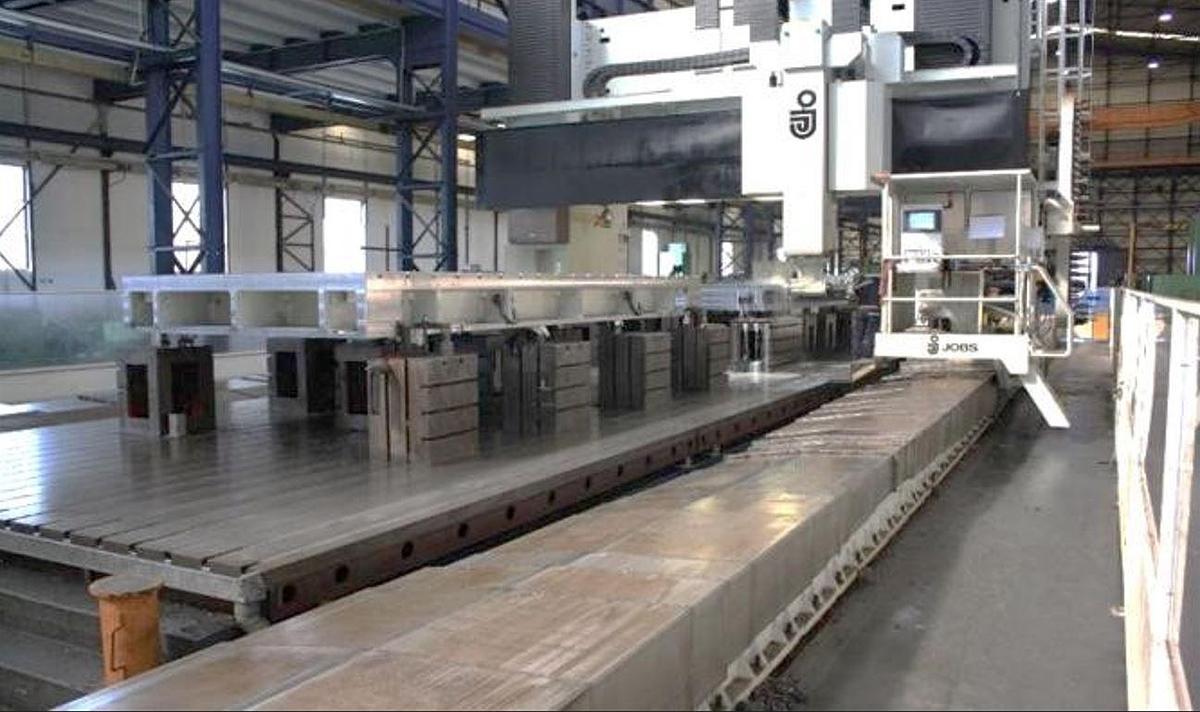

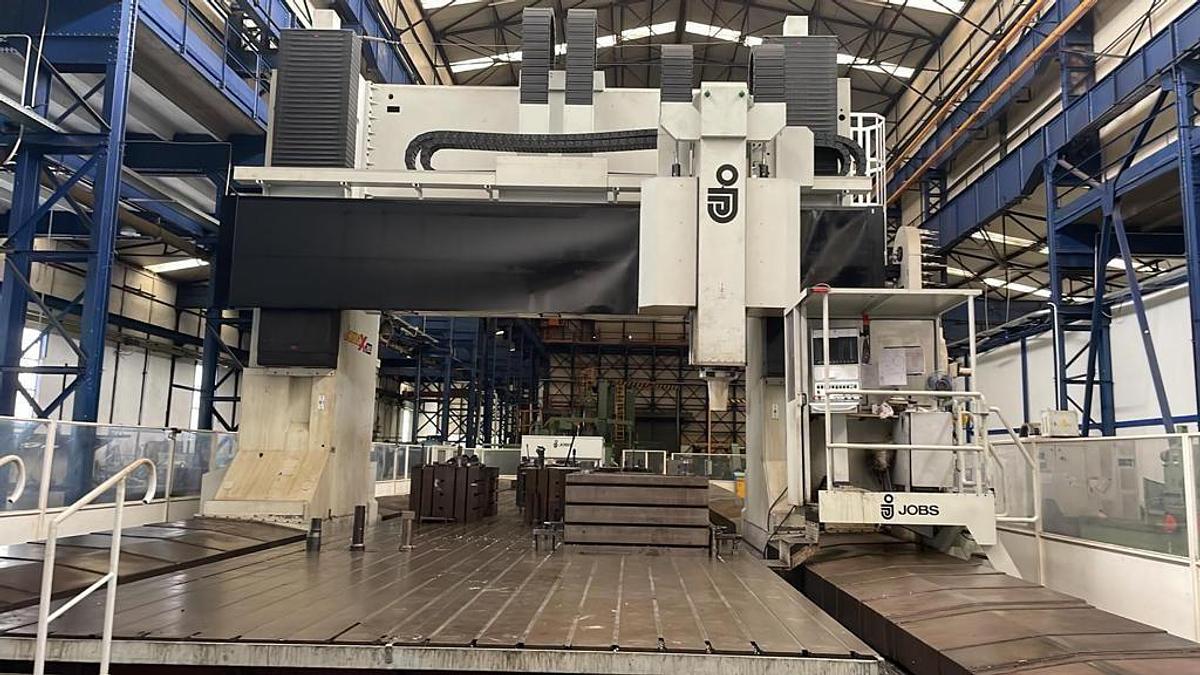

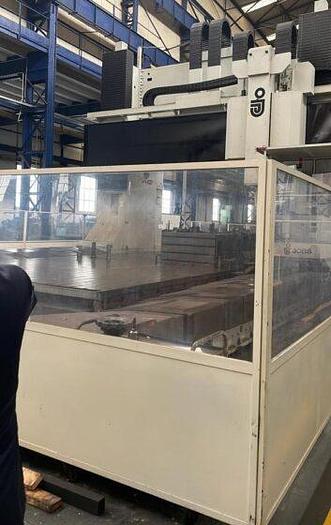

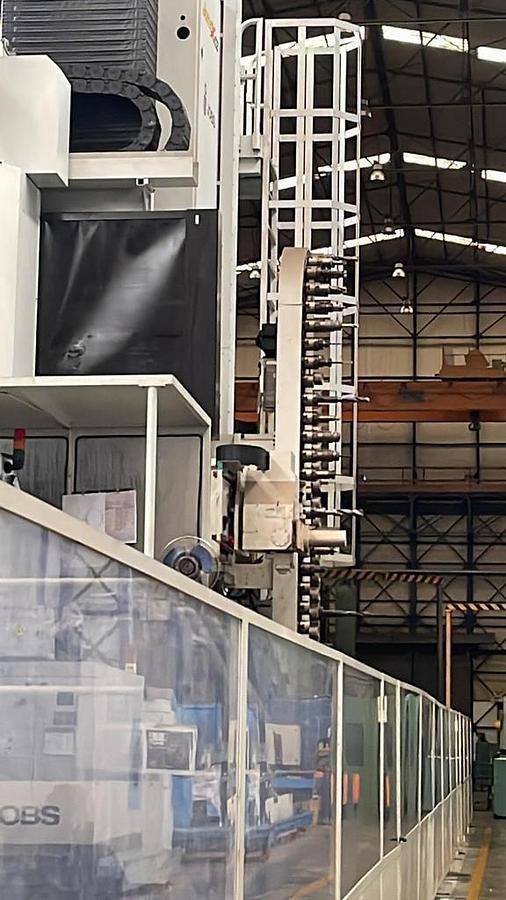

Jobs JOMAX 265 CNC Double Column Gantry Type Movable Column Milling Machine

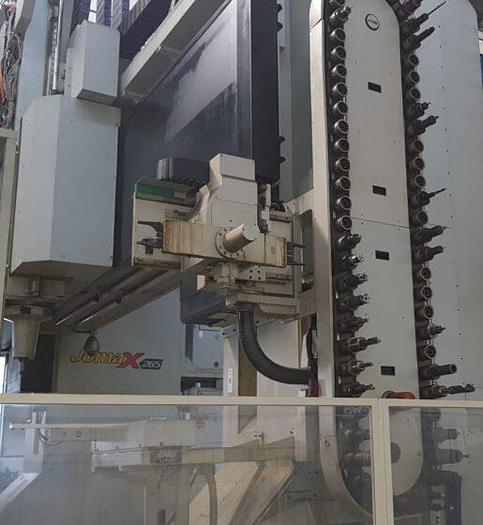

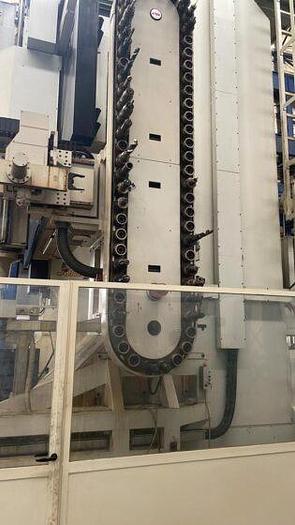

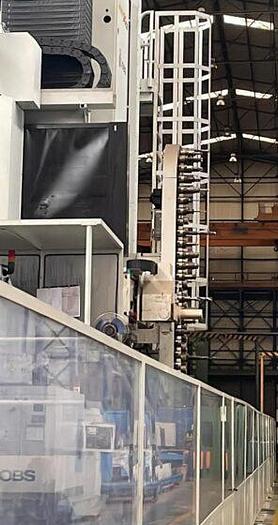

SIEMENS 840 D SL CNC Control System 60 Position Automatic Tool Changer HSK-A-100 Head Box With 3 Head Positions 2 x Chip Conveyors Coolant Through Spindle High Pressure Digital Touch Probe M&H MULTI 20 Presetting BLUM Operator Platform Fork Type Universal Milling Head Chip Conveyor HEAD T6K-P BUSS 53 (42) KW, 1687 (1337)Nm, 3000 rpm HSK-A-100 HEAD  90° BUSS 37 KW (30)KW, 1178 (955) Nm 2800rpm HSK-A-100 HEAD 3 axis BUSS power head 56 (45)Kw, 1738 (1433) Nm, 4000 rpm HSK-A-100

2-axis NC swivel milling head. C -Axis 400 (+/- 200°). A 220° +/- 110°

Spindle holder HSK-A100

Spindle drive power 42/53 kW

Spindle torque max. 1,337/1,687 Nm

Spindle speeds up to 3,000 rpm.

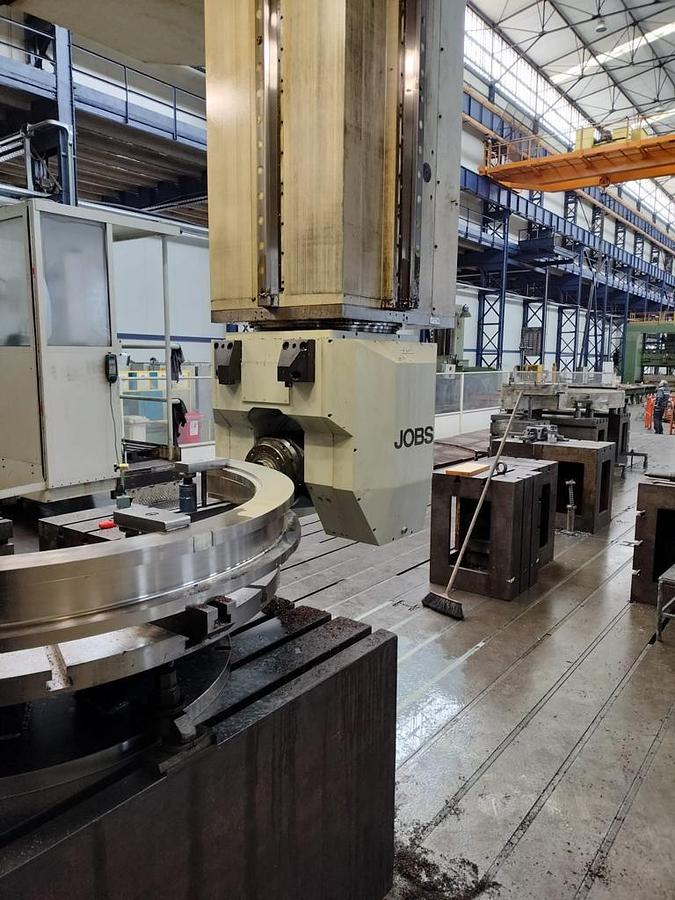

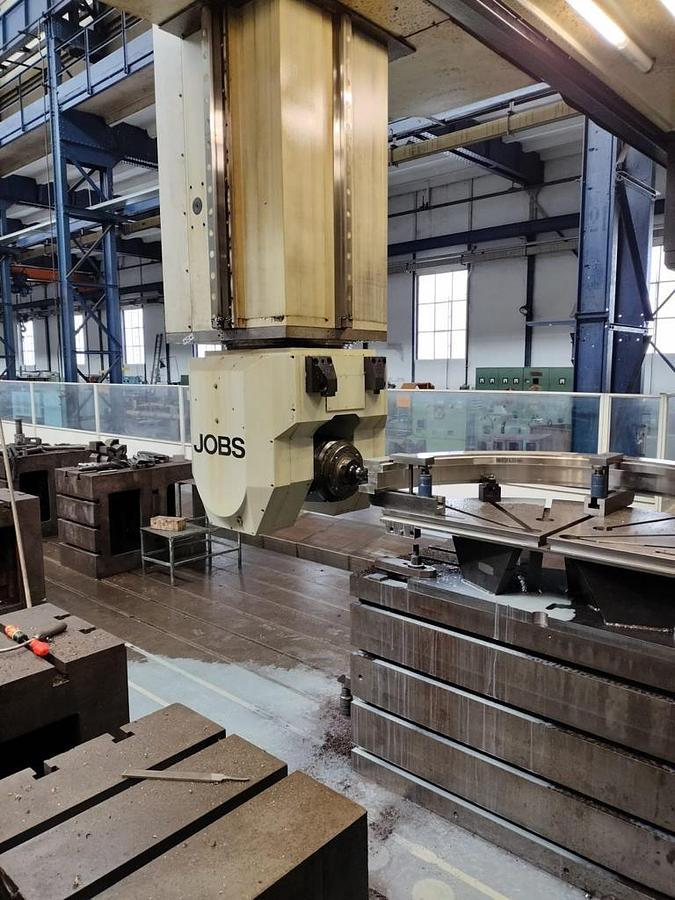

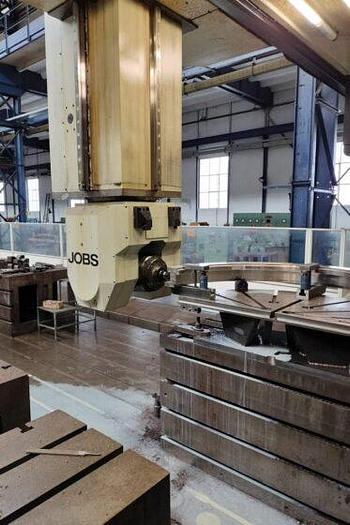

1-axis angular milling head 90° BUSS

With C-axis +/-200°

Spindle holder HSK-A100

Spindle drive power 30/37 kW

Spindle torque max. 955/1,178 Nm

Spindle speeds up to 2,800 rpm

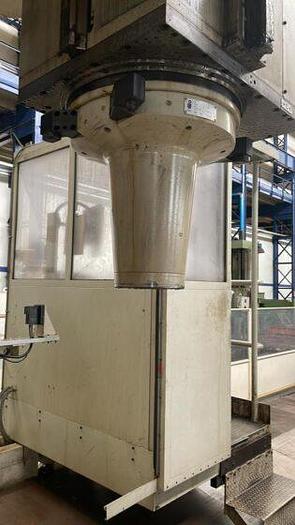

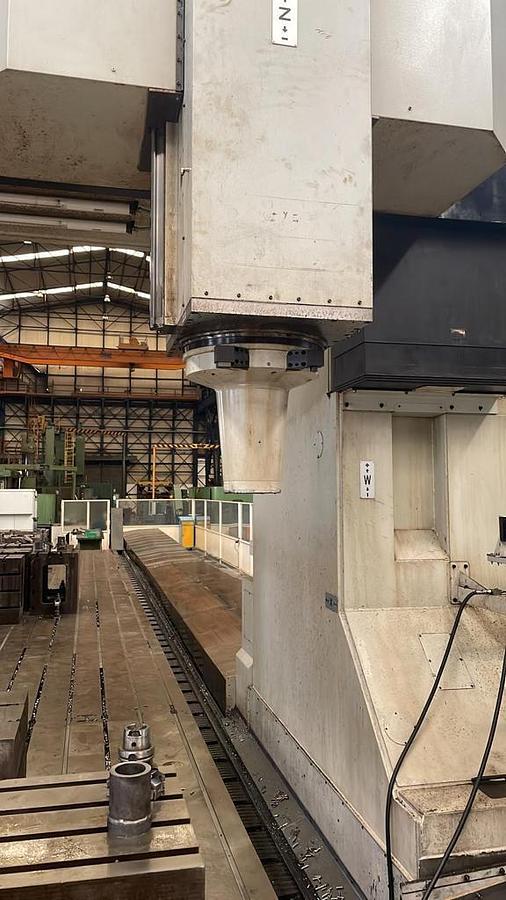

Vertical milling head                                                    BUSS

Spindle holder                                                               HSK-A100

Spindle drive power                                                     45/56 kW

Spindle torque max.                                                     1,433/1,783 Nm

Spindle speeds up to                                                   4,000 rpm

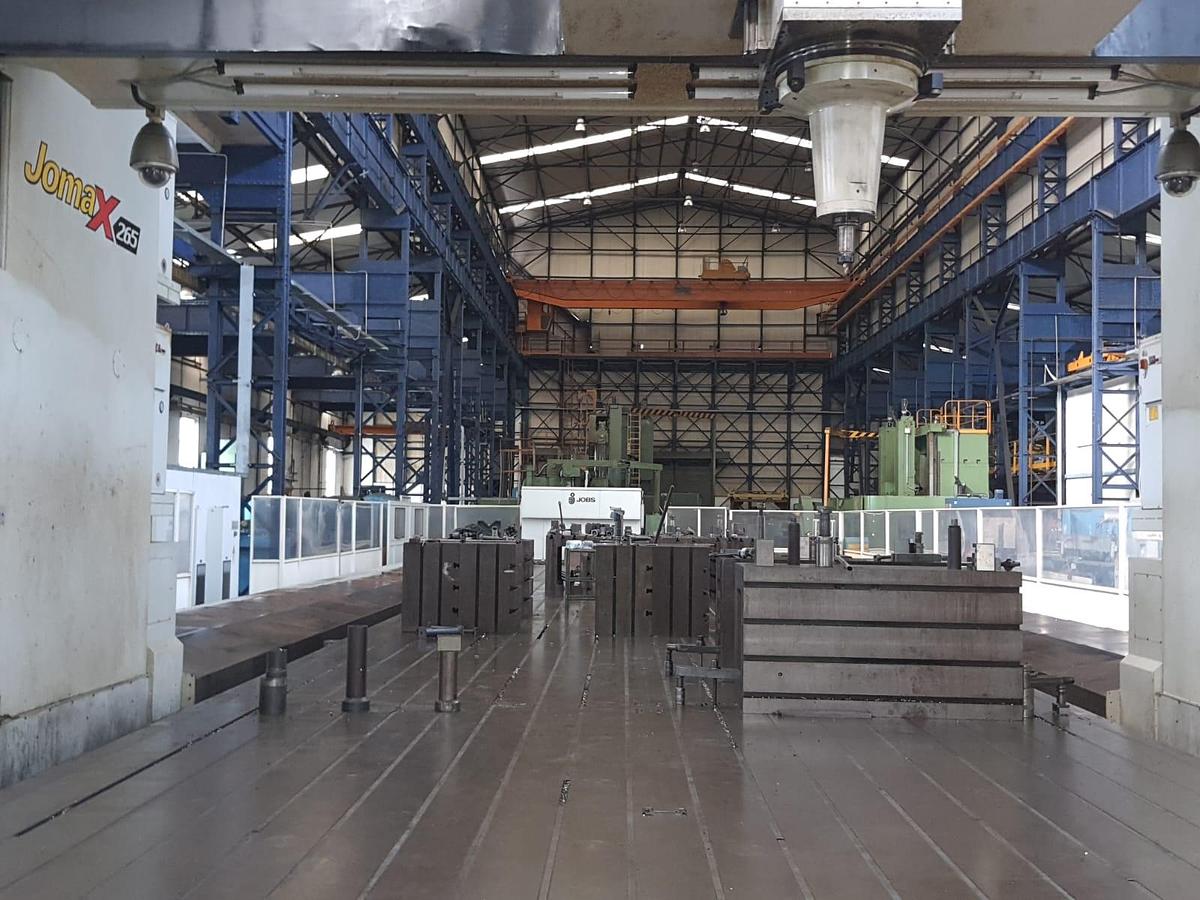

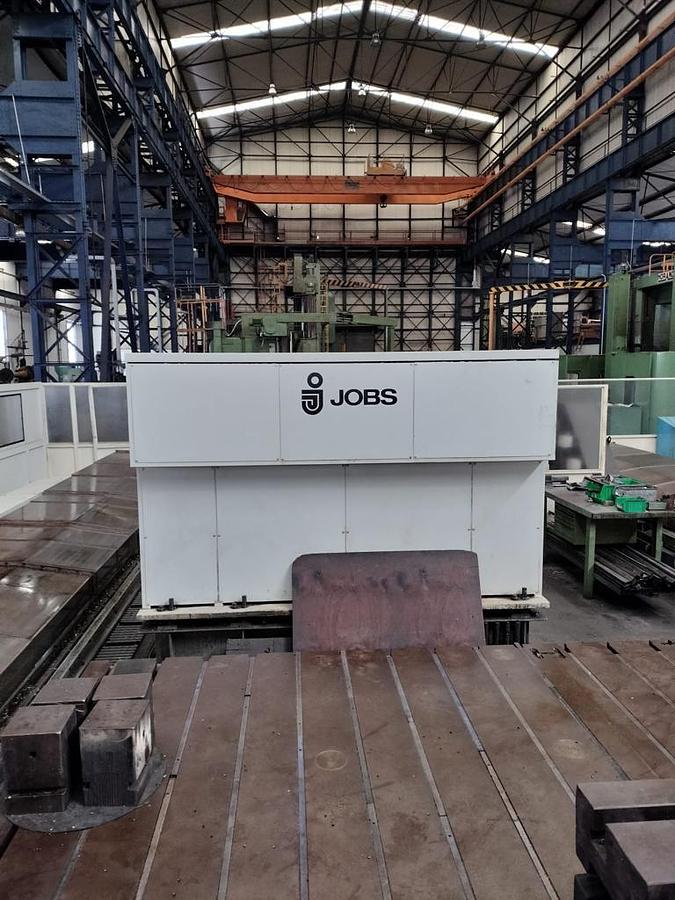

Floor plates size                                                            25,000 x 5,000 mm (10 panel fields)

Floor plates load/floor plate max.                            10,000 kg
