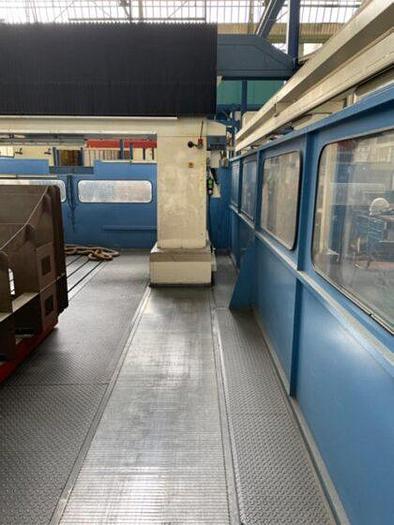

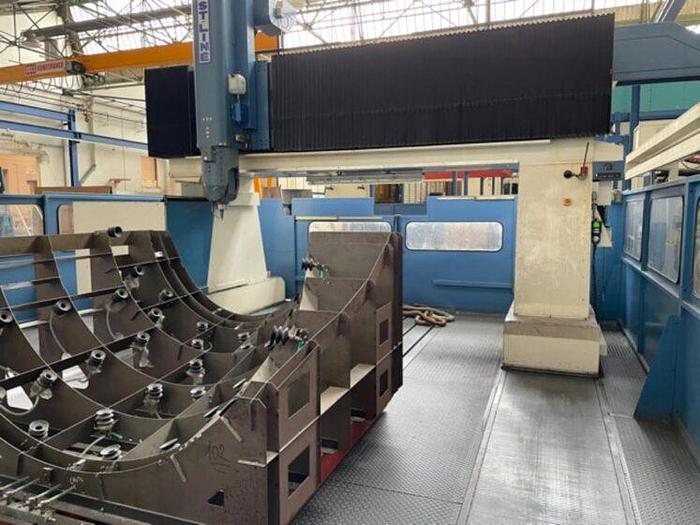

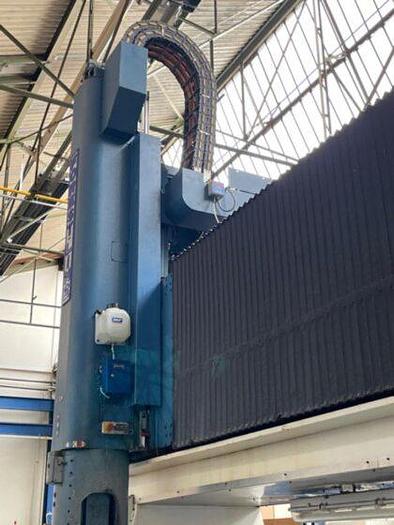

FOREST LINE MINUMAC TYPE AXIUM POWER CNC 5-AXIS GANTRY TYPE MILLING MACHINE
FOREST LINE MINUMAC TYPE AXIUM POWER CNC 5-AXIS GANTRY TYPE MILLING MACHINE
or
Call 770-509-0744
Description

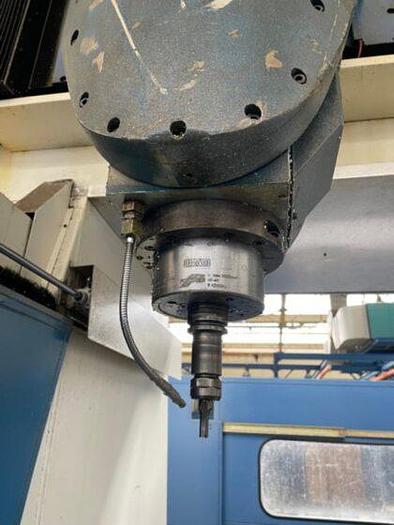

CNC NUM Axium Power 40 Station Automatic Tool Changer Fisher Spindle 30,000 rpm
Specifications
| Manufacturer | Forest Line |
| Model | Minumac Axium |
| Condition | Used |
| Stock Number | 10959 |
| Retrofit | 2013 |
| Spindle speeds | 12,000 rpm |
| X axis travel | 13,000 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 1,500 mm |
| Spindle power | 10 - 12 kW |
| A axis | +110°/-110° |
| C axis | +400°/-400° |
| Spindle taper | HSK 50 |
| X, Y, Z axis feeds | 20,000 mm/min |
| A, C axis feeds | 3,600 deg/min |
| Machine dimensions | 16,600 x 12,000 x 6,000 mm |
