Doosan DCM 3260F CNC Double Column Multi Machining Center
No longer available
Doosan DCM 3260F CNC Double Column Multi Machining Center
Description

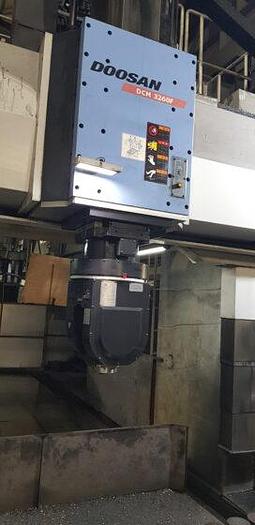

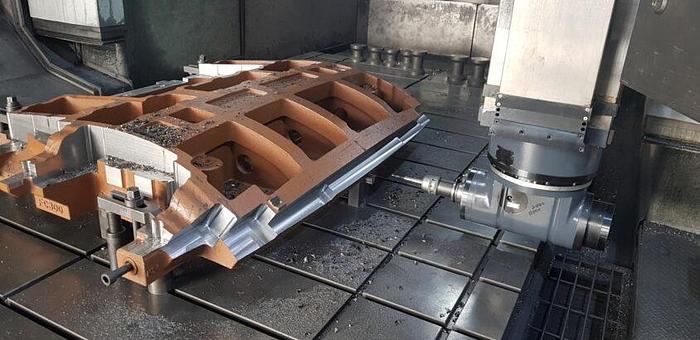

Fanuc 31iA CNC Control 40 Position Automatic Tool Changer 4 Automatic Attachment Changer (AAC) Universal indexing head (4000rpm, B/C axis, 1 degree indexing) 90 degree angle head Extension 10000 rpm, 6000 rpm Automatic tool length measurement TS27R Chip conveyor
Specifications
| Manufacturer | Doosan |
| Model | DCM 3260F |
| Year | 2016 |
| Condition | Used |
| Stock Number | 10909 |
| Between columns | 3,200 mm |
| Spindle speeds | 6,000 rpm |
| Machining height | 2,350 mm |
| X axis travel | 6,250 mm |
| Y axis travel | 3,700 mm |
| Z axis travel | 700 mm |
| Table dimensions | 2,700 x 5,800 mm |
| Table capacity | 36 Ton |
| W axis travel | 1,100 mm |
| C axis | 360 Degree |
| Ram size | 380 x 380 mm |
| Spindle motor | 22/25 kW |
| Rapid traverse x axis | 16 m/min |
| Rapid traverse y axis | 20 m/min |
| Rapid traverse z axis | 15 m/min |
| Rapid traverse w axis | 3 m/min |
| Machine dimensions | 15,750 x 8,650 x 6,700 mm |
