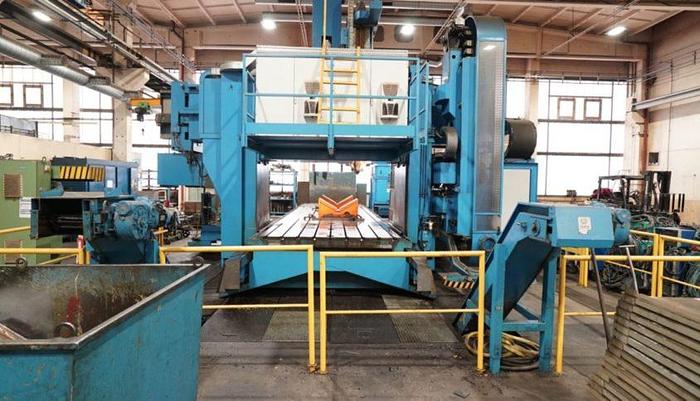

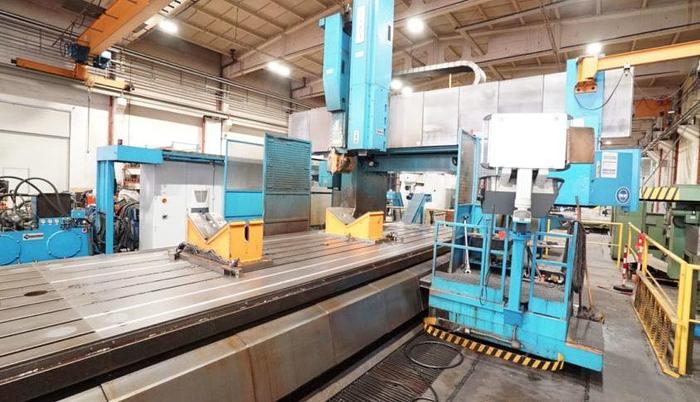

Pietro Carnaghi FPM 251280-24 CNC Gantry Double Column Milling Machine
Pietro Carnaghi FPM 251280-24 CNC Gantry Double Column Milling Machine
or
Call 770-509-0744
Description

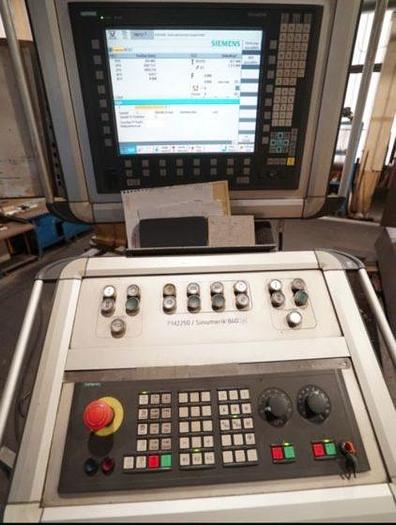

Siemens 840D SL CNC Control 60 Position Automatic Tool Changer
Spindle speeds (s2), infinitely variable 8 - 2,700 rpm Integrated Faceplate for Turning
Specifications
| Manufacturer | Pietro Carnaghi |
| Model | FPM 251280-24 |
| Condition | Used |
| Stock Number | 10891 |
| Retrofit | 2012 |
| Between columns | 2,500 mm |
| Spindle speeds | 2,700 rpm |
| Machining height | 1,200 mm |

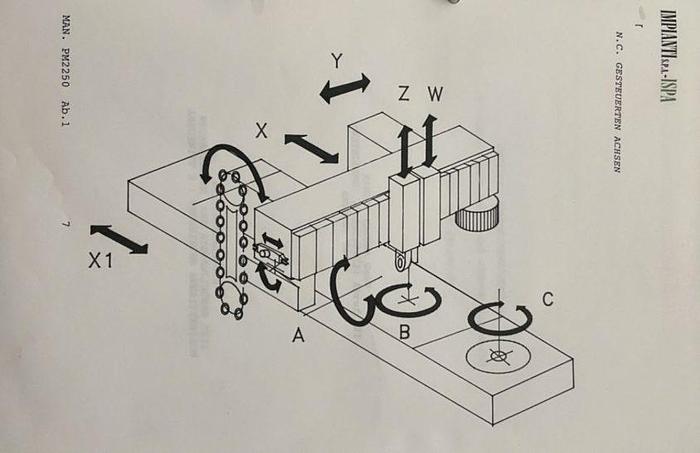

| X axis travel | 8,000 mm |
| Y axis travel | 3,400 mm |
| Z axis travel | 1,100 mm |
| Table dimensions | 2,250 x 8,000 mm |

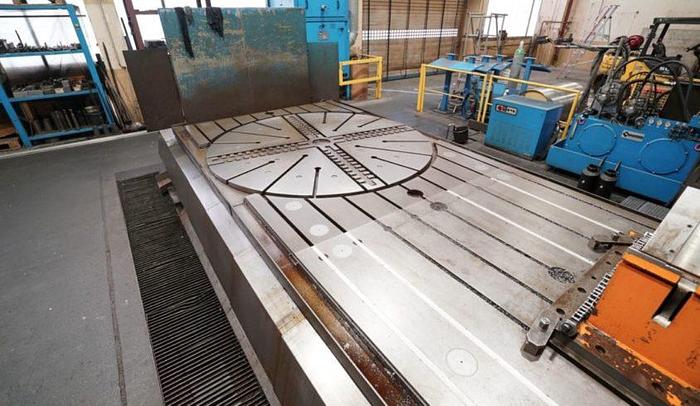

| Turn table diameter | 2,400 mm |
| Table capacity | 5 t/m² |
| W axis travel | 1,250 mm |
| Total connected load | 90 kW |
| Table capacity turn table | 10 Ton |
| Height between table level and turning support | 1,555 mm |
| Feed speed of the gantry | 0 - 1,000 mm/min |
| Rapid adjustment of gantry | 10,000 mm/min |
| Tool holder | ISO 50 |
| Spindle motor power, stepless | 35 kW |
| Torque at the spindle | 210 rpm:1600 Nm 210 rpm:1600 Nm |
| Feed speed of the w axis | 1,000 mm/min |
| Ram size | 240 x 240 mm |
| Minimum drill diameter | 280 mm |
| Max rotary impact | 45000 N |
| Rotating speed of the faceplate (s1), 2 steps | 0.2 - 70 rpm |
