HNK HPM-30 CNC Double Column Heavy Duty Machining Center
HNK HPM-30 CNC Double Column Heavy Duty Machining Center
or
Call 770-509-0744
Description

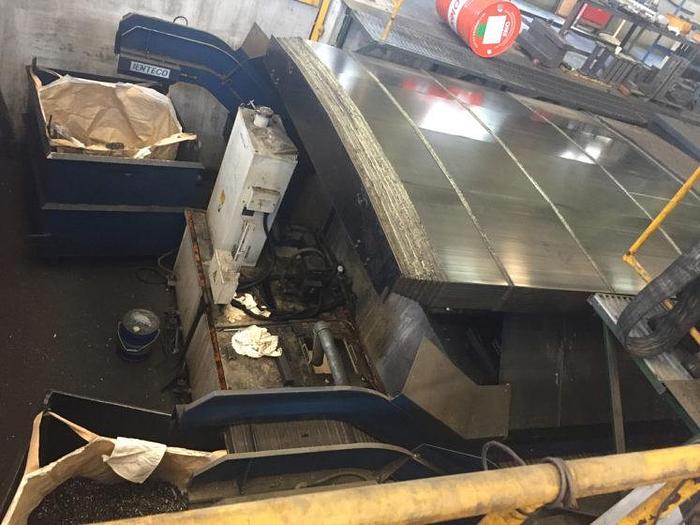

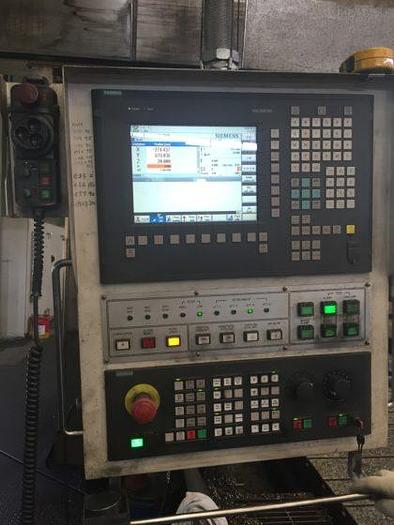

Siemens 840D CNC Control System (TSC) Through Spindle Coolant 30 Bar External Coolant System AAC (Automatic Attachment Changer) For 3 Attachments Universal Milling Head Extension Head Right Angle Milling Head Linear Scales X, Y, Z, W-axis 2 x Chip Conveyor
Specifications
| Manufacturer | HNK |
| Model | HPM-30 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 10550 |

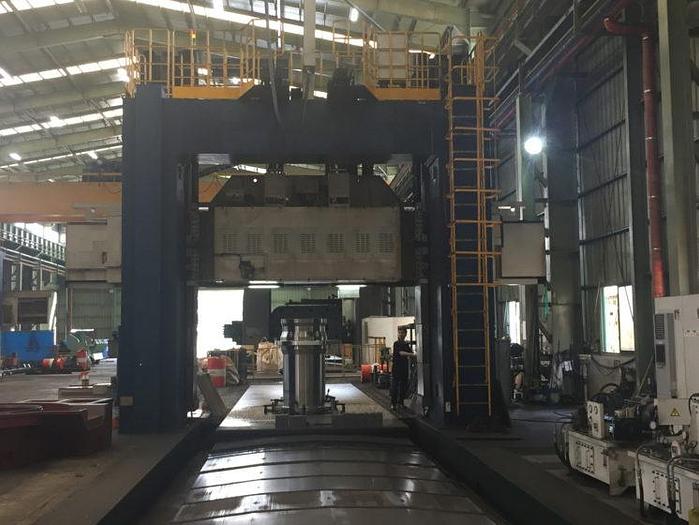

| Between columns | 4,000 mm |
| Spindle speeds | 2,500 rpm |
| Machining height | 3,550 mm |
| X axis travel | 12,250 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,000 mm |
| Table dimensions | 3,000 x 12,000 mm |
| Table capacity | 40 Ton |
| W axis travel | 2,500 mm |

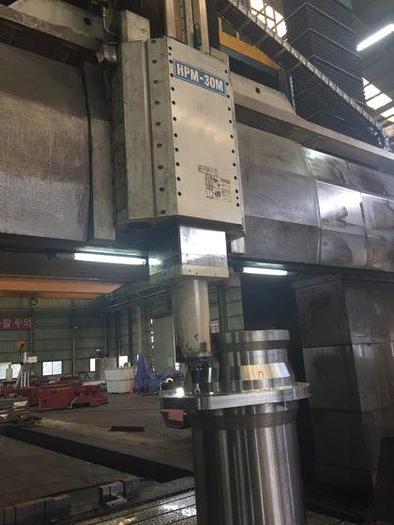

| Ram size | 400 x 400 mm |
| Spindle taper | ISO 50 |
| Spindle motor - ac | 31 kW |
