HNK HPM-45L CNC Double Column Heavy Duty Plano Milling Machine
HNK HPM-45L CNC Double Column Heavy Duty Plano Milling Machine
or
Call 770-509-0744
Description

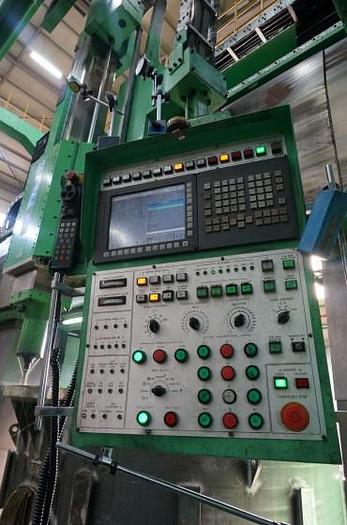

Fanuc 31iA MB CNC Control System – 10.4″ TFT LCD Screen Through Spindle Coolant – Pump 30 BAR External Coolant System 4 Attachments Right Angle Milling Head Universal Angular Milling Head Compact Angular Milling Head Extensions Milling Head Operator Elevator Heidenhain Linear Scale – X,Y,Z,W Axis Chip Conveyor – Hinge Type (2 Pieces)
Specifications
| Manufacturer | HNK |
| Model | HPM-45L |
| Year | 2011 |
| Condition | Used |
| Stock Number | 10026 |
| Between columns | 5,000 mm |
| Spindle speeds | 1,000 rpm |
| Machining height | 5,000 mm |
| X axis travel | 12,000 mm |
| Y axis travel | 6,300 mm |
| Z axis travel | 2,200 mm |
| Table dimensions | 4,500 x 12,000 mm |
| Table capacity | 120 Ton |
| W axis travel | 3,000 mm |
| Ram size | 500 x 500 mm |
| Spindle taper | ISO 50 |
| Spindle motor | 60/75 kW |
