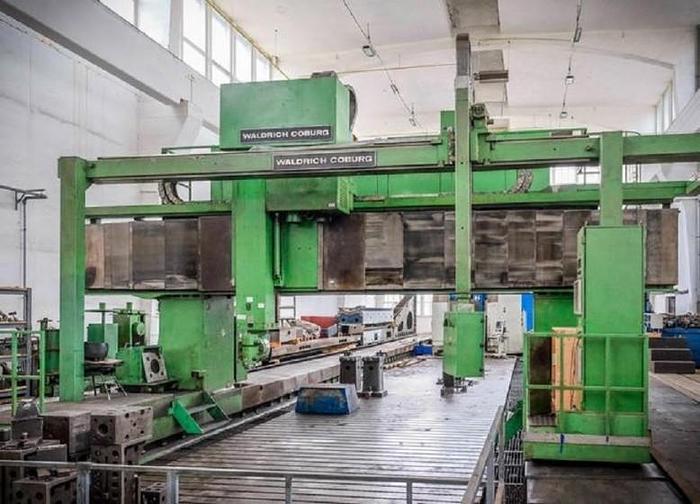

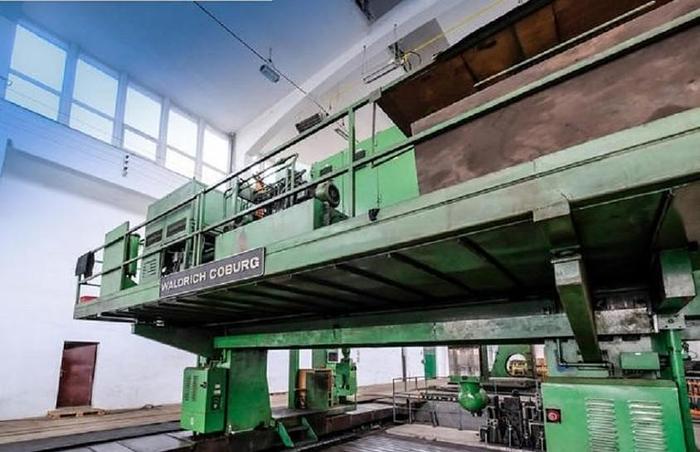

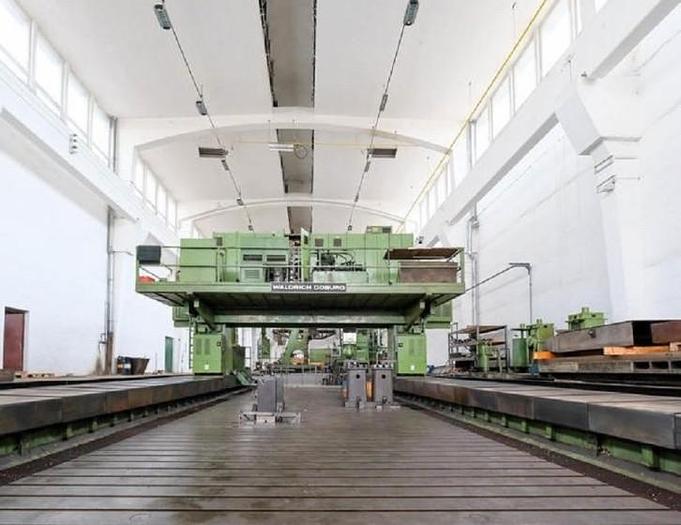

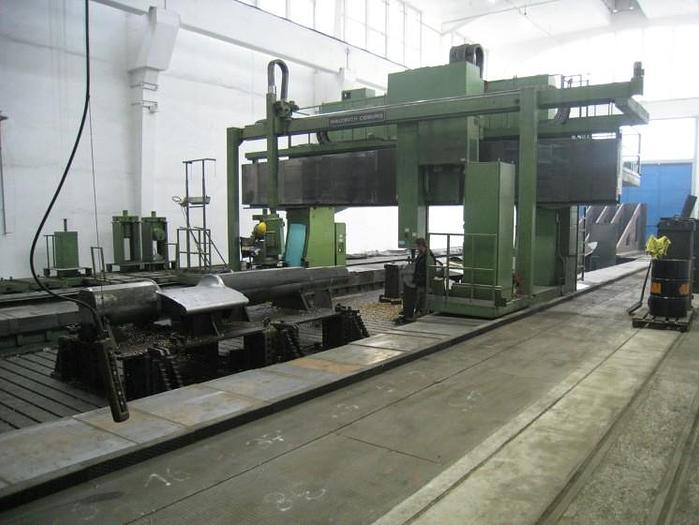

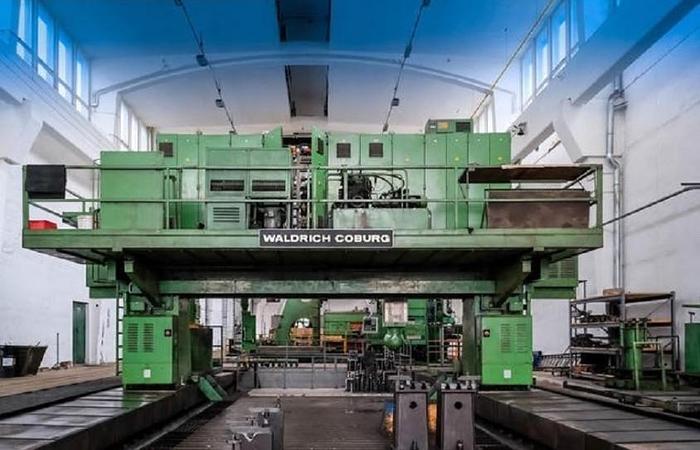

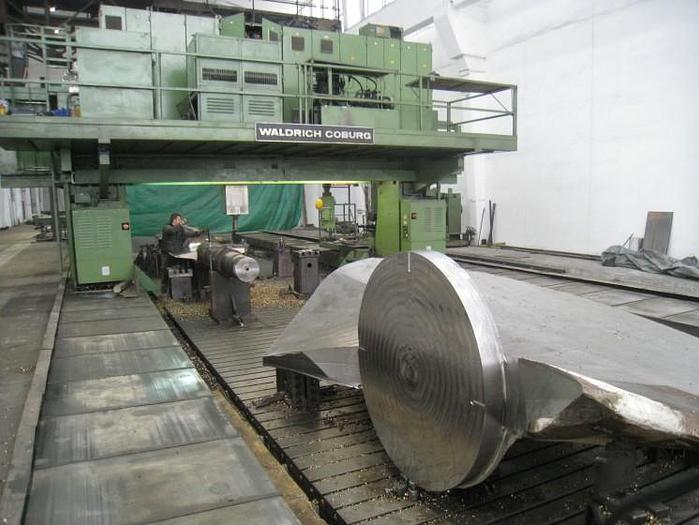

Waldrich Coburg 17-10 GMF 450 CNC Portal Gantry Milling Machine
![Used Waldrich Coburg 17-10 GMF 450 CNC Portal Gantry Milling Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/f8759854f8ad6f5af09dd5c3371b2d3c/large-Waldrich-Coburg-1-747x560.jpg)
Waldrich Coburg 17-10 GMF 450 CNC Portal Gantry Milling Machine
orCall 770-509-0744
Description

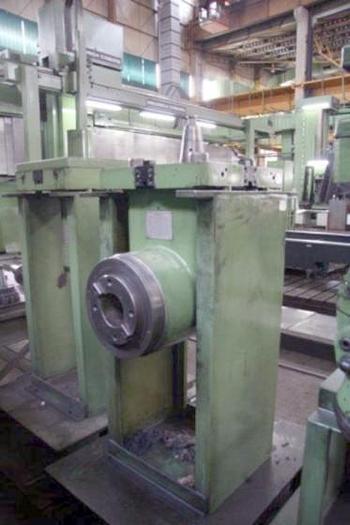

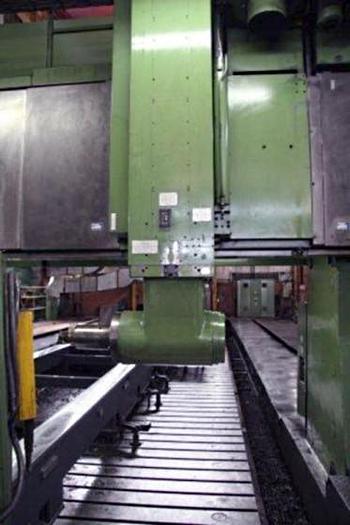

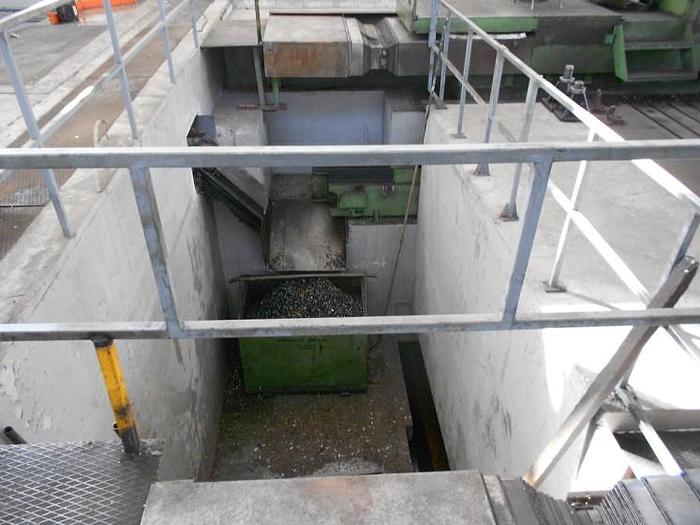

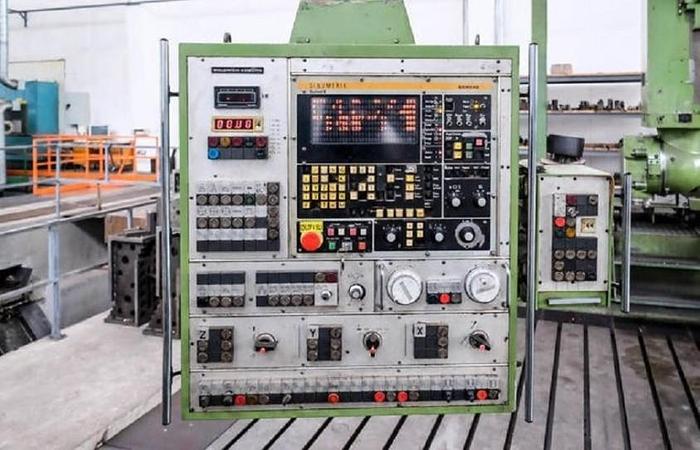

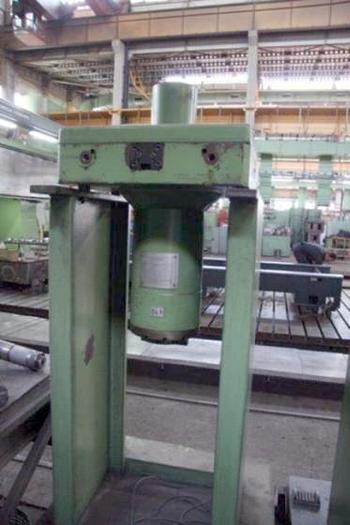

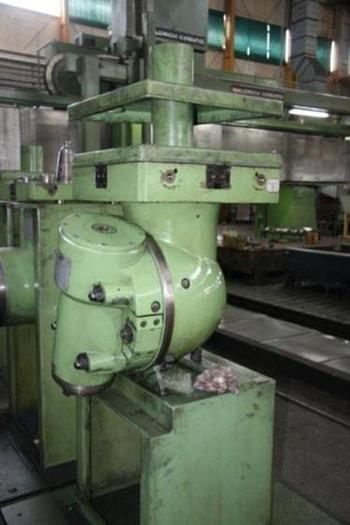

Siemens Sinumerik 8M CNC Control Universal Milling Head – UFU H250 SZ 410 F17 Right Angle Milling Head – WFU 800 SZ 450 F17 Straight Milling Head – VL 300 SZ 55 F17 Wagon For Head Changer & Tool Pick Up 2 Chip Conveyors – Full Length Coolant System Hydrostatic Bearing Way Covers
Specifications
Manufacturer | Waldrich Coburg |
Model | 17-10 GMF 450 |
Year | 1988 |
Condition | Used |
Stock Number | 10115 |
Between columns | 5,500 mm |
Spindle speeds | 2,000 rpm |
Machining height | 1,900 mm |
X axis travel | 24,500 mm |
Y axis travel | 5,500 mm |
Z axis travel | 1,400 mm |
Table dimensions | 4,500 x 24,750 mm |
Spindle diameter | 220 mm |

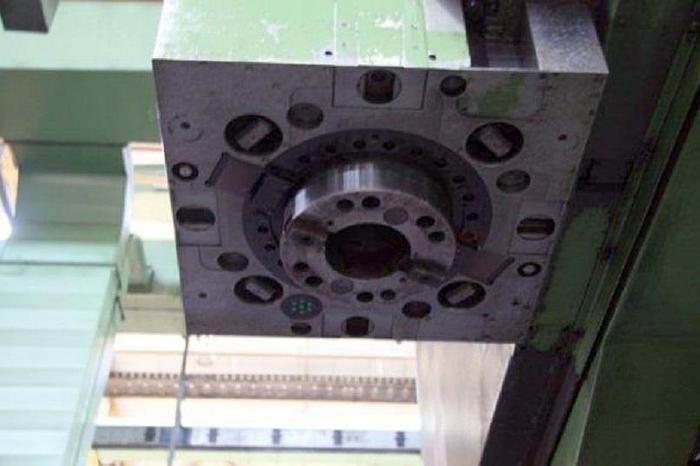

Ram size | 500 x 500 mm |
Spindle taper | ISO 60 |
Spindle motor | 75 kW |
Total power for machine | 200 kW |
Rapid traverse x,y axis | 10,000 mm/min |
Rapid traverse z axis | 6,000 mm/min |
Machine dimensions | 35 x 12 x 6.5 m |
