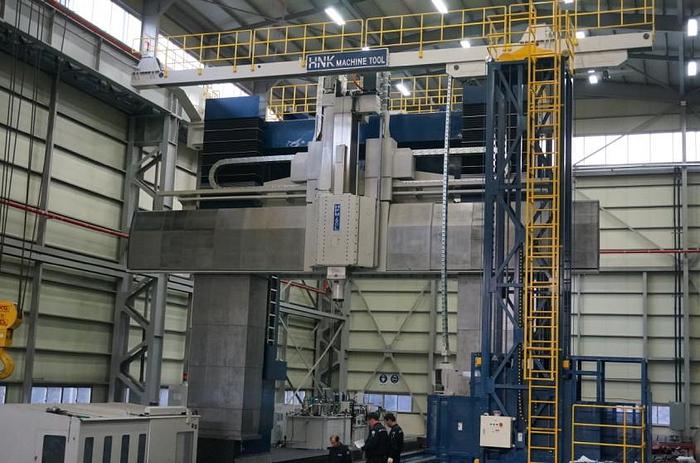

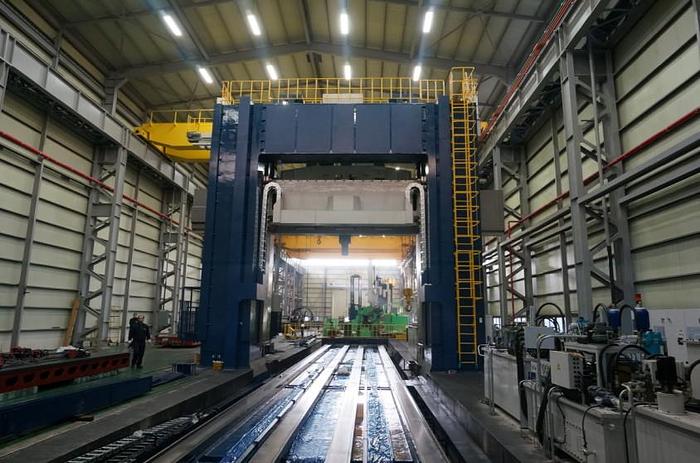

HNK HPM-50L CNC Double Column Heavy-Duty Machining Center
HNK HPM-50L CNC Double Column Heavy-Duty Machining Center
or
Call 770-509-0744
Description

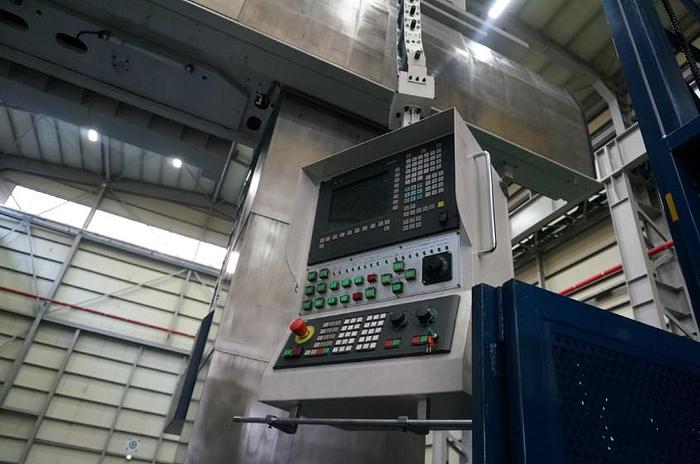

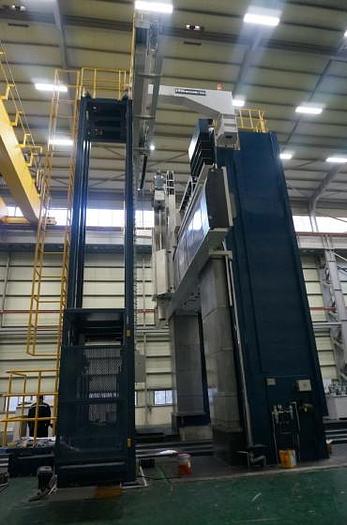

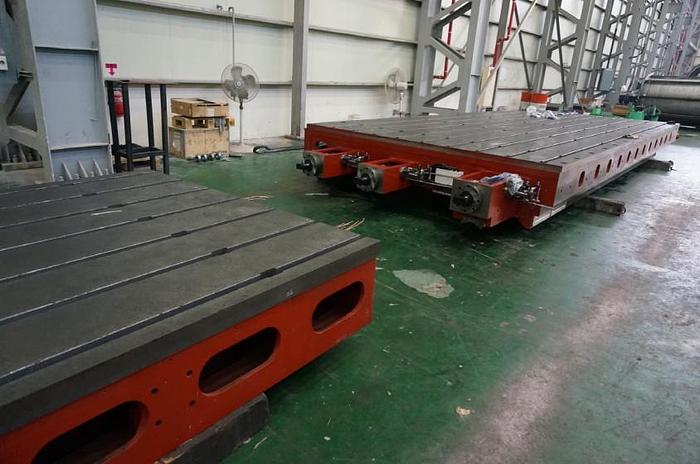

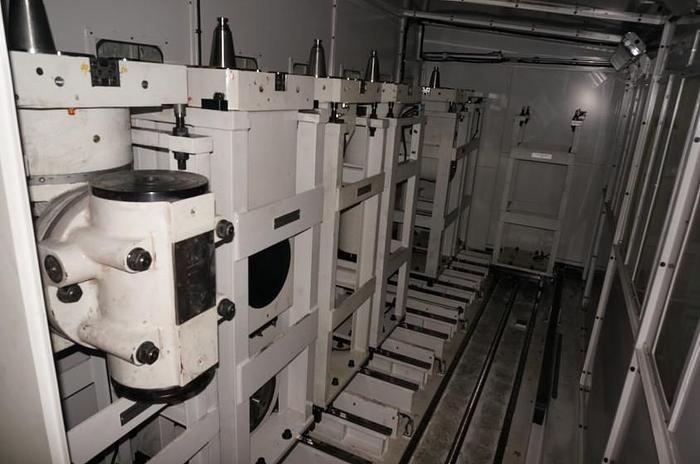

Siemens 840D CNC Control System Through Spindle Coolant (Pump 30 BAR) External Coolant system Automatic Attachment Changer – 6 Attachments 1 Cover Right Angle Attachment – 600 mm 23.6″ Universal Angular Attachment – 700 mm 27.6″ Compact Angular Attachment – 600 mm 23.6″ Compact Angular Attachment – 1,350 mm 53.2″ Extensions Attachment – 1,100 mm 43.3″ Operator Elevator Heidenhain Linear Scale – X,Y,Z,W-Axis Hinge Type Chip Conveyor (2 Pieces) 4 Tables
Specifications
| Manufacturer | HNK |
| Model | HPM-50L |
| Year | 2014 |
| Condition | Used |
| Stock Number | 10025 |
| Between columns | 5,600 mm |
| Spindle speeds | 1,000 rpm |
| Machining height | 6,200 mm |
| X axis travel | 16,000 mm |
| Y axis travel | 7,000 mm |
| Z axis travel | 2,200 mm |

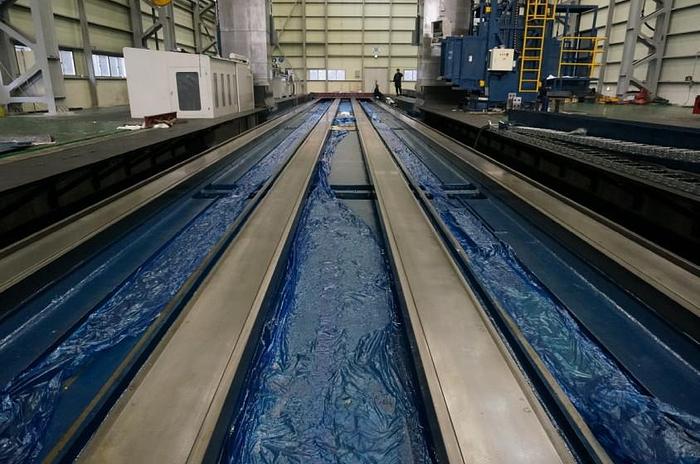

| Table dimensions | 5,000 x 16,000 mm |
| Table capacity | 150 Ton |
| W axis travel | 4,000 mm |
| Spindle diameter | 160 mm |
| Ram size | 500 x 500 mm |
| Spindle taper | ISO 60/50 |
| Spindle motor | 100 kW |
| Feed rate - rapid traverse - x,y axis | 8,000 mm/min |
| Feed rate - rapid traverse - z axis | 6,000 mm/min |
| Feed rate - rapid traverse - w axis | 2,000 mm/min |
| Cutting feeds - x,y,z axis | 1 - 3,000 mm/min |
| Cutting feeds - w axis | 1 - 2,000 mm/min |
