Schiess Vertimaster V16 - PWS CNC Vertical Boring & Milling Machine with Pallet Changing System
Schiess Vertimaster V16 - PWS CNC Vertical Boring & Milling Machine with Pallet Changing System
orCall 770-509-0744
Description

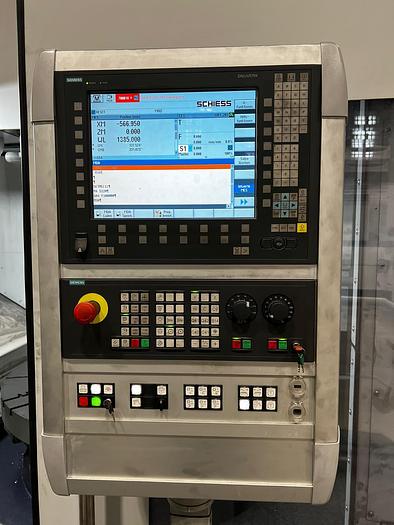

Siemens Sinumerik 840D SL CNC Control

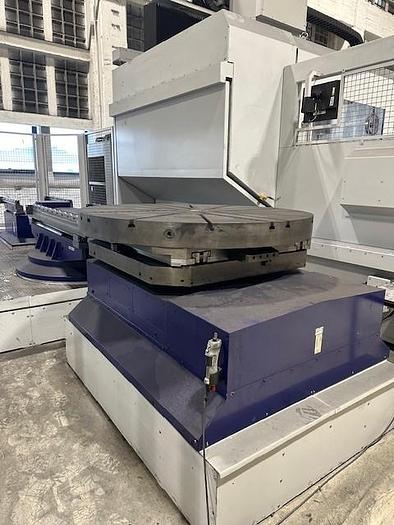

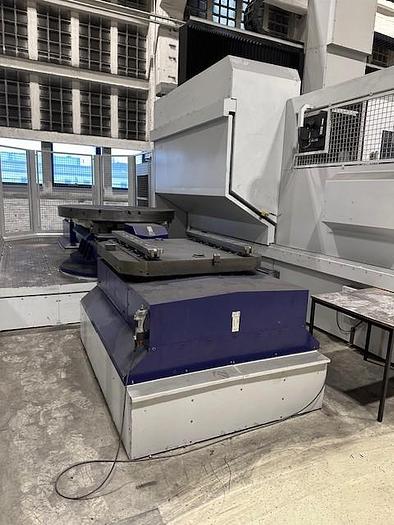

Automatic Pallet Changing System – 2 x Pallets – 1,600 mm
NEW Machine in 2023

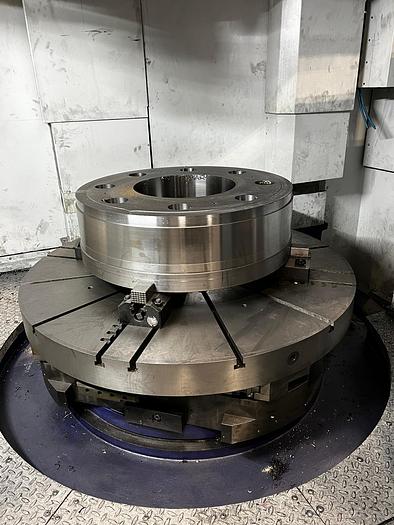

4 Pc Jaw Boxes – 55 kN Clamping Force per Jaw

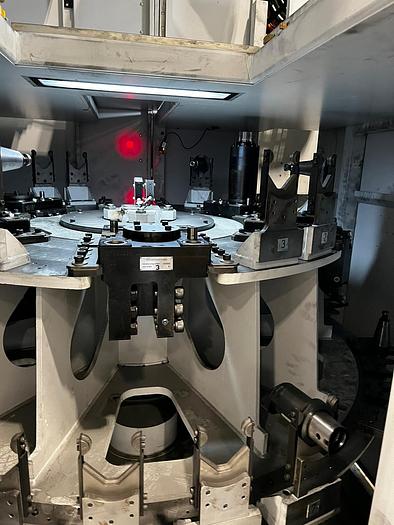

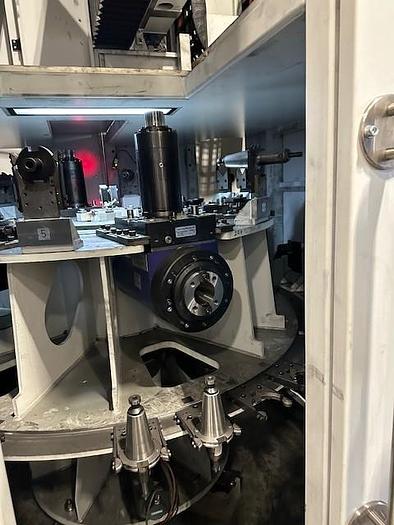

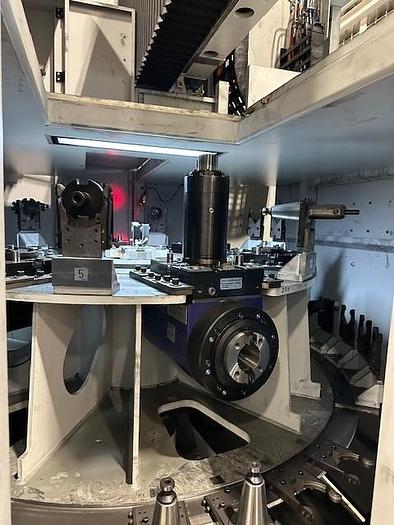

Automatic Attachment for 6 Heads and Tool Changer 32 positions
Straight drilling and milling head GB 1
Angle drilling and milling head WB 1
Turning tool holder 40 x 40 mm
Horizontal turning tool holder H C8-CR
Horizontal turning tool holder H C8-CL
Vertical turning tool holder V C8

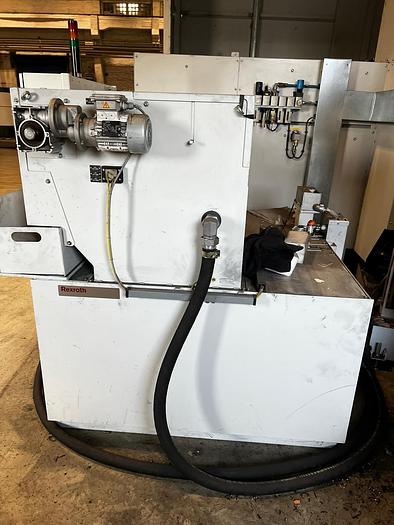

Coolant equipment
Chip conveyor

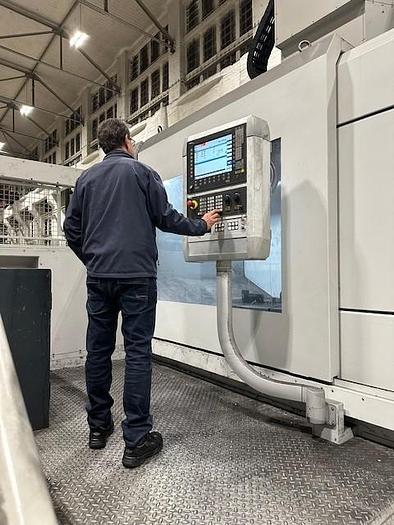

Handheld terminal HT2
Specifications
| Manufacturer | Schiess |
| Model | Vertimaster V16 - PWS |
| Year | 2023 |
| Condition | Used |
| Stock Number | 11029 |

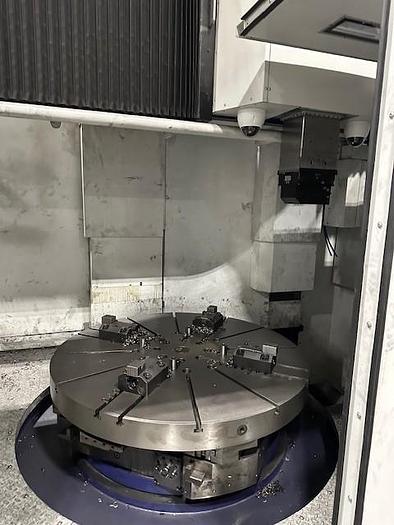

| Table diameter | 2,000 mm |
| Swing | 2,000 mm |
| Turning height | 1,300 mm |
| Table capacity | 12 Ton |
| Table turn speed | 350 rpm |
| Live spindle speed | 3,500 rpm |

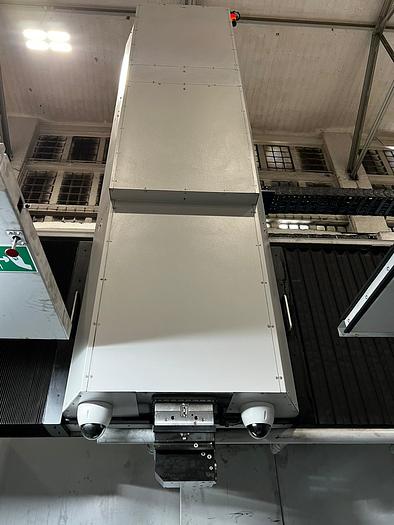

| Z axis ram travel | 1,400 mm |
| W axis travel | 700 mm |
| Ram cross section | 280 x 240 mm |
| Distance face plate surface to spindle nose with GB 1 Head | 1,050 mm |
| Max Torque for Turning | 27,000 Nm |
| Table turn speed milling | 5 rpm |
| Cross Rail Positioning Speed | 3,000 mm/min |
| Cross Rail Max Holding Force | 36 kN |
| Ram minimum bore to enter | 400 mm |
| Ram max feed rate | 2,000 mm/min |
| Ram max cutting force for Turning | 36 kN |
| Milling drive power S1 (100% duty cycle) | 46 kW |
| Max Spindle Torque | 1,200 Nm |
