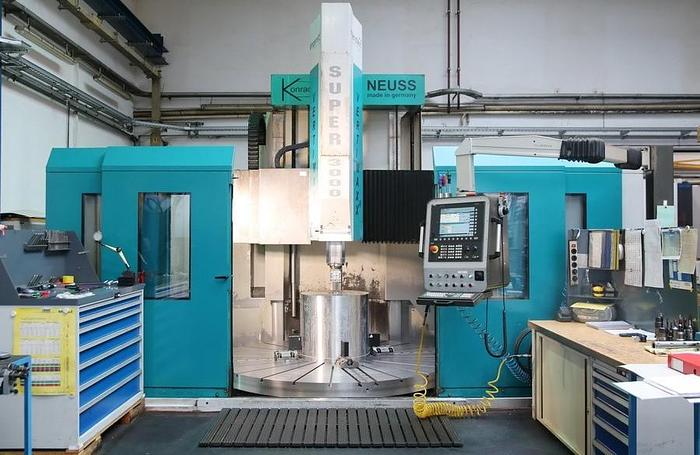

Konrad Seidler Vertimaxx 3000 CNC Vertical Turning & Boring Machine with Live Spindle
![Used 2010](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/48b756962c478a5af264c22372b88310/large-used-2010.jpg)
Konrad Seidler Vertimaxx 3000 CNC Vertical Turning & Boring Machine with Live Spindle
Description

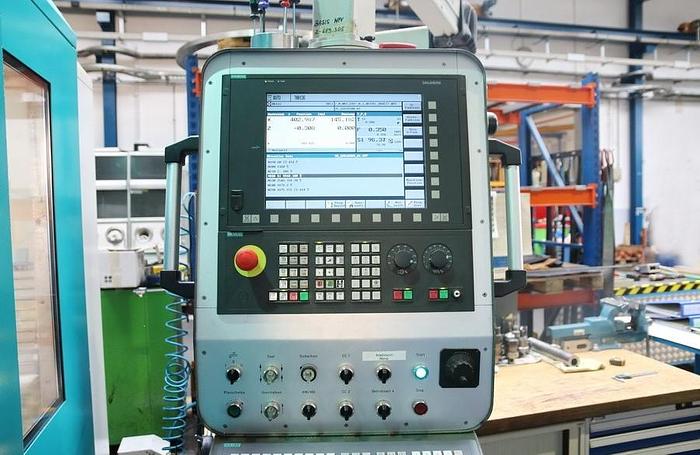

Siemens 840D ShopTurn CNC Control

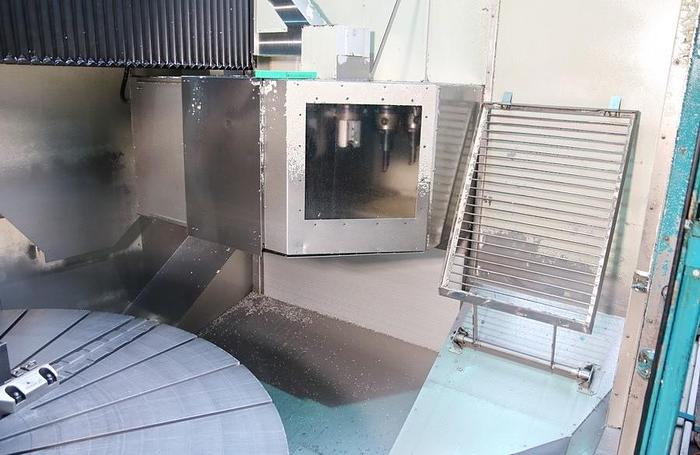

16 Position Automatic Tool Changer

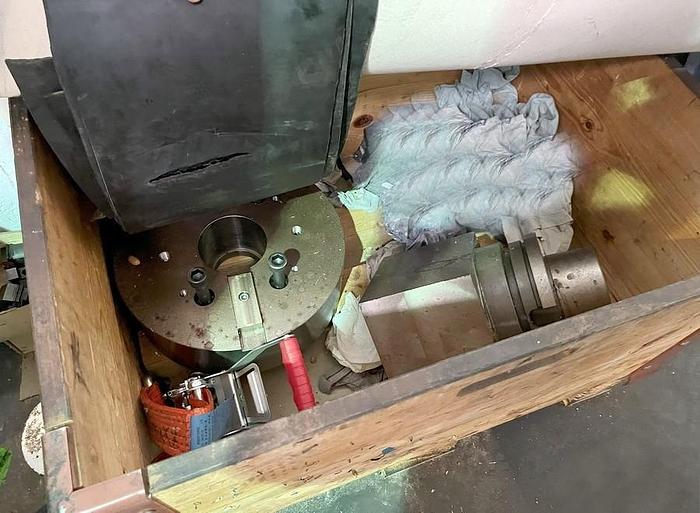

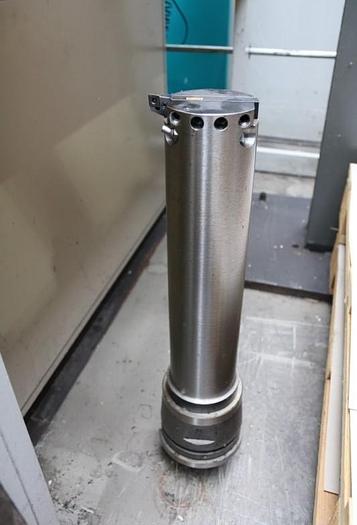

Including clamping material, various tool holders
Version with water-cooled drive motor for the face plate drive including cooler

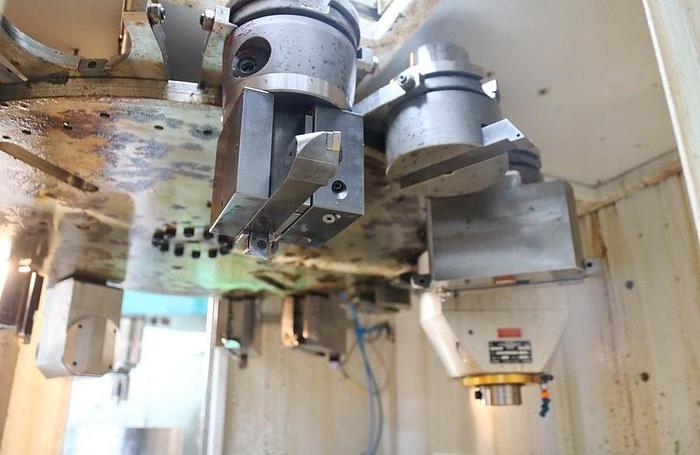

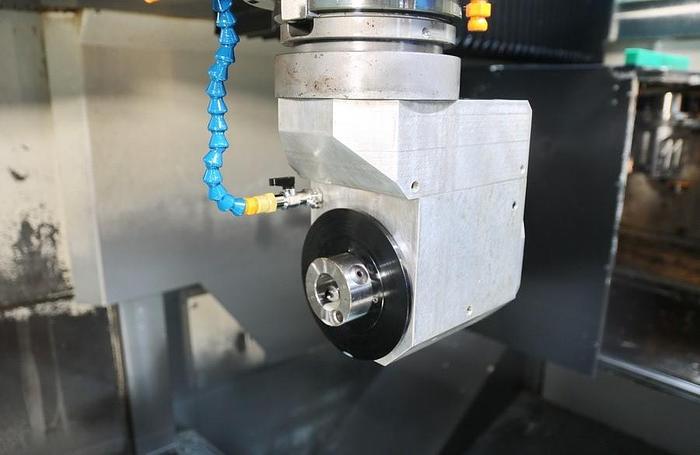

1x angle bore and milling head 90°
Drive spindle according to SEIDLER HSK 160B
Output spindle ABS 63
Gear ratio i 1:1
Max. speed 2300 rpm (continuous operation: 2000 rpm)
Torque max. 360Nm
Cooling type: Input: through cone
Output: external and internal cooling
1x axial drilling and milling head
Drive spindle according to SEIDLER HSK 160B
Output spindle ABS 80
Gear ratio i 2:1
Max. spindle speed N 1600 rpm
Max. spindle torque 800 Nm
Cooling type: Input: through cone
Output: external and internal cooling
1x axial drilling and milling head
Drive spindle according to SEIDLER HSK 160B
Output spindle ABS 63
Gear ratio i 1:1
Max. speed N 3200 rpm
Max. torque 500 Nm
Cooling type: Input: through cone
Output: external and internal cooling
Coolant device
Includes a POSITECH (Swiss made) belt filter system made of stainless steel
2x pieces of coolant pumps for high and low pressure
Tool - internal cooling
Chip clearing system
Cross conveyor and 2 pieces going to the rear,
Drive. RUEZ as an articulated belt conveyor, discharge height above the ground 1200 mm,
Lowering from the ground (1400 mm)
Reinforced cross beam, with reinforced lifting spindles and worm gears roller rail guides in Version MR 65 below MR 55, driving. Installation of a counterweight approx. 4.5 t. with chain guide
Face plate bearing with reinforced bearing.
3 Bearing with KRW thrust bearing - large.
Additional king bearing FAG NNU 4972 SK and thrust bearing 51148 M P
Specifications
Manufacturer | Konrad Seidler |
Model | Vertimaxx 3000 |
Year | 2010 |
Condition | Used |
Stock Number | 11035 |

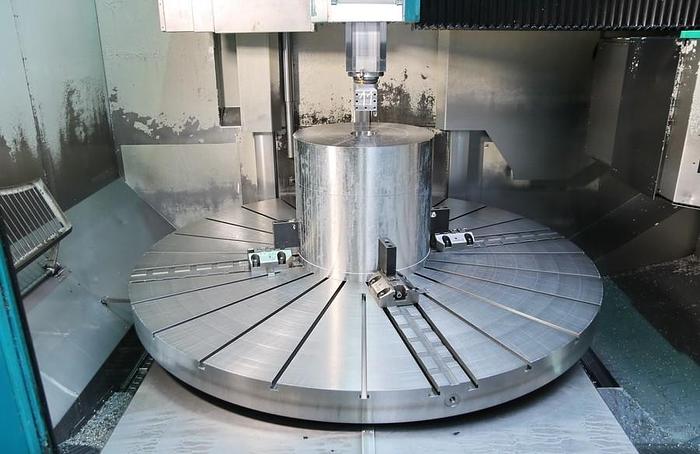

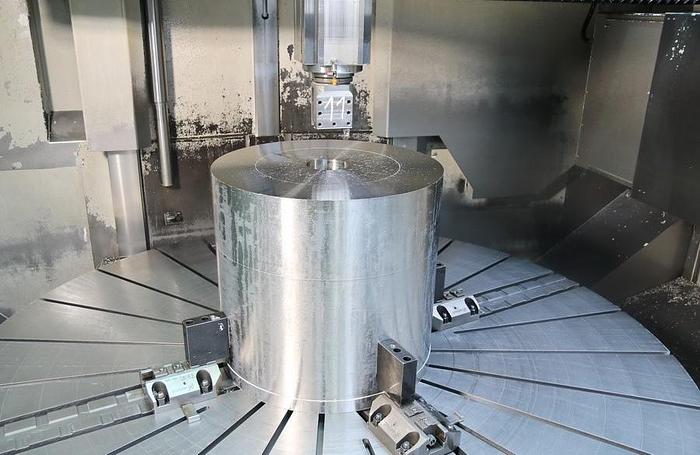

Table diameter | 3,000 mm |
Swing | 3,200 mm |
Turning height | 2,200 mm |
Table turn speed | 120 rpm |
Live spindle speed | 3,000 rpm |
W axis travel | 1,500 mm |
Z axis travel | 1,250 mm |
Power capacity | 75 kW |
Live spindle output | 22 kW |
Tool taper | HSK 160 (VDI 60) |
Machine dimensions | 6 x 6 x 3.5 m |
Machine weight | 36 Ton |
