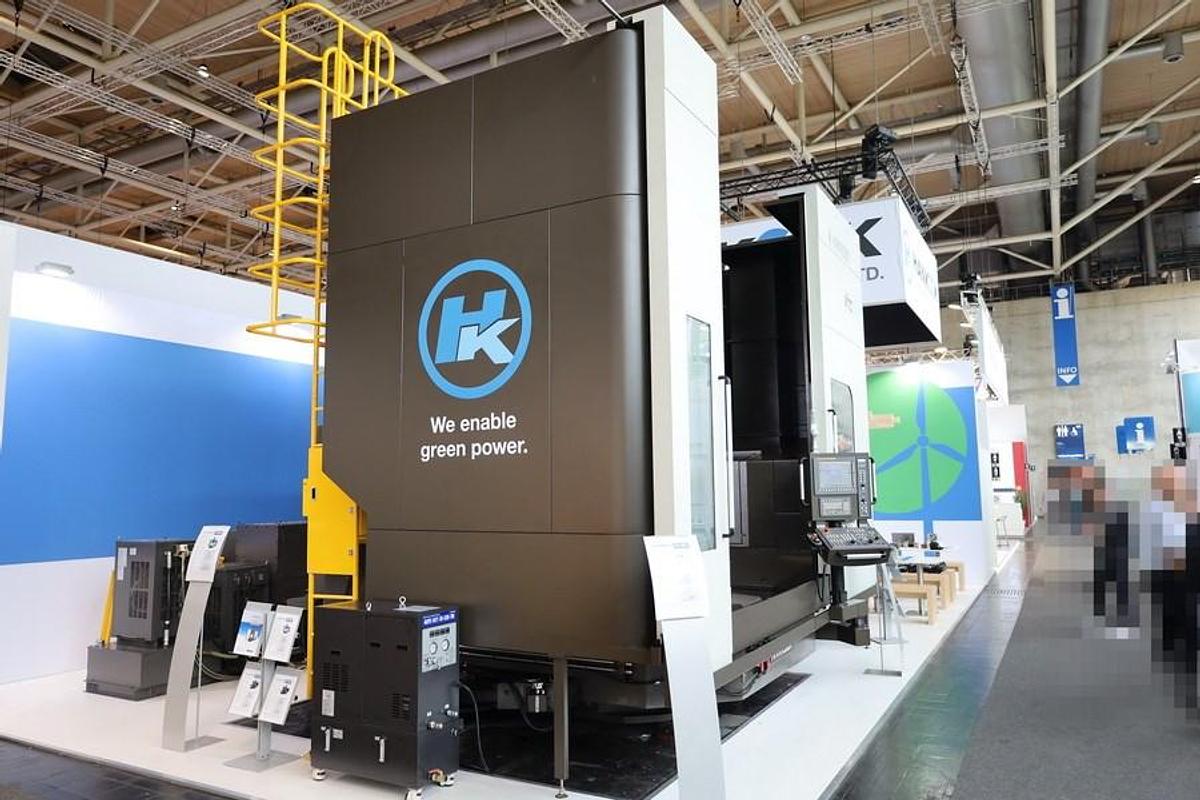

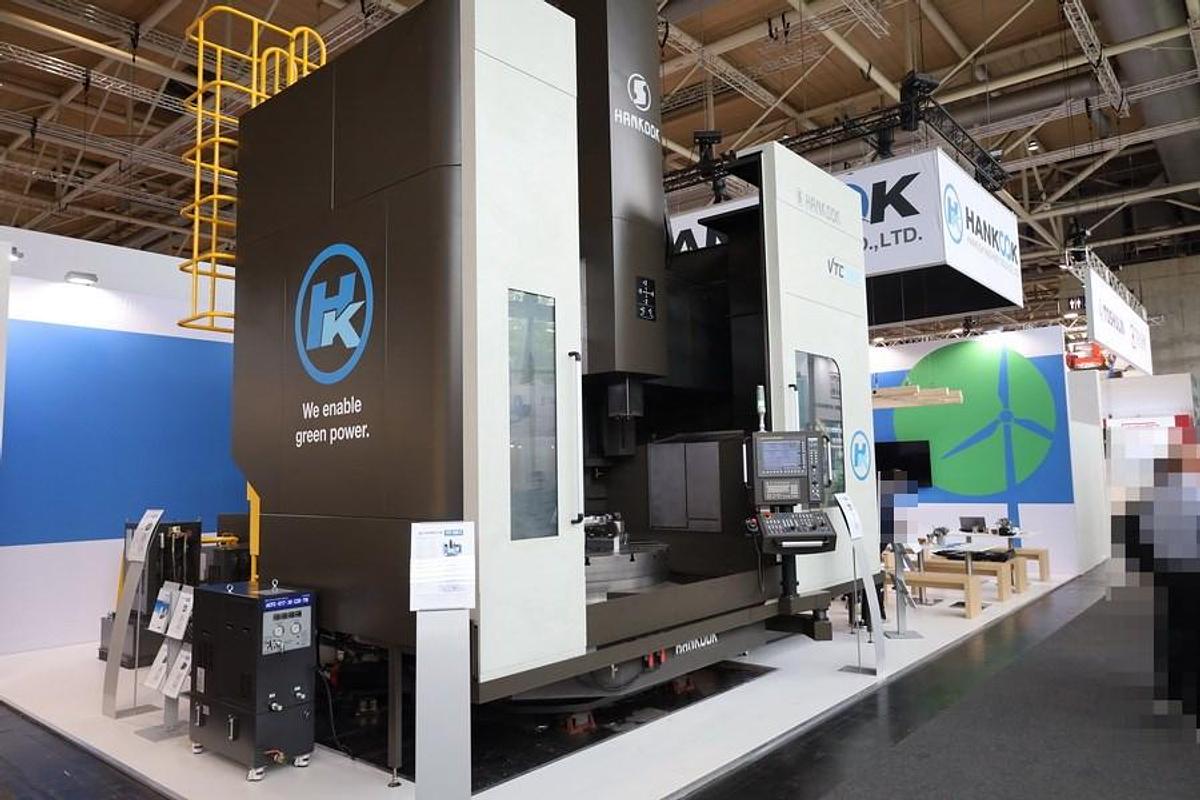

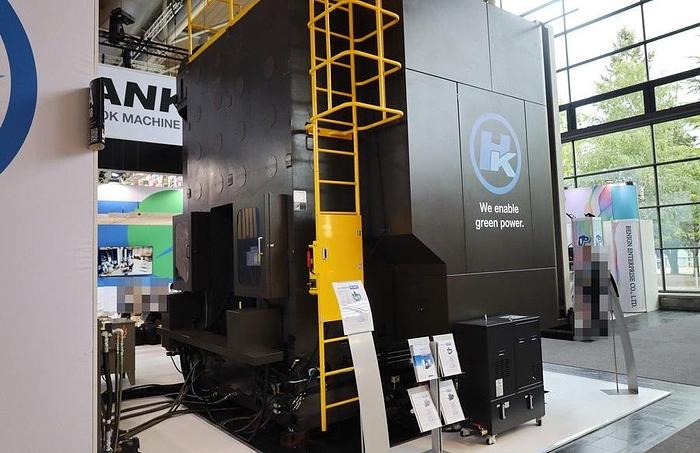

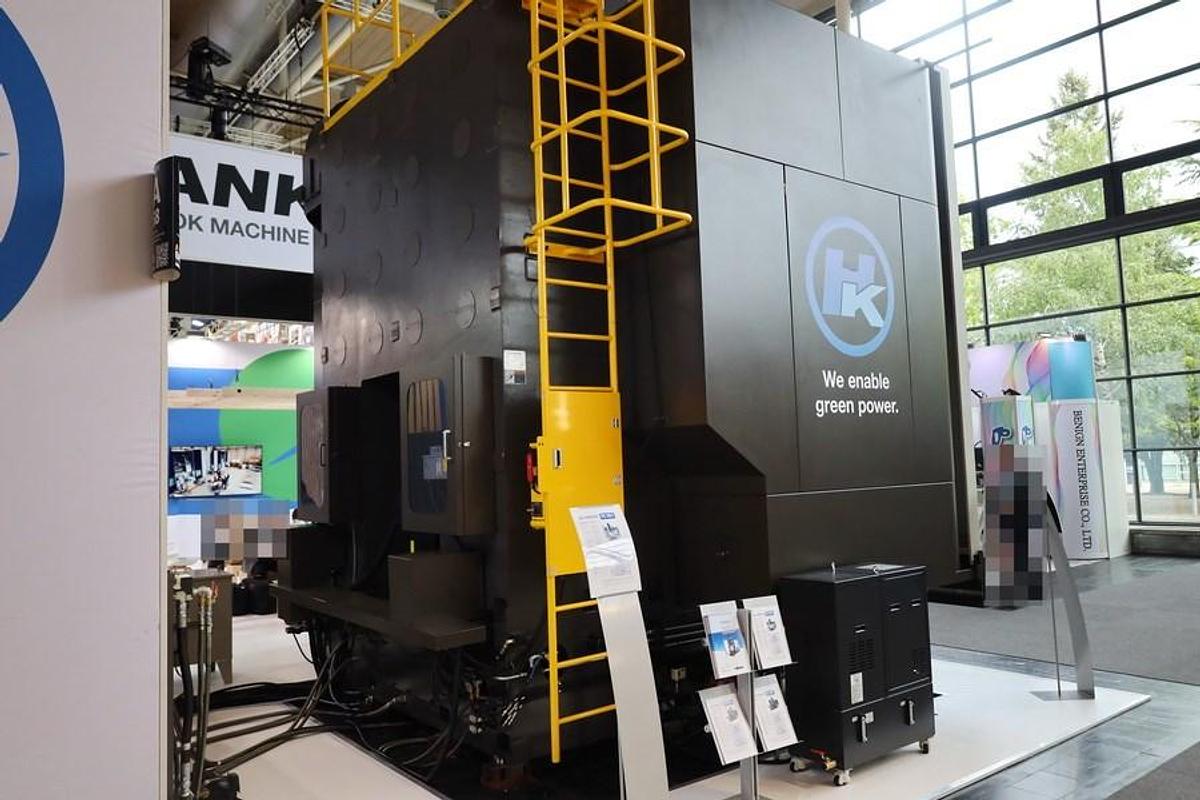

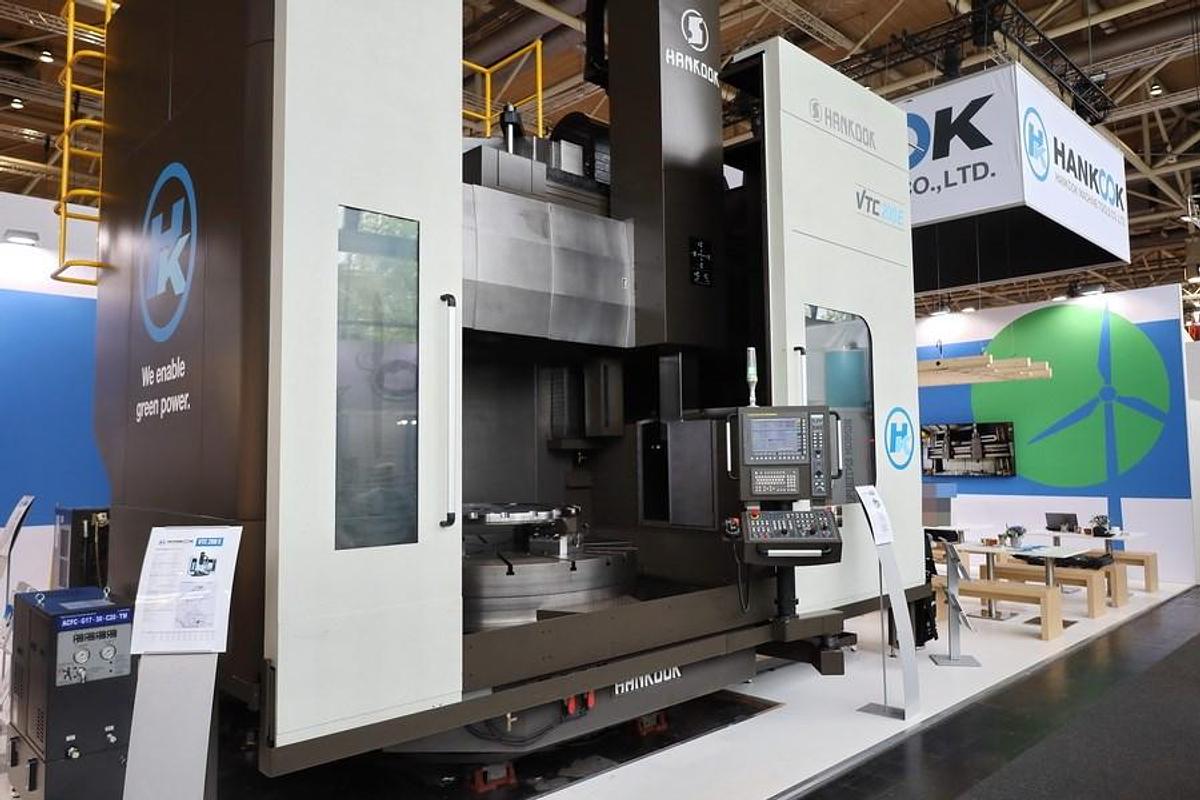

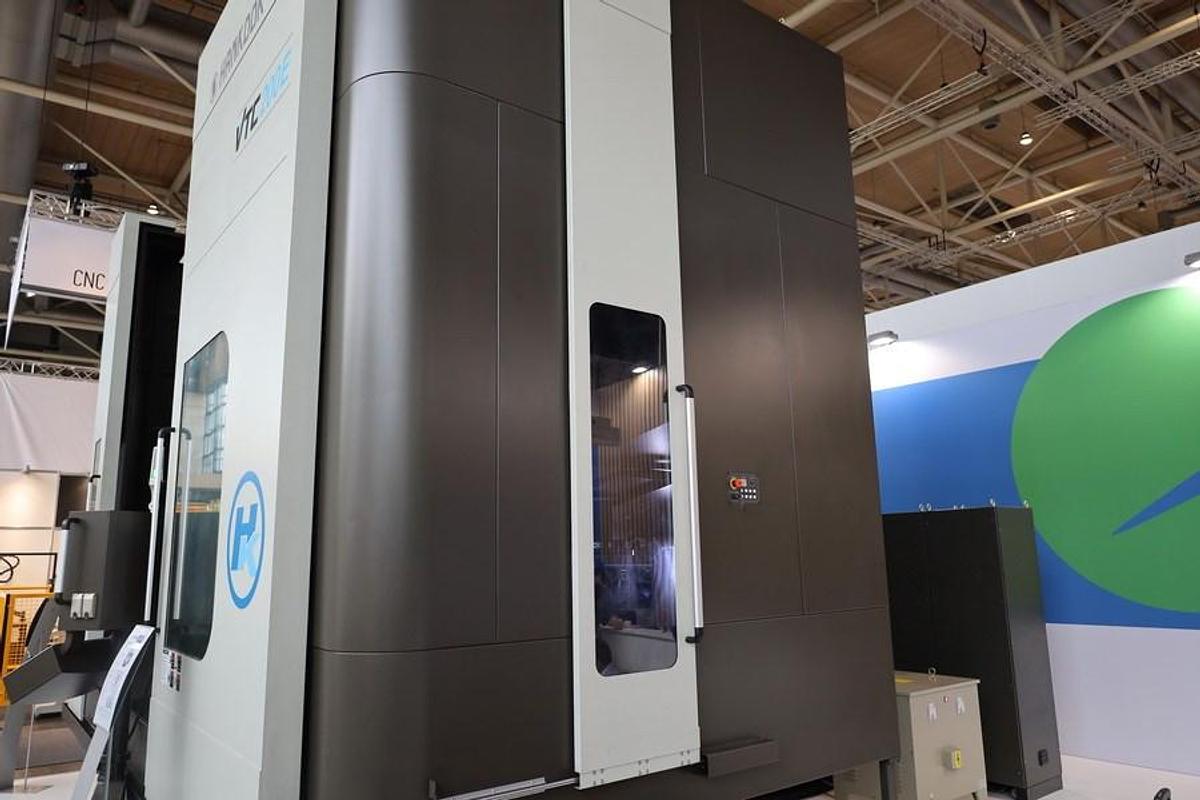

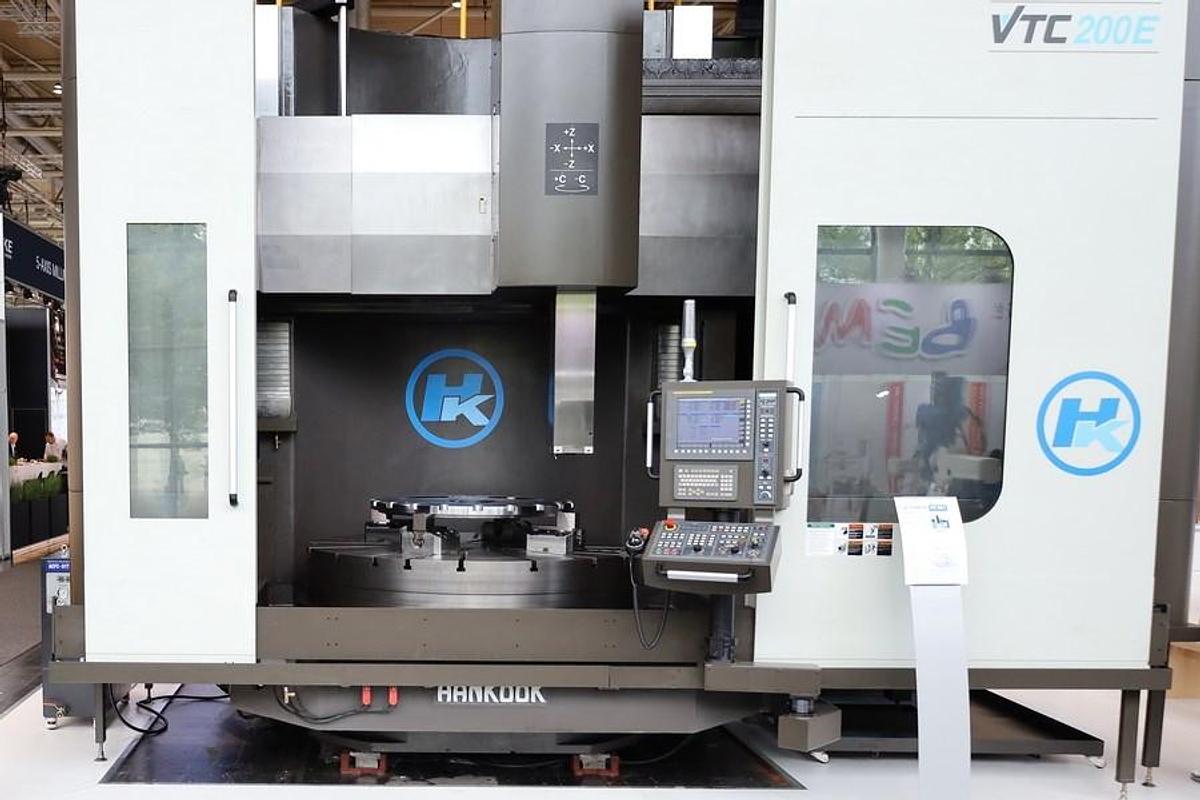

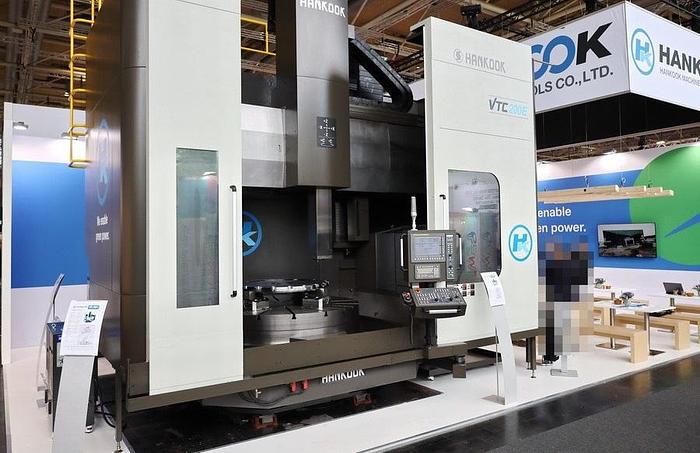

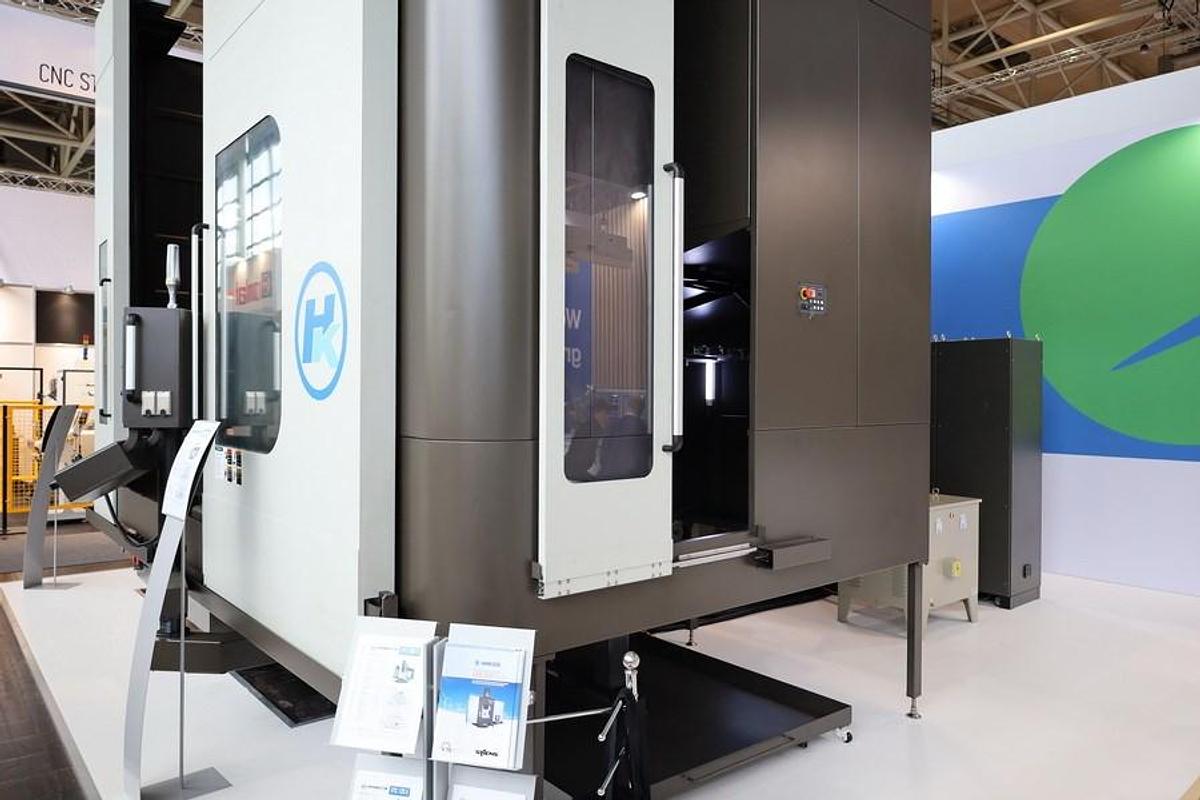

Hankook VTC 200E CNC Double Column Vertical Boring & Turning Machine with Live Spindle
Hankook VTC 200E CNC Double Column Vertical Boring & Turning Machine with Live Spindle
or
Call 770-509-0744
Description

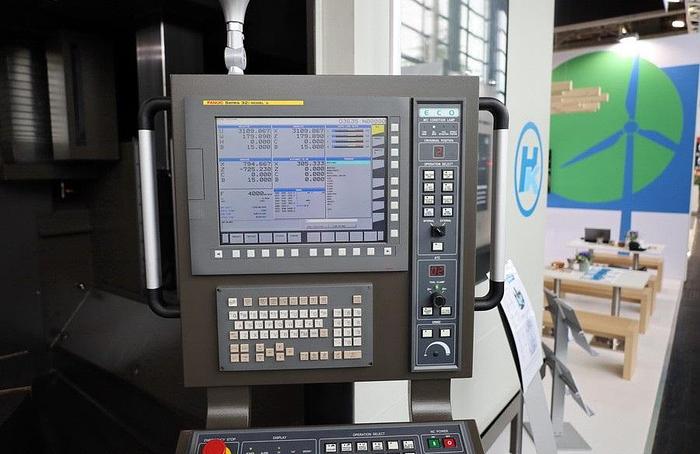

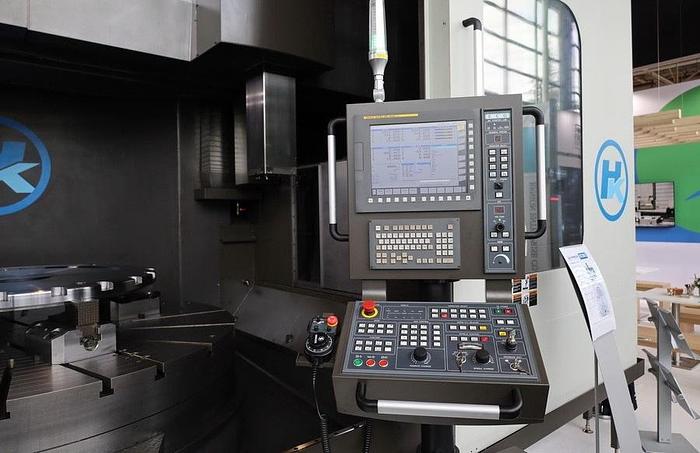

FANUC 32i-A CNC Control

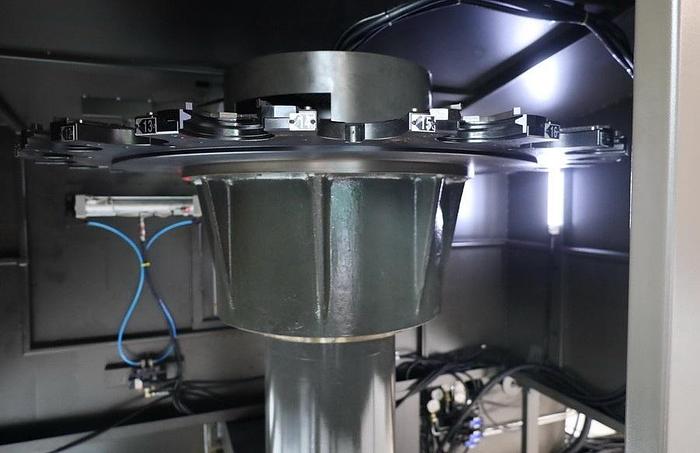

24 Position Automatic Tool Changer - Turning 12 + Milling 12
Live Spindle

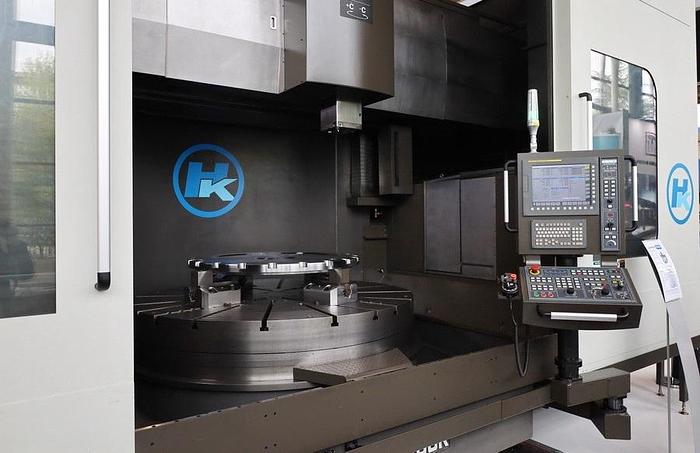

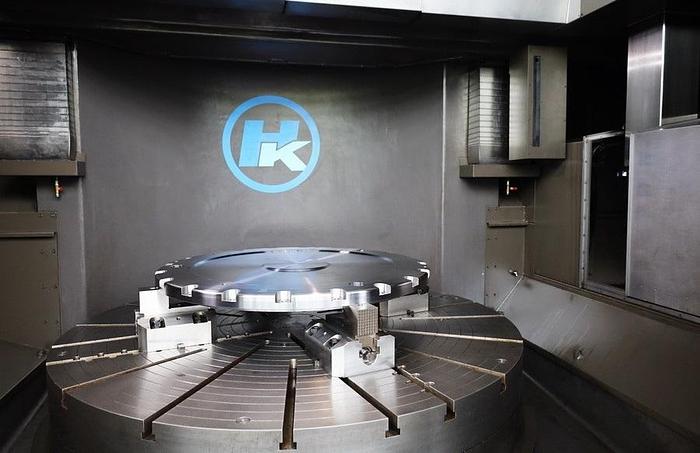

Table - C-axis
4-jaw chuck
Table Speed 1-200 rpm, Automatic 2 Step
Geared box X,Z-axes
Safety system for overload X,Z-axes

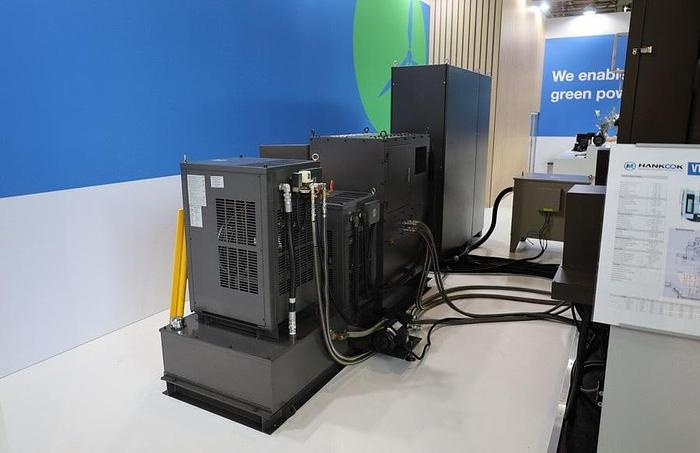

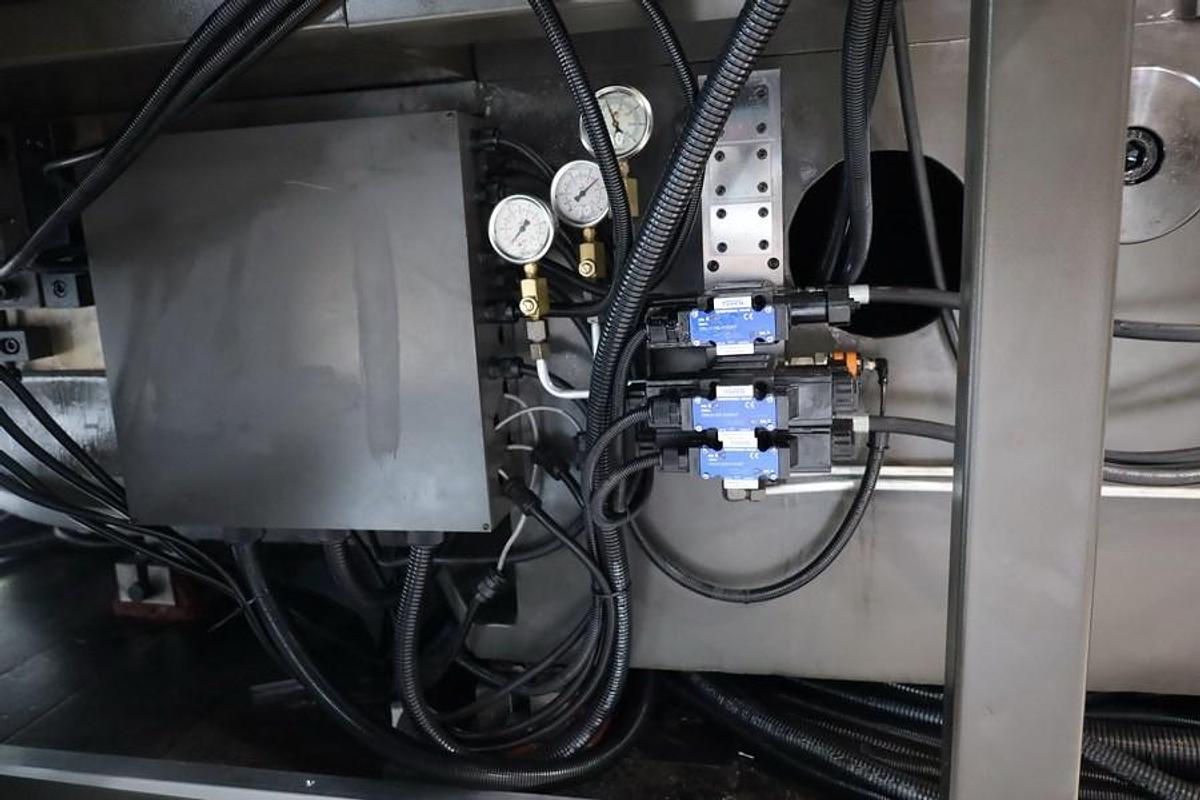

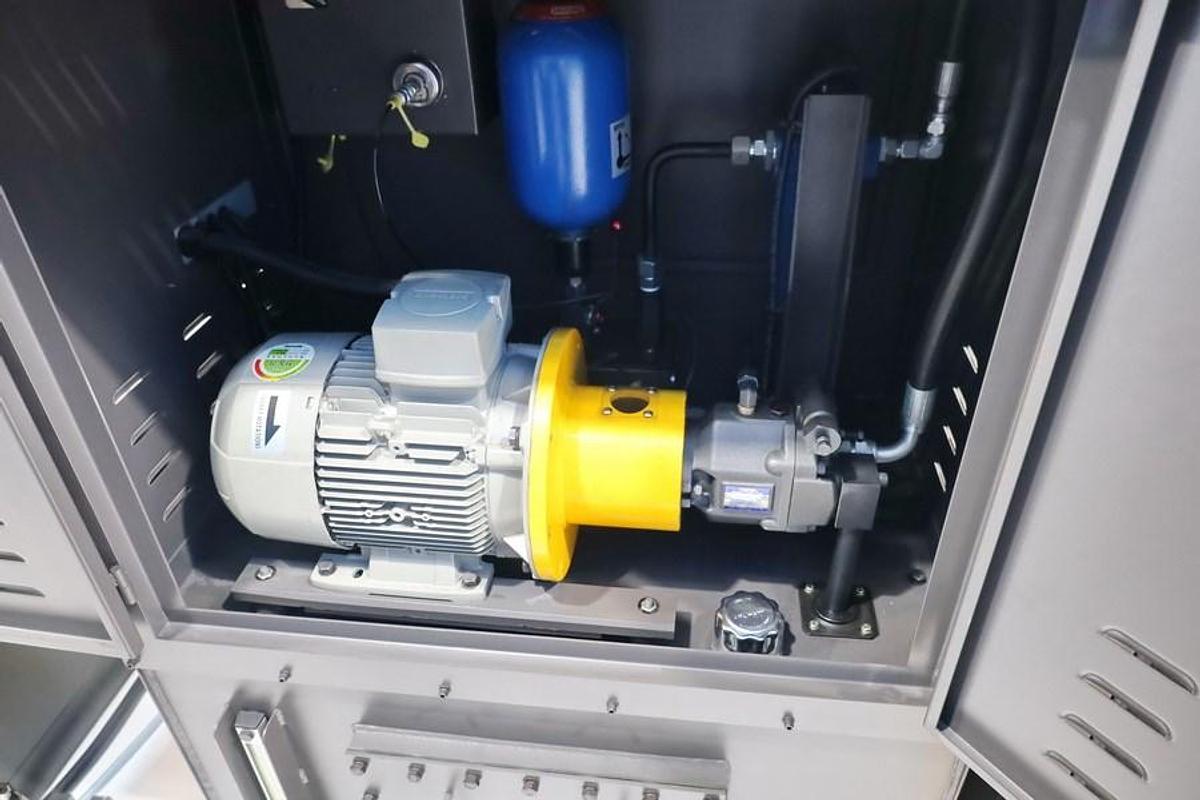

Hydraulic unit
Coolant system

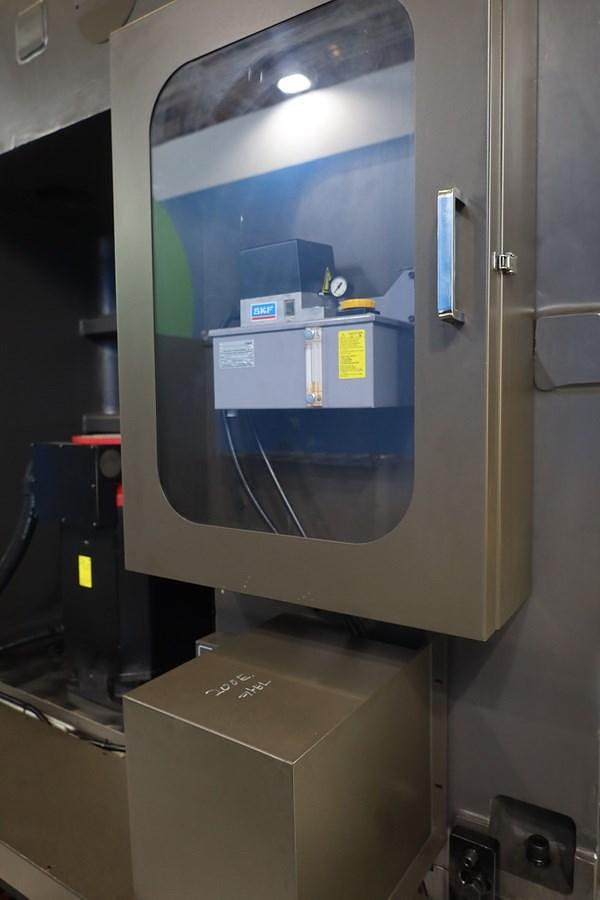

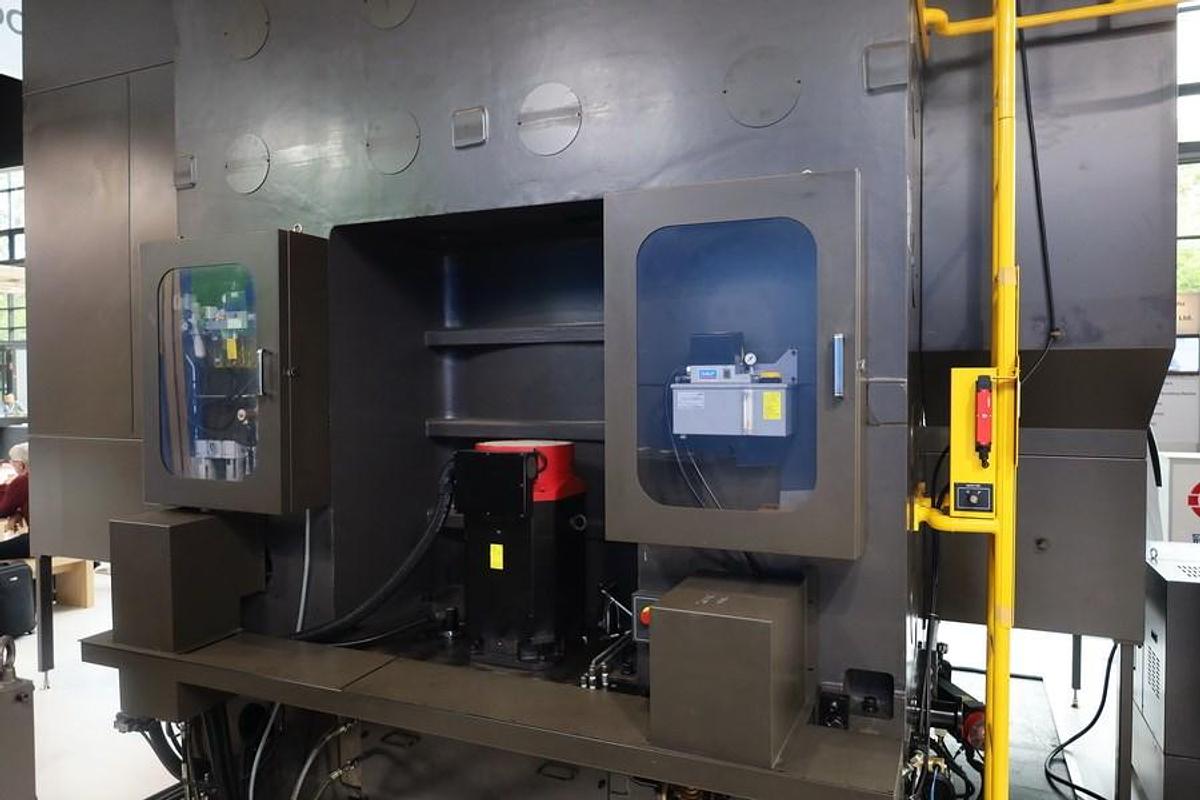

Auto. Lubrication system for slideway
Lubrication oil cooler
Through Tool Coolant At use of through tool holder
Washer Coolant
Splash Guard
NC power off
X-axis slideway protect steel cover
Protection system for tool drop
Safety guard rail
Chip pan
Work light & Patrol lamp
Square tool holder 0161
Boring tool holder 5143
Specifications
| Manufacturer | Hankook |
| Model | VTC 200E |
| Year | 2022 |
| Condition | Used |
| Stock Number | 11041 |
| Table diameter | 2,000 mm |
| Swing | 2,500 mm |
| Turning height | 2,000 mm |
| Table capacity | 12 Ton |
| Table turn speed | 200 rpm |
| Live spindle speed | 3,000 rpm |
| Z axis travel | 1,500 mm |
| X axis travel | 1,500 mm |
| W axis travel | 1,000 mm |
| Spindle taper | ISO 7/24 No. 50 |
| Ram size | 240 x 240 mm |
| C axis indexing | 0.001° |
| C axis cutting feed | 0 - 900 °/min |
| C axis maximum speed | 2.5 rpm |
| Live spindle motor | AC 18.5 / 22 kW |
| Table motor | AC 45/55 kW |
| Feed speeds X/Z | 10 m/min |
| Machine dimensions | 9 x 7 x 8 m |
| Machine weight | 45 Ton |
