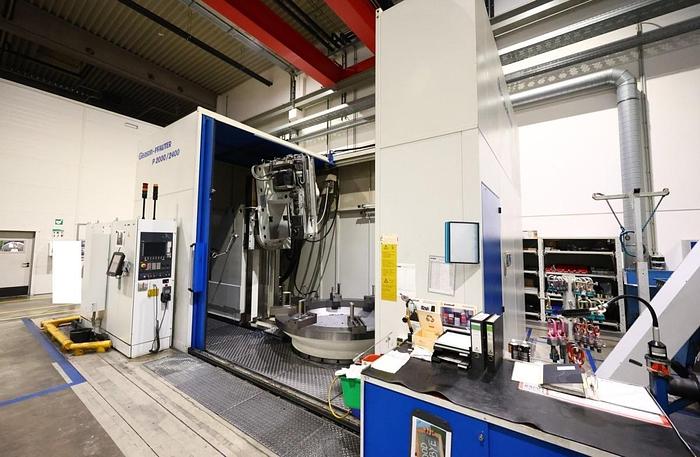

Gleason Pfauter P 2000/2400 CNC Vertical Gear Hobbing Machine
Gleason Pfauter P 2000/2400 CNC Vertical Gear Hobbing Machine
or
Call 770-509-0744
Description

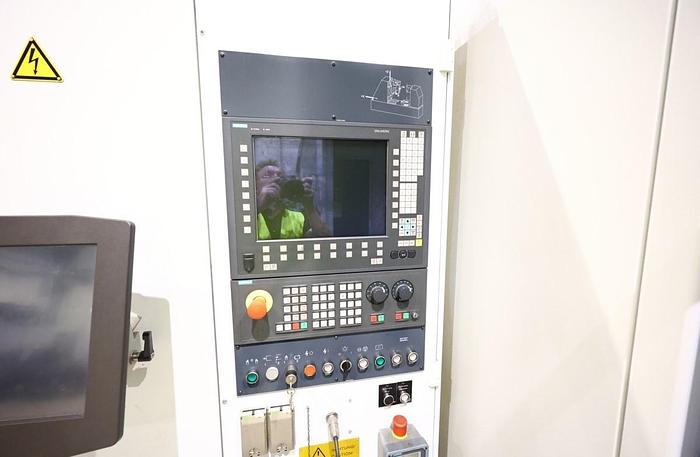

Siemens 840D CNC Control
Machine only used for internal gears - dry cutting type
Column increased
Internal Head IKF2

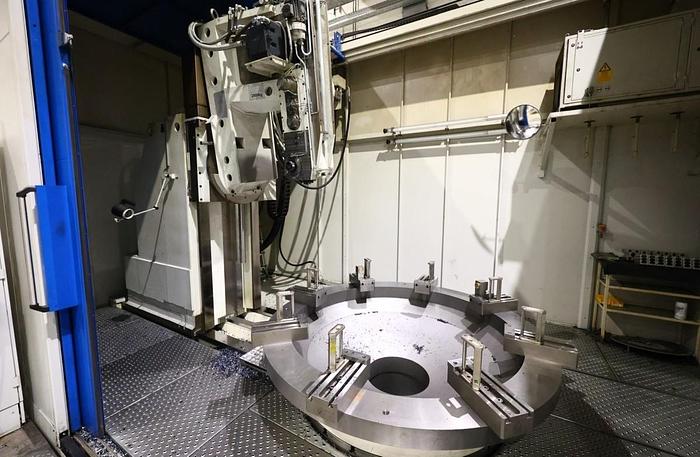

Big Clamping Table
Documentation
Specifications
| Manufacturer | Gleason Pfauter |
| Model | P 2000/2400 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 11043 |
| Max wheel diameter | 2,400 mm |
| Gear width | 600 mm |
| Max module | 30 |
| Max external diameter | 3,400 mm |
| Rim strength max | 500 |
| Radial slide travel | 1,050 mm |
| Axial slide travel | 1,600 mm |
| Swivelling range milling head | ±15° |
| Table diameter | 1,870 mm |
| Diameter | 600 mm |
| Depth | 875 mm |
| Table load capacity | 30 Ton |
| Tip circle diameter | 440 mm |
| Root circle diameter minimum | 310 mm |
| Cutter width maximum | 120 mm |
| Total power requirement | 100 kW |
| Electrics | 400 V - 50 Hz - 100 kVA |
| Machine dimensions | 12.3 x 5.6 x 4.4 m |
| Machine weight | 37.5 Ton |
