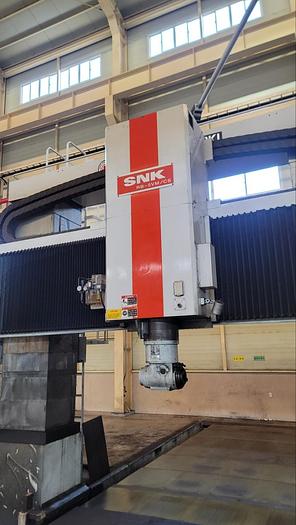

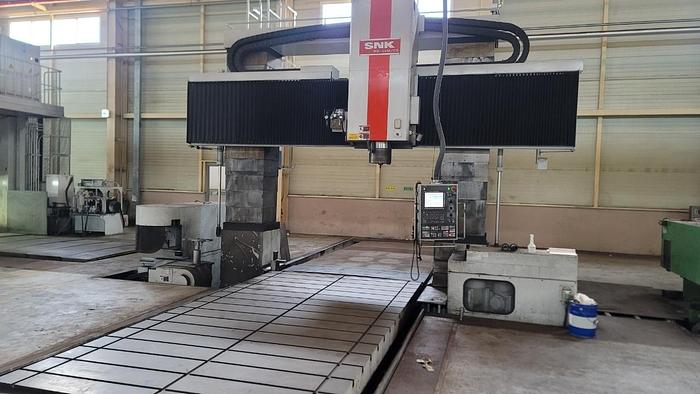

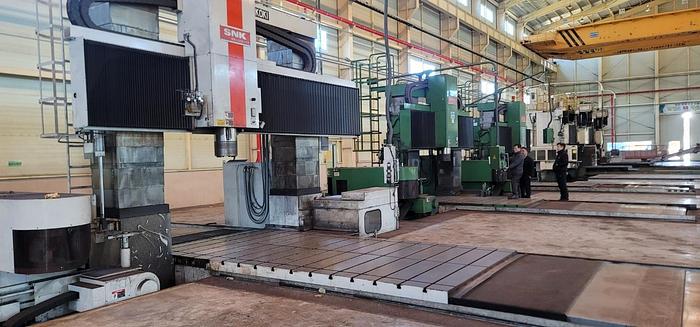

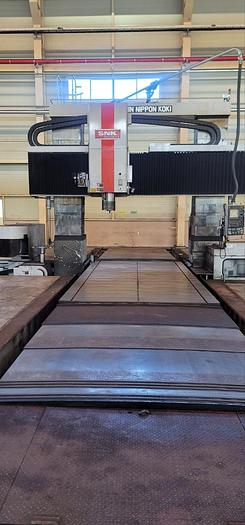

SNK RB-5VM-CS CNC Bridge Type Milling Machine

SNK RB-5VM-CS CNC Bridge Type Milling Machine

or
Call 770-509-0744

Description

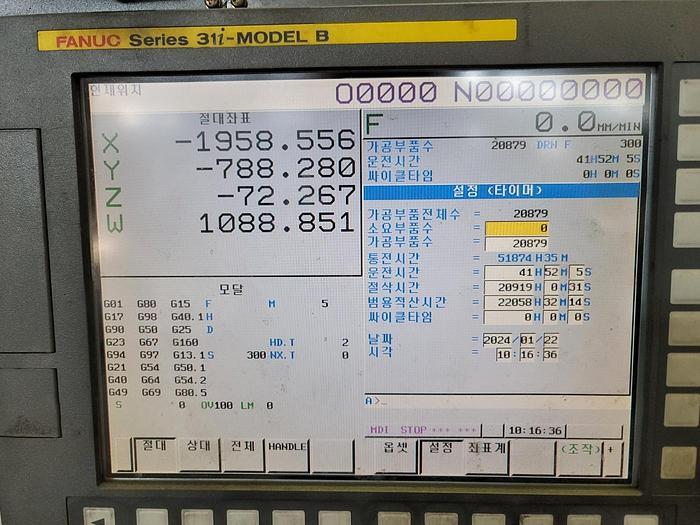

Fanuc 31i-MB CNC Control

Automatic Tool Changer

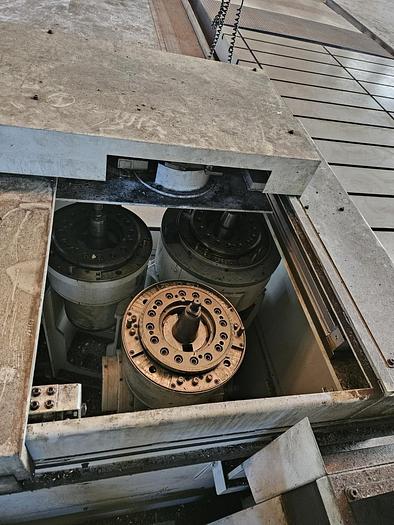

Automatic Attachment Changer (AAC) for 3 Attachments

Center Swing Universal Attachment

Extension Attachment

Chip Conveyor (2 Conveyor Type)

Ballscrew Core Cooling (Y axis)

Three Lamp Indication Light

Scale Feedback for X, Y, Z Axis

Hydraulic Unit

Coolant System

Automatic Tool Length Measuring Function

Broken Tool Detection (Touch Type)

Movable Operation Pendant

Power Transformer

Tool Position Compensating Software for 5-Face Software (N5STLP-V1)

Interactive Machining Pattern Software

Special 5-Face Machining Software for Attachment 1° Indexing

Tool Axis Direction Handle Feed Function

Voluntary Surface Machining Software

ECO Kit


Distance Table Surface to Spindle End 300 - 2,300 mm

Y Axis (Spindle Head Traverse) 2,900 mm (+AAC 800 mm, +ATC 100 mm)

Extended height 500mm of column stand

Spindle Speeds 40 - 6,000 rpm (S 4-Digit)

Spindle Drive Motor

Low Speed 22/18.5 kW

High Speed 25/22 kW

Specifications

ManufacturerSNK
ModelRB-5VM-CS
Year2016
ConditionUsed
Stock Number11046
Between columns2,850 mm
Spindle speeds6,000 rpm
Machining height2,300 mm
X axis travel5,250 mm
Y axis travel2,900 mm
Z axis travel600 mm
Table size5,000 x 2,500 mm
Table capacity15 Ton
W axis travel1,400 mm
Spindle/quill diameter90/330 mm
Spindle drive motor25/22 kW
Z + w axis (ram + crossrail)2,000 mm
Spindle taperISO No. 50
Cutting feed X, Y1 - 10,000 mm/min
Rapid feed X, Y20 m/min
Cutting feed Z1 - 8,000 mm/min
Rapid feed Z8 m/min
Cutting feed W1 - 6,000 mm/min
Rapid feed W6 m/min
