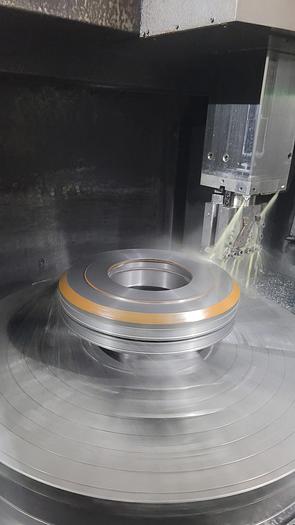

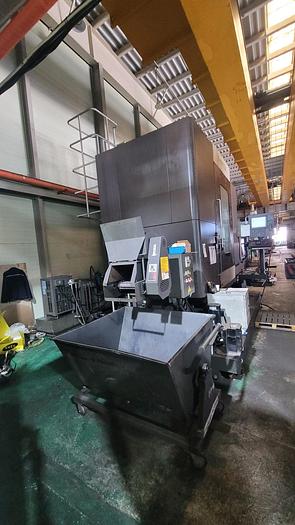

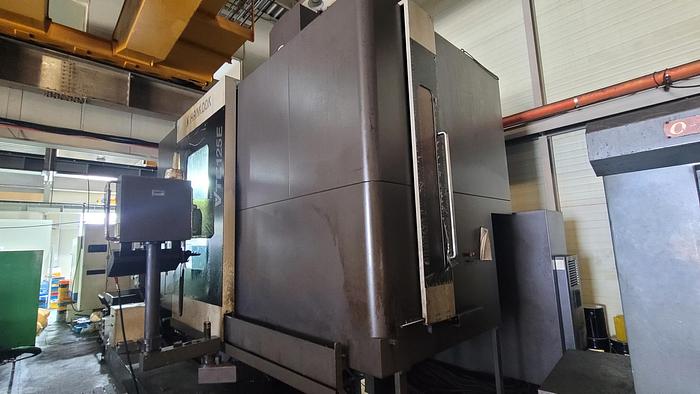

Hankook VTC 125E CNC Vertical Boring Machine with Live Spindle
Hankook VTC 125E CNC Vertical Boring Machine with Live Spindle
or
Call 770-509-0744
Description

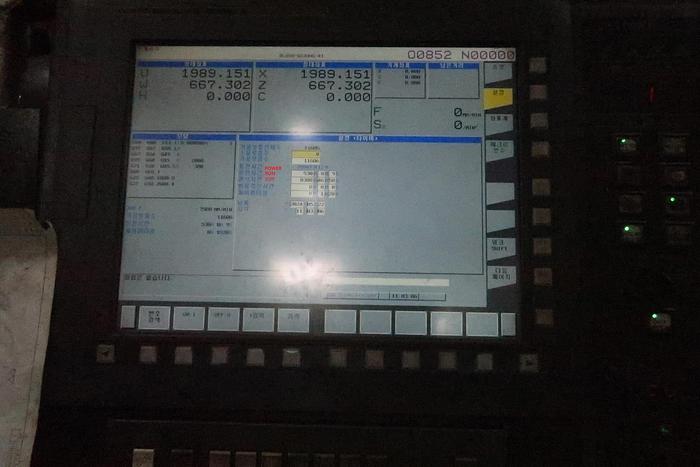

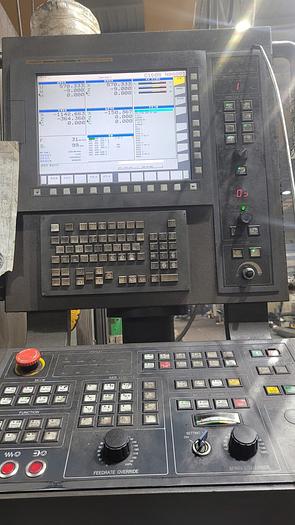

Fanuc 32iA CNC Control

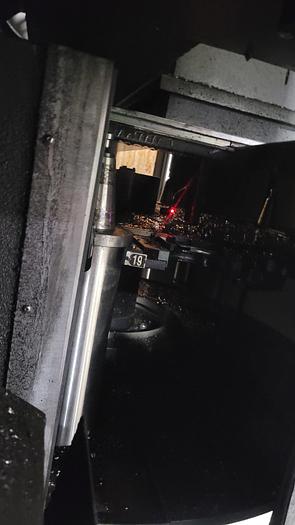

24 Position Automatic Tool Changer

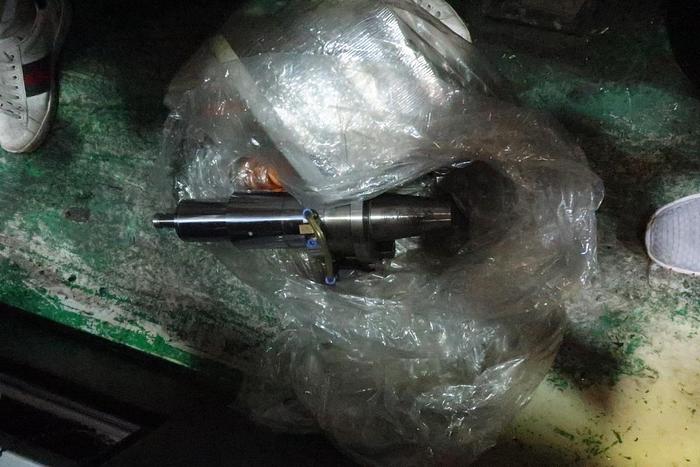

Live Spidle

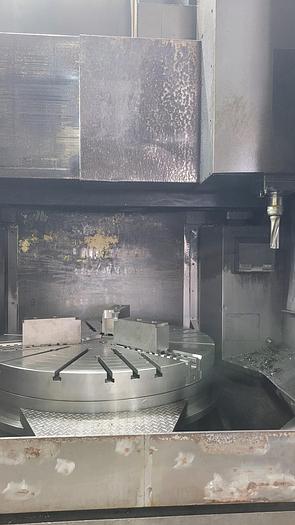

Table C-Axis
Grinding Attachment
Chip Conveyor
Chuck Diameter 1,250 mm - Hydraulic Chuck
Specifications
| Manufacturer | Hankook |
| Model | VTC 125E |
| Year | 2015 |
| Condition | Used |
| Stock Number | 11047 |
| Table diameter | 1,250 mm |
| Swing | 1,600 mm |
| Turning height | 1,400 mm |
| Table capacity | 8 Ton |
| Table turn speed | 360 rpm |
| Live spindle speed | 3,000 rpm |
| W axis travel | 700 mm |
| Ram size | 220 x 220 mm |
| C axis | 0.001° |
