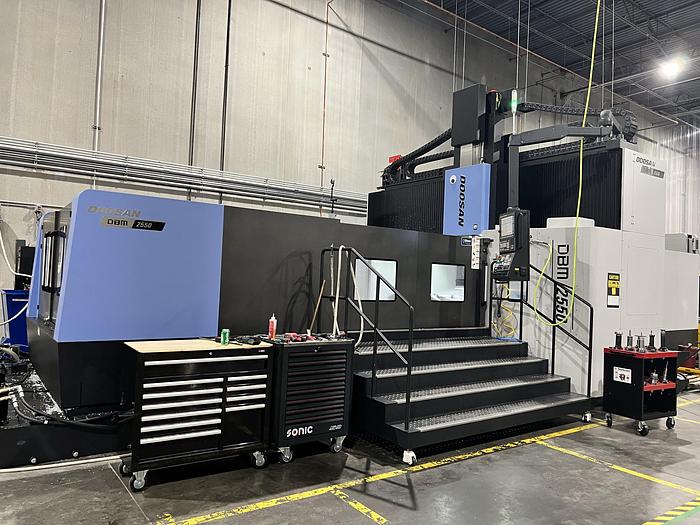

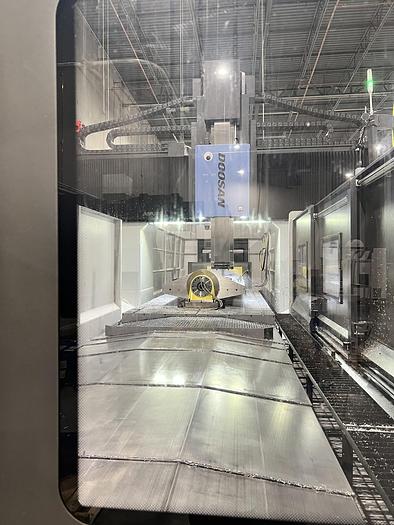

Doosan DBM 2550 CNC Bridge Type Milling Machine with 4th Axis Rotary Table
Doosan DBM 2550 CNC Bridge Type Milling Machine with 4th Axis Rotary Table
orCall 770-509-0744
Description

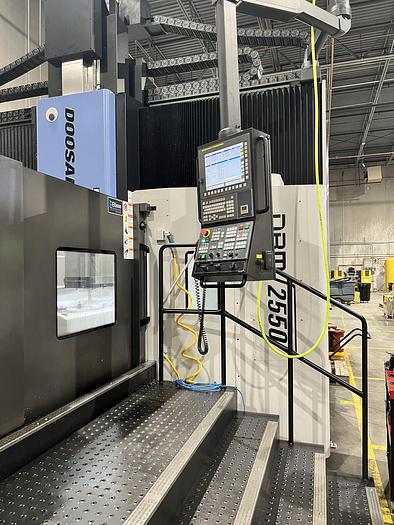

Fanuc 31iB CNC Control
Machine New in 2022

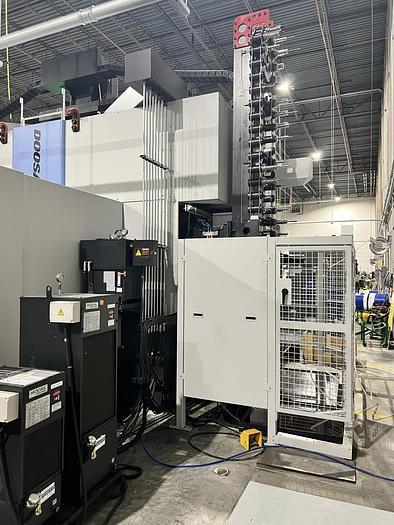

60 Position Automatic Tool Changer
CAT 50 - Max tool diameter 130 mm - Max tool length 400 mm
4th Axis - Lyndex Nikken 501FA-M CNC 500 mm Rotary Table
Lyndex Nikken Support Table with 500 mm Platter & Hydraulic Brake

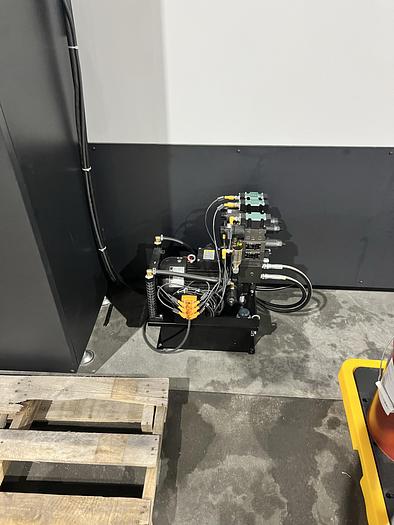

Lyndex Nikken Hydraulic Unit - Nachil-DC24V-3PSP
Spindle to Table Distance 200 - 1,000 mm
Linear Scales X/Y/Z Axes

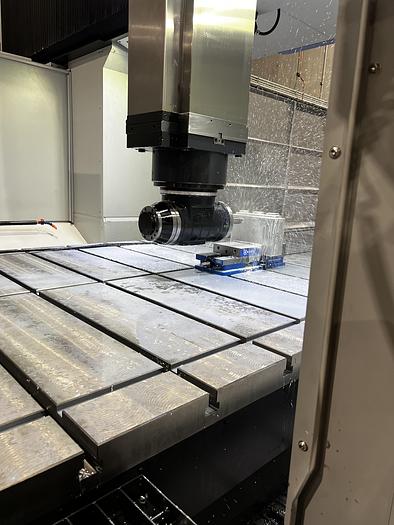

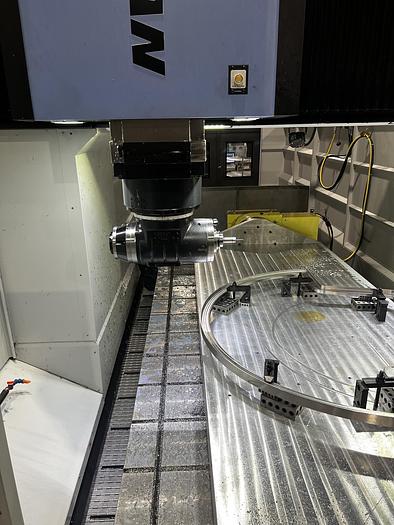

90 Degree Angle Attachment
290 PSI Through Right Angle Head
Swing-in AAC - 2
Semi-Guard, High
(2) Side and (1) Lift up Hinged Belt Conveyors
Renishaw RMP600 Part Probe and Calibration Block
Renishaw TS27R Tool Setter & Master
Operator Side-Step for Ground Level Installations
112 KVA 480 Step Down Transformer
Specifications
| Manufacturer | Doosan |
| Model | DBM 2550 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 11052 |
| Spindle speeds | 8,000 rpm |
| Machining height | 1,000 mm |
| X axis travel | 5,250 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,100 mm |
| Table size | 5,000 x 2,000 mm |
| Table capacity | 22 Ton |
| 4th axis CNC rotary table diameter | 500 mm |
| Spindle drive motor | 55 kW |
| Spindle torque | 1,009 Nm |
| Spindle taper | CAT-50 |
| Rapid traverse x axis | 20 m/min |
| Rapid traverse y axis | 20 m/min |
| Rapid traverse z axis | 15 m/min |
