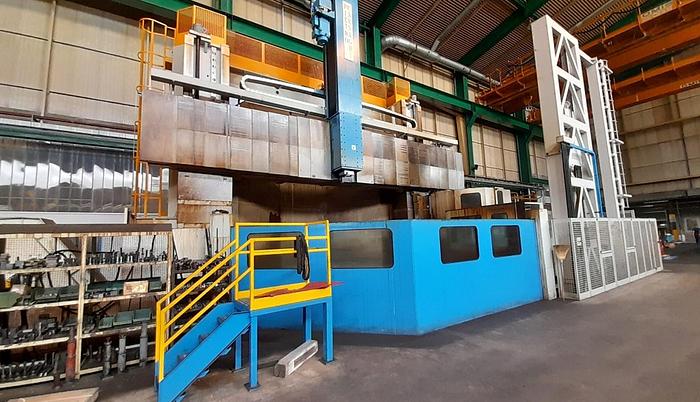

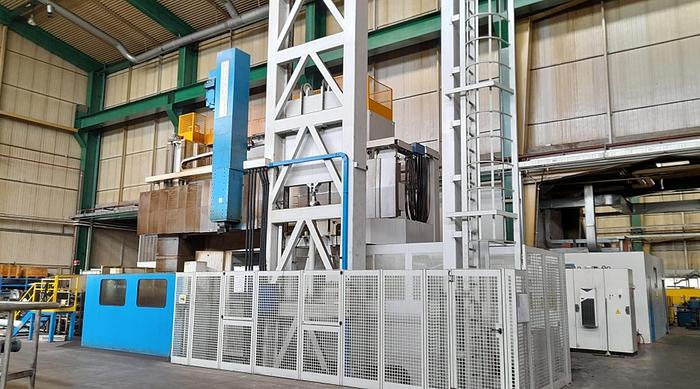

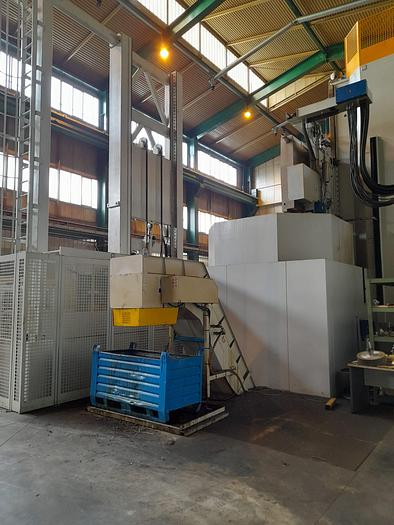

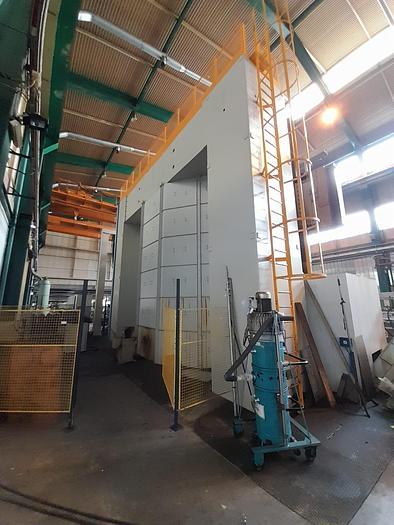

Pietro Carnaghi AC 62 CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
Pietro Carnaghi AC 62 CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description

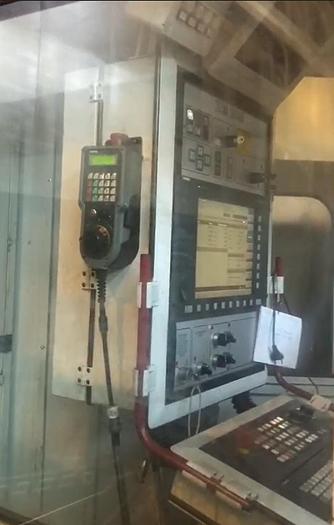

Siemens 840D CNC Control
20 Position Automatic Tool Changer
Chip Conveyor
Tool Measuring Device
Elevating Operator Cabin
Vertical Travel 5,600 mm
Horizontal Travel 4,000 mm
6 Position Accessories ATC

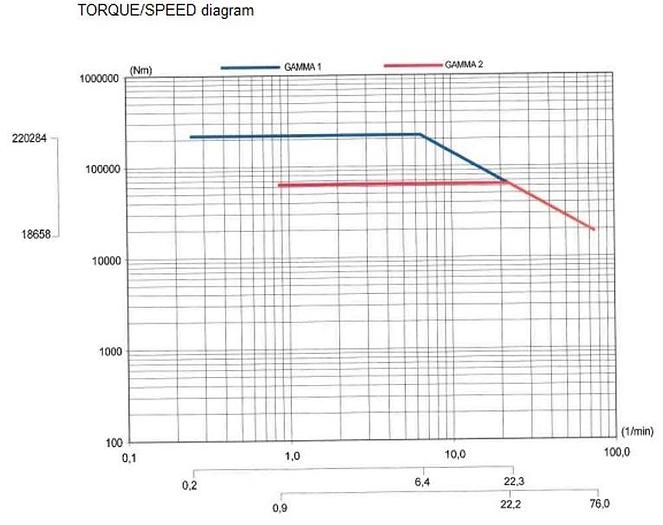

Table Turn Speed - 2 Gear
Gear 1: 0.2 - 6.4 - 22.3 rpm
Gear 2: 0.9 - 22.2 - 76 rpm
Live Milling Speed - 2 Ranges
Range 1: 6.8 - 170 - 680 rpm
Range 2: 34 - 856 - 2,500 rpm
Hydraulic System & Lubrication
Refrigerator for Coolant & Lubricating Oil
Specifications
| Manufacturer | Pietro Carnaghi |
| Model | AC 62 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 11055 |

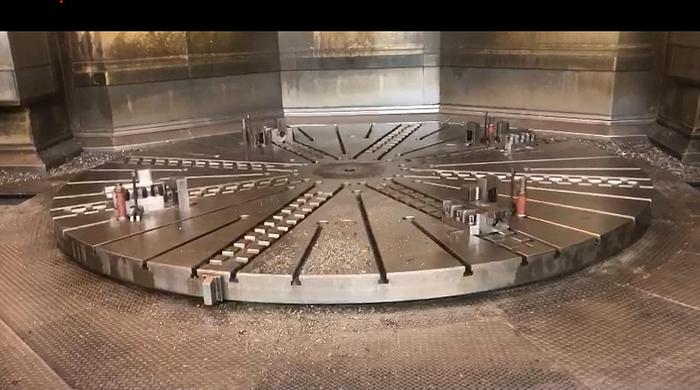

| Table diameter | 5,000 mm |
| Swing | 6,200 mm |
| Turning height | 5,000 mm |
| Table capacity | 100 Ton |
| Table turn speed | 76 rpm |
| Live spindle speed | 2,500 rpm |
| Z axis travel | 2,500 mm |
| Nominal Speed spindle | 1,250 rpm |
| X axis travel | -3,275/+5,050 mm |
| Live spindle motor | 40 kW |
| Spindle taper | ISO 50 AD |
| Ram size | 350 x 350 mm |
| Minimum boring diameter | 485 mm |
| Feed speed X,Z | 0.1 - 3,000 mm/min |
| Rapid feed speed X,Z | 10,000 mm/min |
| Table turn power | 150 kW |
| Table turn torque | 1,091 Nm |
| Turning tool holder | CAPTO C8 |
| Table speed milling | 0.01 - 1 rpm |
| C axis table positioning | 360° |
| C axis indexing | 0.0001° |
| C axis power milling | 13.6 kW |
| Table torque milling | 65 Nm |
| Max power used | 210 kW |
| Control voltage | V 24/110 |
| Machine weight | 155 Ton |
