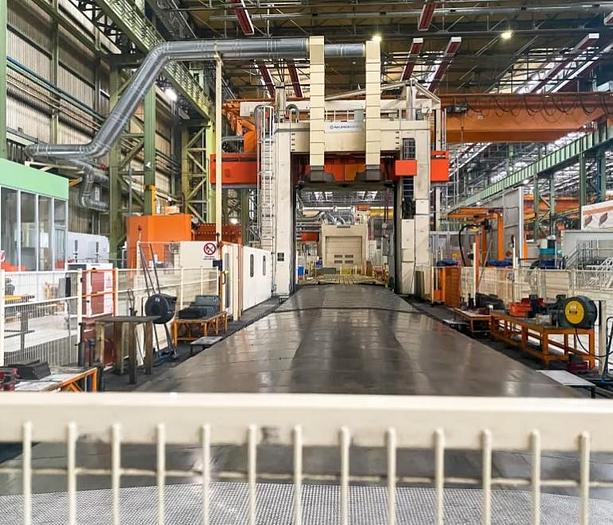

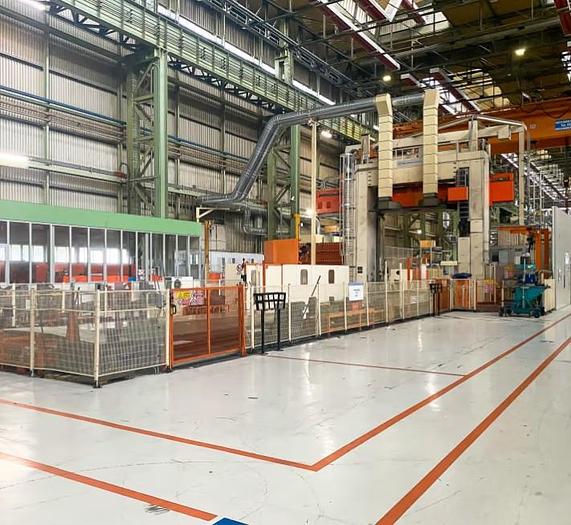

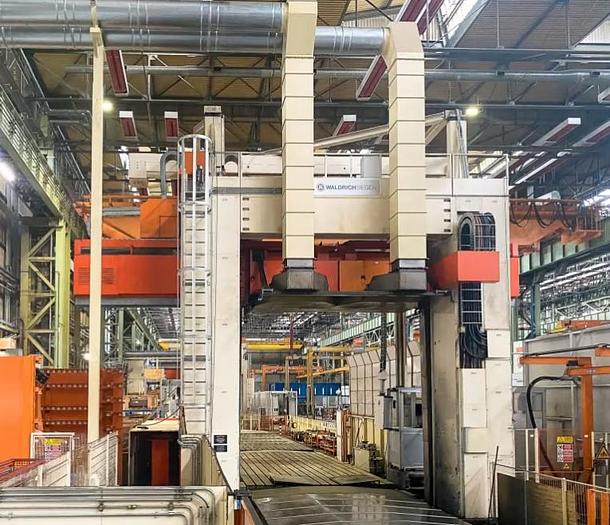

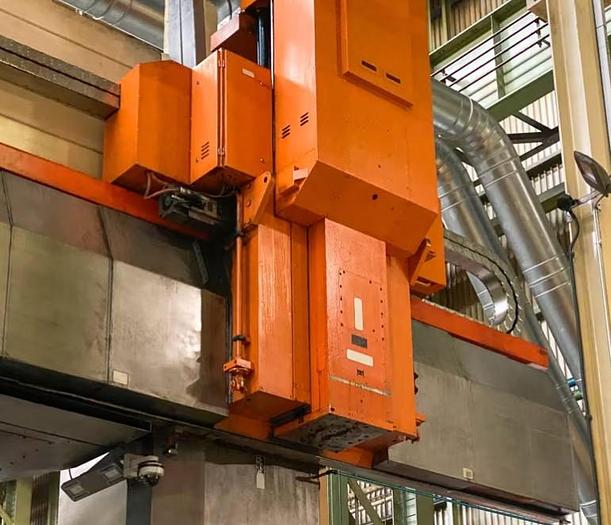

Waldrich Siegen PM 4500 AT RQ2 CNC Bridge Type Milling Machine
![Refurbished Waldrich Siegen PM 4500 AT RQ2 CNC Bridge Type Milling Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/1e981561416fcc818ba0cf8b22c0cca4/large-refurbished-waldrich-siegen-pm-4500-at-rq-2-cnc-bridge-type-milling-machine.jpg)
Waldrich Siegen PM 4500 AT RQ2 CNC Bridge Type Milling Machine
orCall 770-509-0744
Description

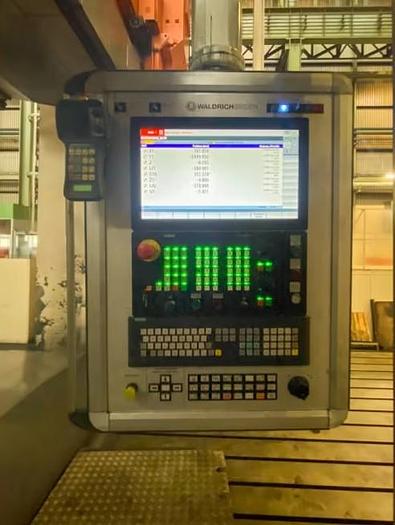

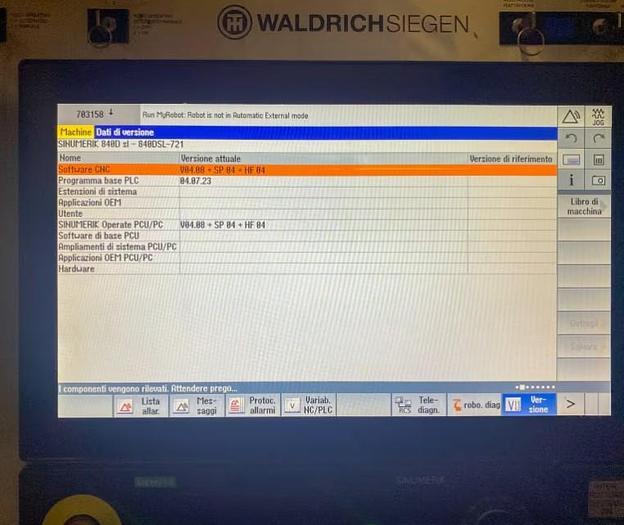

Siemens 840D SL CNC Control
Machine New in 1994 with Full Rebuild & Retrofit in 2019

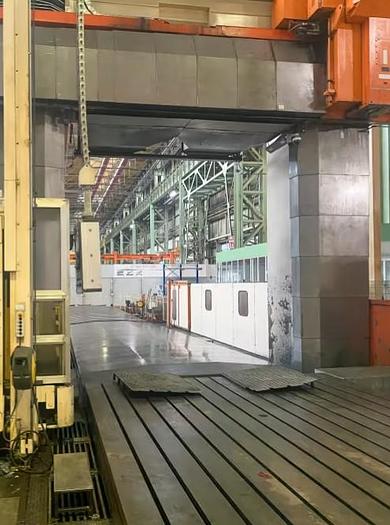

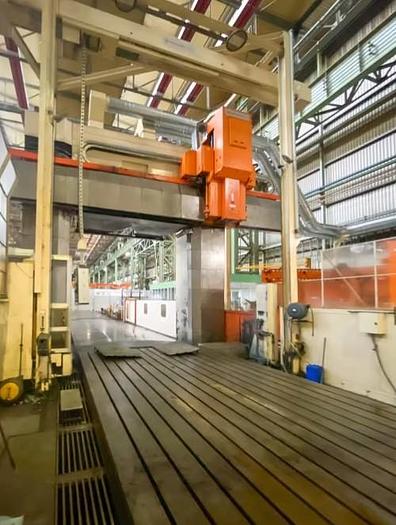

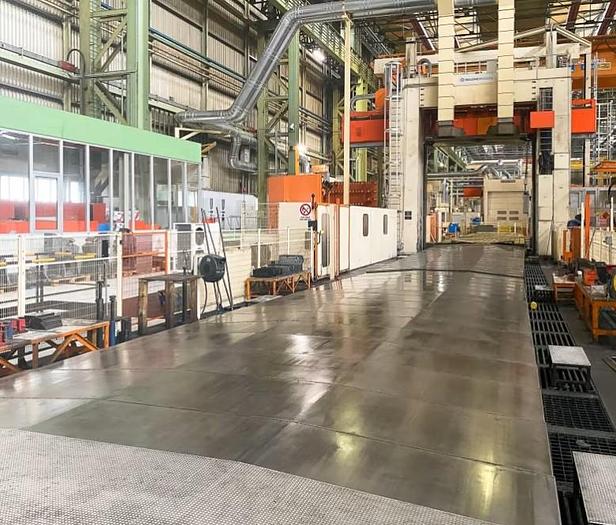

2 Tables - Can be used Joined as 1 Long Table

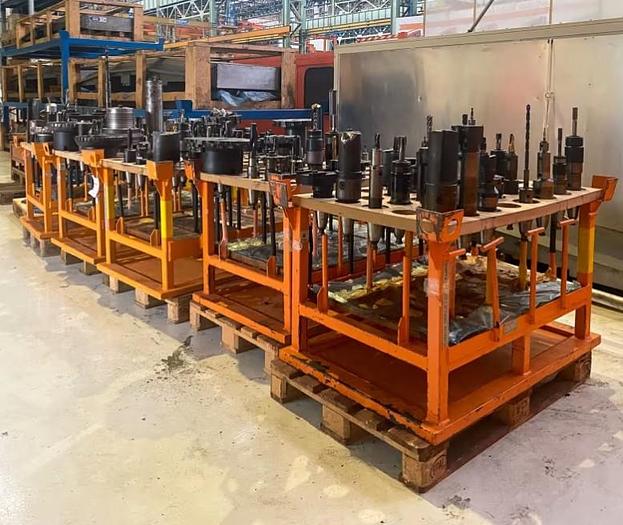

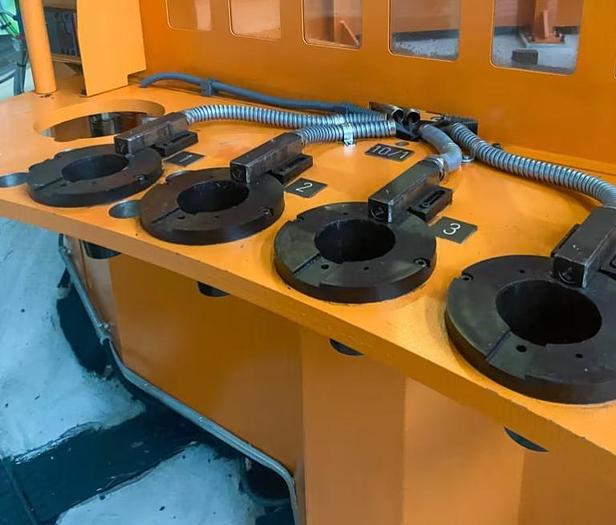

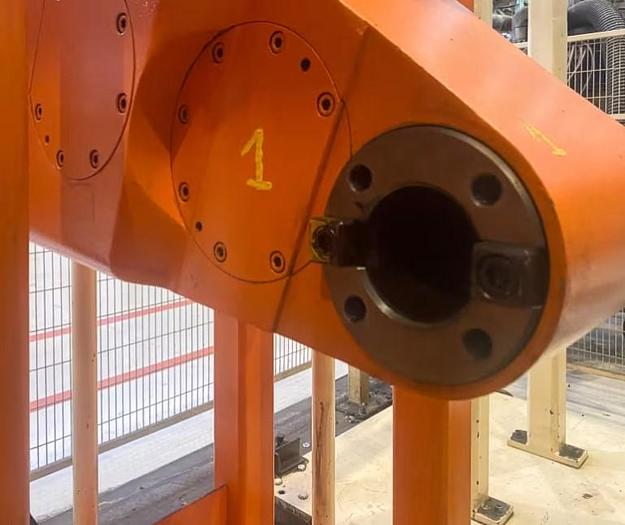

12 Milling Heads
Includes Vertical, Horizontal, Universal Type Heads
Extension - 500 mm, ISO 50/ISO 50
Adapter - Step-up Gear: ISO 50/ISO 50, Rate 1:3

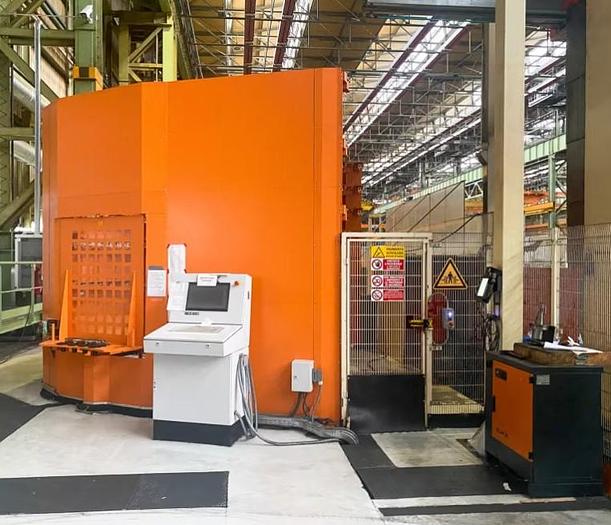

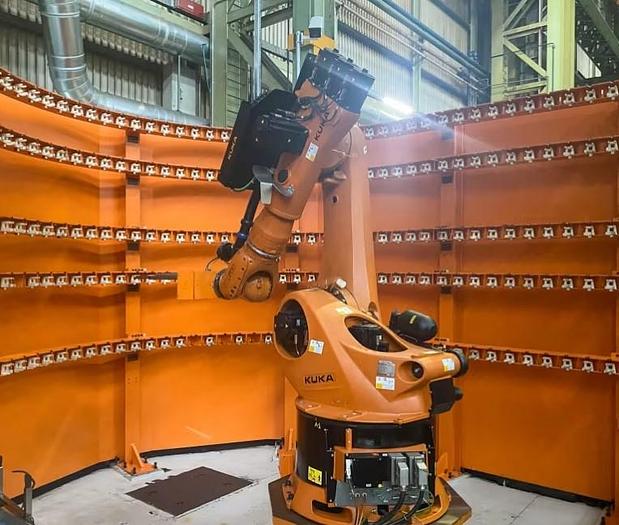

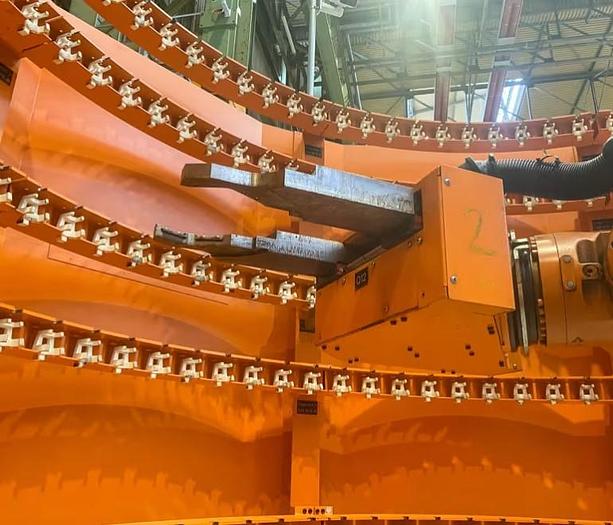

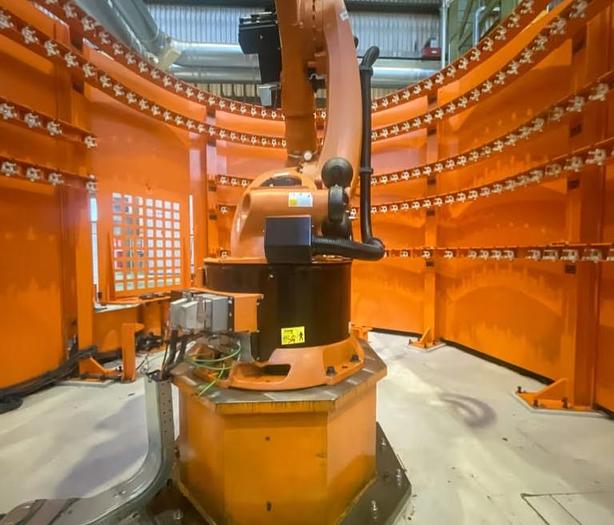

405 Position Robotic Type Automatic Tool Changer - Kuka Anthropomorphic Robot

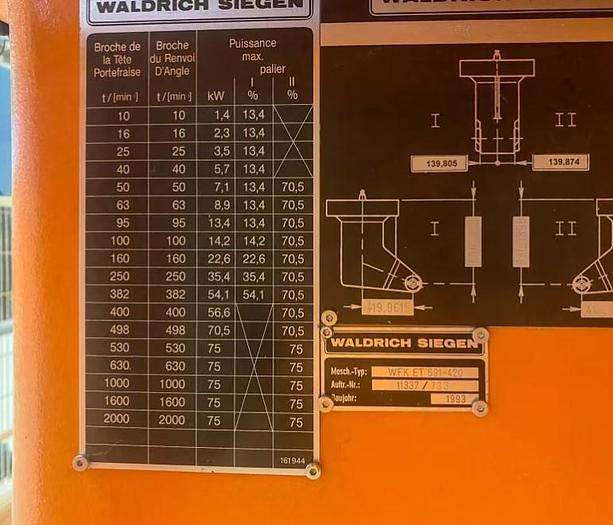

Spindle Speeds - 2 Range
Range 1: 10 - 380 rpm
Range 2: 10 - 2,000 rpm
Total X stroke with jointed table: 45,500mm
Stroke table 1: 18,800mm
Stroke table 2: 23,350mm

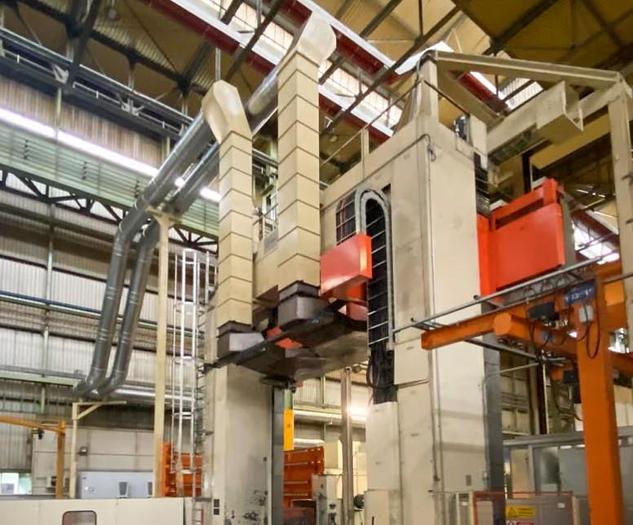

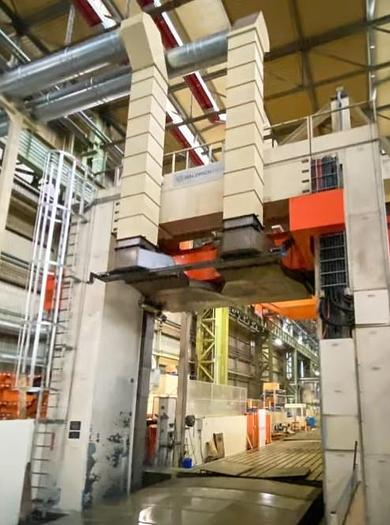

Bridge Height 1,250 - 5,000 mm
Specifications
Manufacturer | Waldrich Siegen |
Model | PMC 4500 AT RQ2 |
Year | 2019 |
Condition | Refurbished |
Stock Number | 11060 |
Between columns | 4,500 mm |
Spindle speeds | 2,000 rpm |
Machining height | 5,000 mm |
X axis travel | 45,500 mm |
Y axis travel | 7,175 mm |
Z axis travel | 1,500 mm |
Table size (1) | 9,000 x 4,000 mm |
Table size (2) | 11,000 x 4,000 mm |
Z1 axis travel | 500 mm |
Quill diameter (octogonal shape) | 600 x 600 mm |
Spindle power | 100 kW |
Spindle taper | ISO 50 DIN 69871 |
Spindle torque | 9600 Nm |
X/Y axis feed | 0 - 20 m/min |
Z axis feed | 0 - 15 m/min |
Z1 axis feed | 0 - 2.7 m/min |
W axis feed | 0 - 3 m/min |
