Heyligenstaedt Varimat HSG CNC Simultaneous 5-Axis Gantry Milling Machine

Heyligenstaedt Varimat HSG CNC Simultaneous 5-Axis Gantry Milling Machine

orCall 770-509-0744

Description

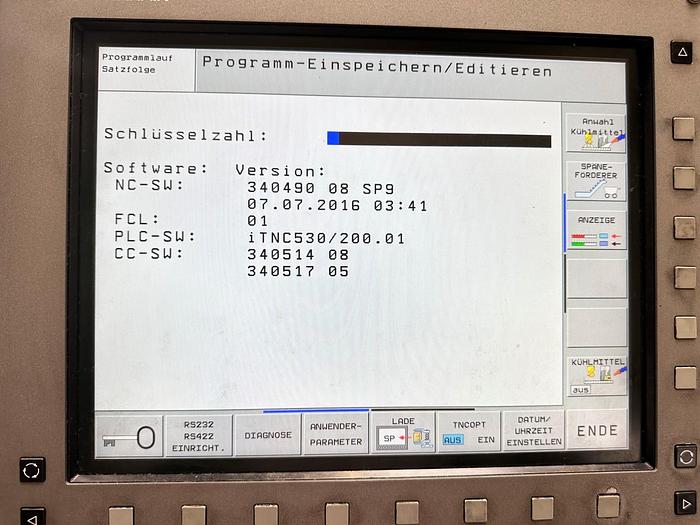

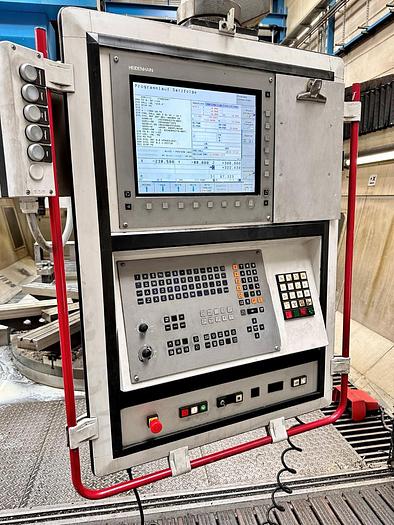

Heidenhain iTNC 530 CNC Control

Master-Slave principal double motors for Y and Z axis for absolute minimum backlash

X axis controlled with 4 motors for high accuracy, master-slave double motors on each side

5-Axis simultaneous possible

CNC Rotary Table 2,400 mm diameter - 17.5 Ton Capacity

Rotary table movement in combination of the linear axis and head rotary axis simultaneous cutting possible

Through coolant

Auto Head changer

Chip conveyors

Highly accurate machine, currently doing jobs within 20 micron accuracy

Spindle Speed up to 4,000 rpm (2-Step Gearbox)

Max. workpiece height with vertical head 1,900 mm

Max. workpiece height with 5-axis head 1,500 mm

X Axis Travel = 6,000 + 1,250 mm (1,250 for the tool and head changer)

Specifications

ManufacturerHeyligenstaedt
ModelVarimat HSG
Year2004
ConditionUsed
Stock Number11063
Between columns4,600 mm
Spindle speeds4,000 rpm
Machining height1,500 mm
X axis travel6,000 + 1,250 mm
Y axis travel4,000 mm
Z axis travel1,500 mm
Table dimensions4,500 x 3,000 mm
Table capacity15 ton/m²
CNC rotary table2,400 mm
Rotary table capacity17.5 Ton
Spindle power40 kW
Spindle taperSK 50
Spindle torque1,350 NM
Ram dimensions580 x 580 mm
Rapid Feed X/Y/Z20 m/min
Cutting Feed X/Y/Z1 - 20,000 mm/min
Acceleration3m/s²
