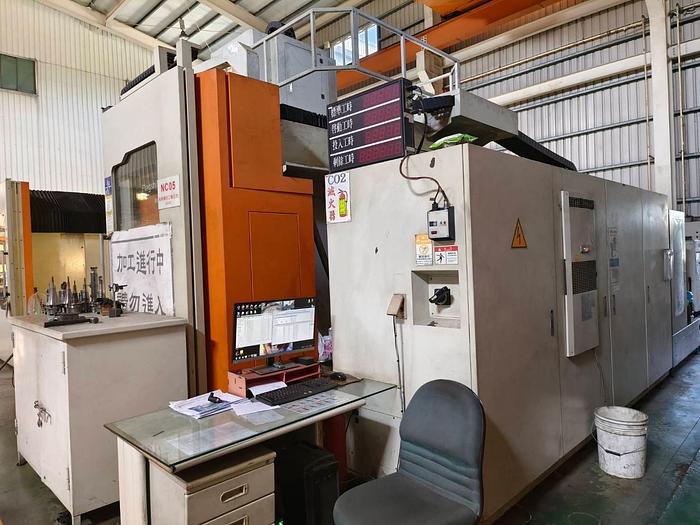

APEC GM 30/50 CNC 5 Axis Gantry Milling Machine
![Used APEC GM 30/50CNC 5 Axis Gantry Milling Machine](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/b55d5dcf78a293fb1befdd2d1292f900/large-used-apec-gm-30-50-cnc-5-axis-gantry-milling-machine.jpg)
APEC GM 30/50 CNC 5 Axis Gantry Milling Machine
orCall 770-509-0744
Description

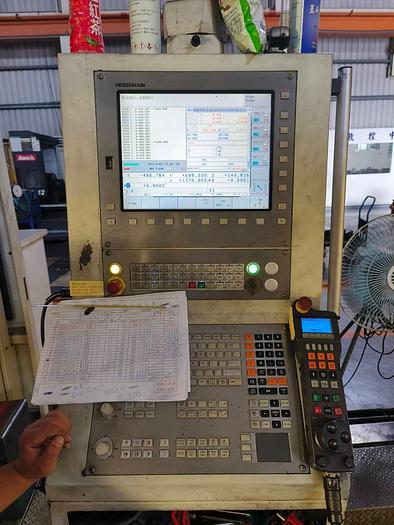

Heidenhain iTNC530 CNC Control System
30 Position Automatic Tool Changer

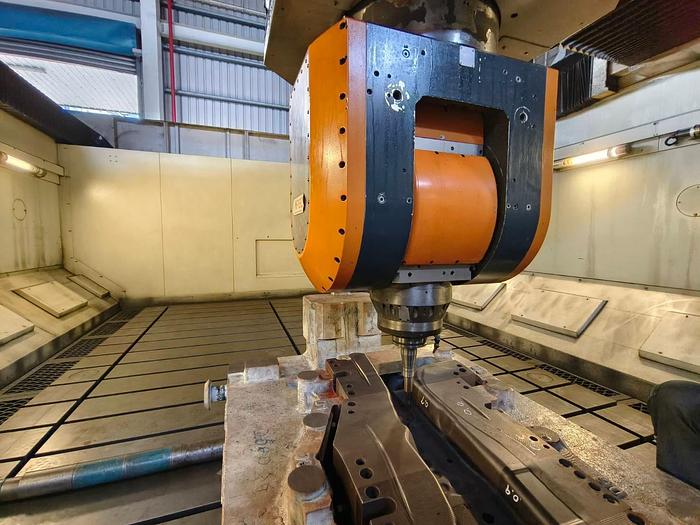

Universal Milling Head A&C Axis
Distance between Spindle Nose & Table Surface 300 - 1,300 mm
Spindle Oil Cooler
Air Conditioner for Electrical Cabinet
Chip Conveyor + Bucket
Specifications
Manufacturer | APEC |
Model | GM 30/50 |
Year | 2013 |
Condition | Used |
Stock Number | 11065 |
Between columns | 4,848 mm |
Spindle speeds | 15,000 rpm |
Machining height | 1,300 mm |
X axis travel | 5,360 mm |
Y axis travel | 3,000 mm |
Z axis travel | 1,000 mm |
Table dimensions | 3,000 x 5,000 mm |
Table capacity | 7,000 kg/m² |
Spindle taper | HSK 100A |
Machine dimensions | 10,885 x 10,550 x 5,300 mm |
Machine weight | 87,350 kg |
