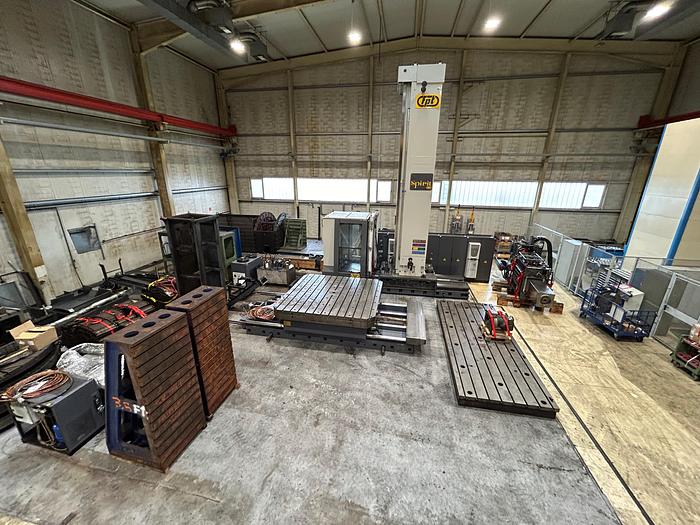

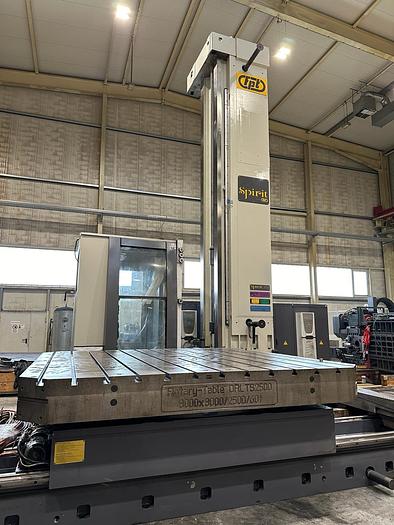

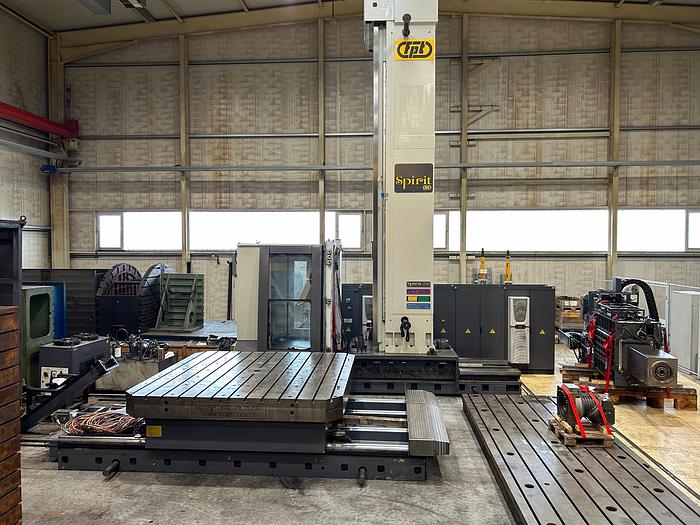

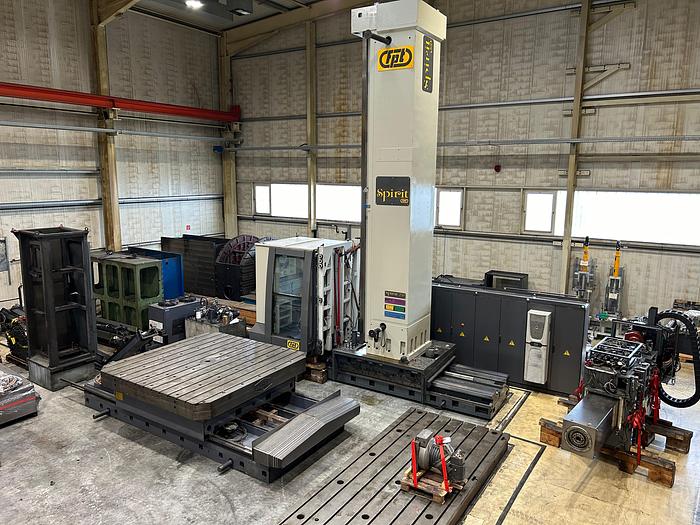

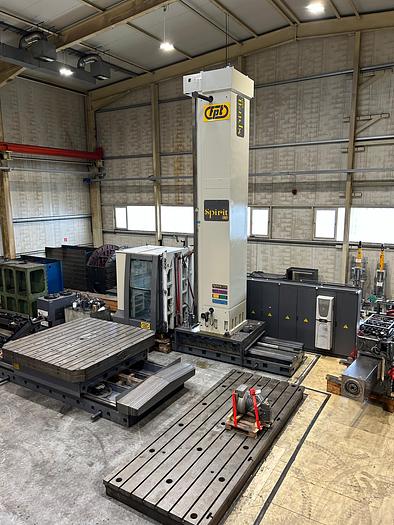

FPT Spirit 250 CNC 5-Axis Travelling Column Horizontal Boring Machine
FPT Spirit 250 CNC 5-Axis Travelling Column Horizontal Boring Machine
orCall 770-509-0744
Description

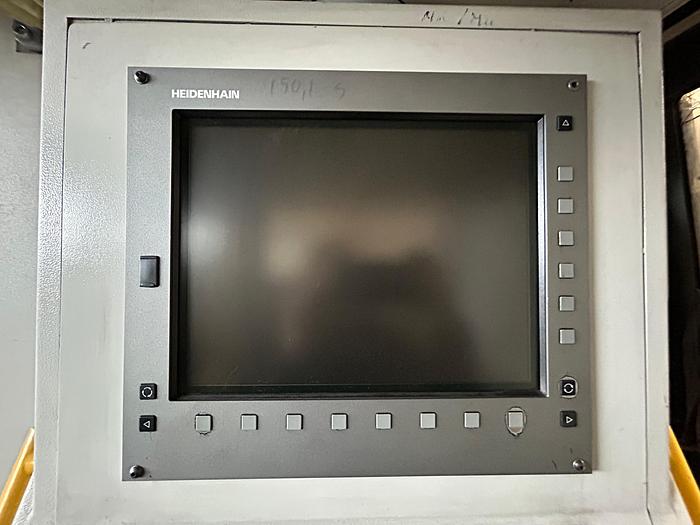

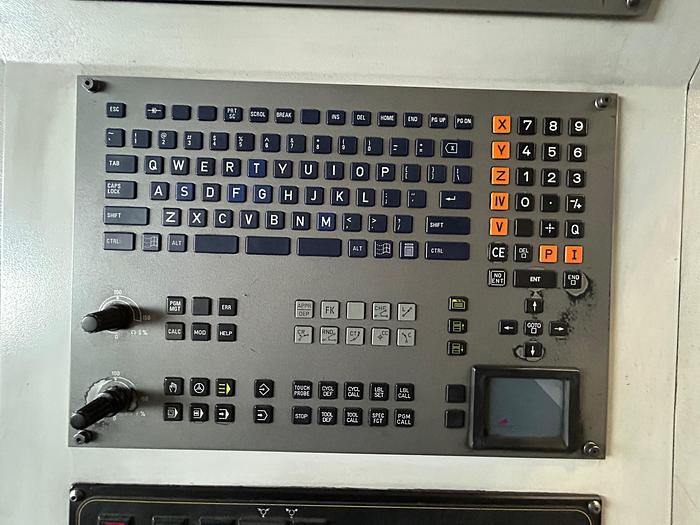

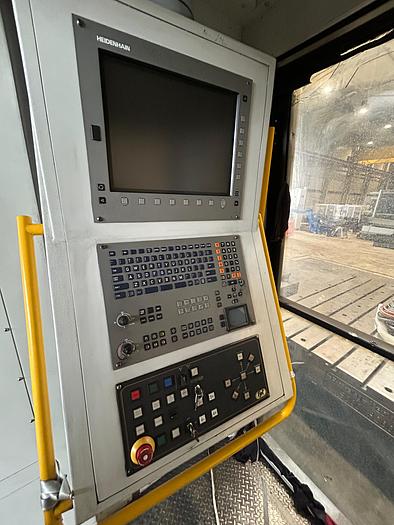

Heidenhain 530 CNC Control
3D M Sensor
CNC controlled angle head: micro 0,001°
5 Axis
2x panel fields 5 x 2 m
2x angles 3 x 2 m
Head Pick Up Station
Specifications
| Manufacturer | FPT |
| Model | Spirit 250 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 11068 |
| Spindle diameter | 180 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 14,000 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 3,000 x 3,000 mm |
| Table capacity | 80 Ton |
| V axis longitudinal travel | 2,500 mm |
| Feed speeds X/Y/Z | 5,000 mm/min |
| Turning speed range - Stepless | 25,000 mm/min |
| Machine dimensions | 25,000 x 14,000 x 7,300 mm |
| Spindle motor - Drive capacity | 60 kW |
| Max torque | 8,280 Nm |
| Total power requirement | 180 kW |
| Power requirement | 303 A |
