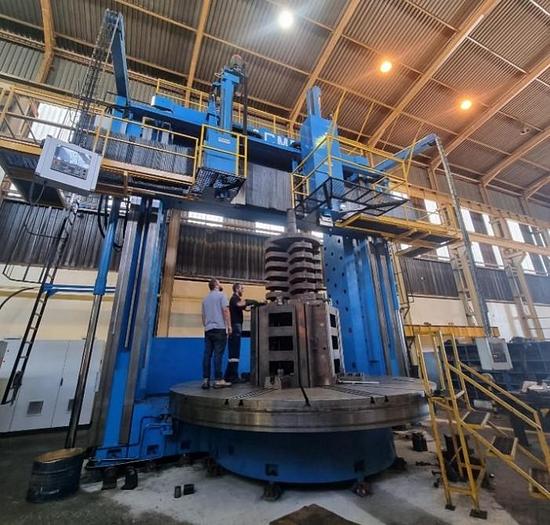

ACME Double Ram CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
![Refurbished 2023 ACME](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/59ba5165d88584e55ca3a85ea635d799/large-refurbished-2023-acme.jpg)
ACME Double Ram CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
orCall 770-509-0744
Description
Fully Rebuilt & Retrofitted In 2023

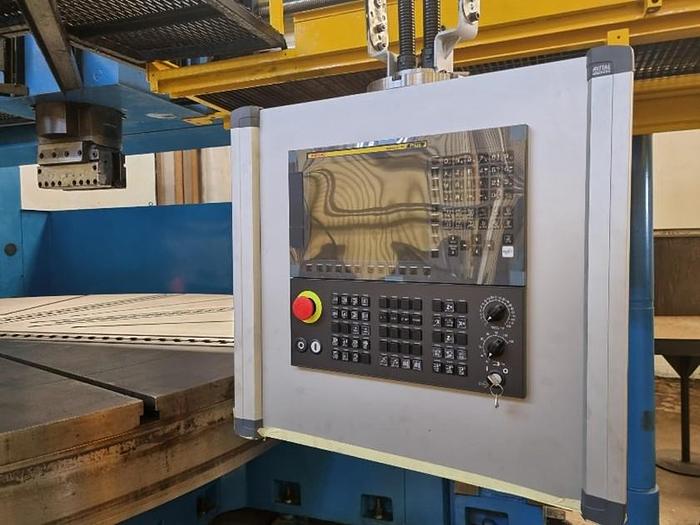

Twin Fanuc CNC Control Units
Fanuc 0i-TF 2-Axis Turning
Fanuc 0i-MF 3-Axis Milling
Left Ram - Milling Spindle 1,500 mm Z Axis Stroke
Right Ram - Turning Ram 2,160 mm Z Axis Stroke
Table Capacity 60 Ton with separate C-Axis motor & clamping system for very accurate C Axis Positioning
C-axis with precision rotary encoder and hydraulic clamp
Max Component Height Under Bridge 4,100 mm
Max Component Height Under Tool 4,000 mm

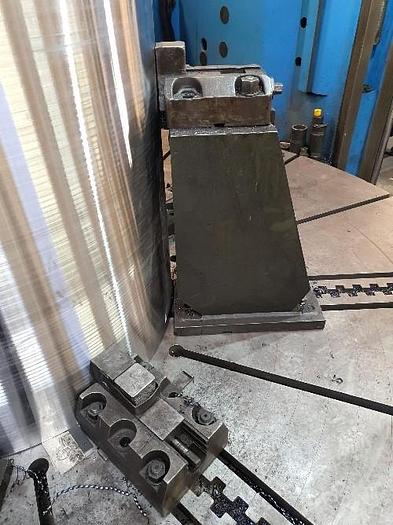

4 off jaw boxes
4 off raised blocks with their own jaw boxes

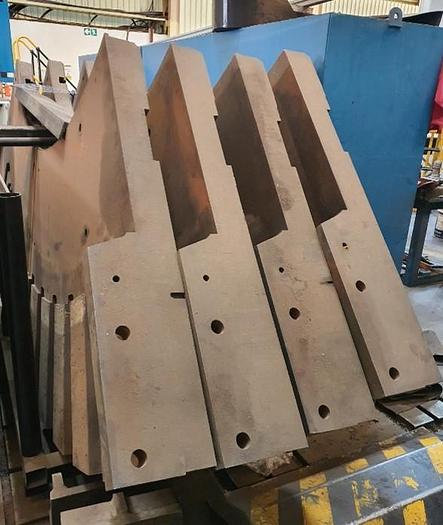

4 off radial table extension pieces
4 off outriggers

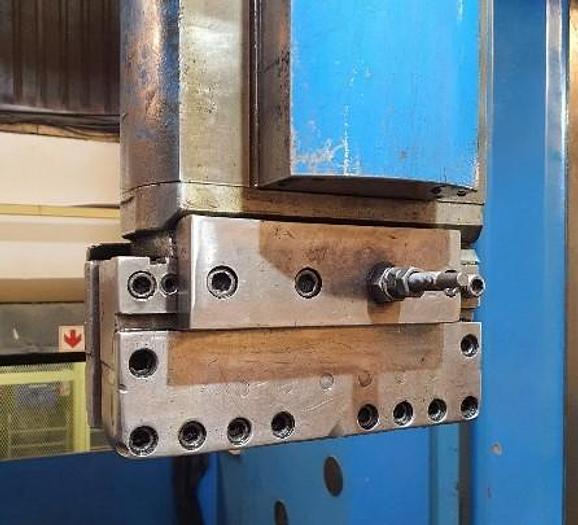

1 off turning tool holder
1 off right-angled milling head (light-duty)
Belt-grinding attachment
Specifications
Manufacturer | ACME |
Model | Twin Ram |
Year | 2023 |
Condition | Refurbished |
Stock Number | 11070 |
Table diameter | 4,500 mm |
Swing | 5,600 mm |
Turning height | 4,000 mm |
Table capacity | 60 Ton |
Table turn speed | 40 rpm |
Live spindle speed | 1,200 rpm |
Z axis travel | 2,160 & 1,500 mm |
W axis travel | 3,500 mm |
Main drive table motor | 75 kW |
