Poreba TCF 200-3/2 x 8 M CNC Heavy-Duty Horizontal Lathe
Poreba TCF 200-3/2 x 8 M CNC Heavy-Duty Horizontal Lathe
Description
The symbol 3/2 in the lathe type refers to three-way bed solution allowing the carriage to pass by the tailstock and the steadies.

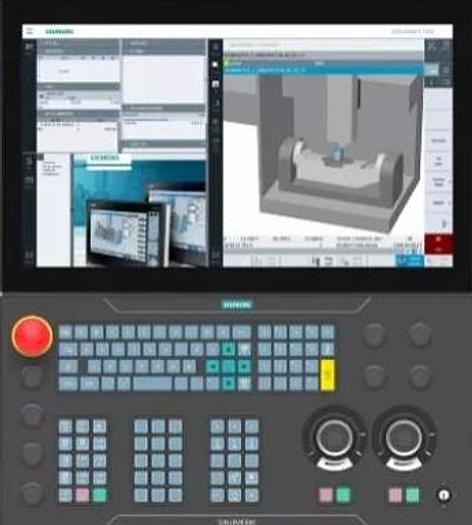

Siemens SINUMERIK ONE CNC Control, 15" Touch Screen
Software Option: ShopTurn SINUMERIK ONE
(Motors & Drives from Siemens) - brand new
Max Weight Between Centers with 2 Steadies - 40 Ton
Number of Spindle Speeds - 3 (0.8 - 250 rpm)
Face plate dia. 1600mm with 4 independent jaws
Tool system: 4-pos.
Baruffaldi vertical turret head without toolholders
1 set of new centers (for headstock and tailstock)
1 set leveling pads
Range of overhaul:
regrinding of the bed and the carriage plates
new all bearings
new ball screws
new full electrical equipment
new electrical cabinet from Rittal
steel cables conveyor from Kabelschlepp
new Linear Measuring Encoders AMO made for X1 and X2 axis
electronic hand held with spiral cable (6FX2007-1AD03)
geometry acc. ISO 1708
TOSIBOX remote control
1 set of leveling wedges
CE mark
Specifications
| Manufacturer | Poreba |
| Model | TCF 200-3/2 x 8 M |
| Condition | Refurbished |
| Stock Number | 11071 |
| Between centers | 8,000 mm |
| Capacity between centers | 30 Ton |
| Swing over bed | 2,000 mm |
| Swing over slide | 1,600 mm |
| Chuck diameter | 1,600 mm |
| Chuck speed | 250 rpm |
| Tailstock diameter | 280 mm |
| Spindle bore | 105 mm |
| Main motor power type 1PH8226 (new Siemens) | 71 kW |
| Rapid feed motor power | 3 kW |
| Tailstock motor power | 1.1 kW |
| Bed width | 1,500 mm |
| Bed height | 600 mm |
| Lathe Length | 13,900 mm |
| Machine weight | 42 Ton |
| Max jaw-clamped diameter | 1,200 mm |
| Minimum jaw-clamped diameter | 230 mm |
| Carriage longitudinal feeds | 0.1 - 4,000 mm/min |
| Cross feeds | 0.1 - 2,000 mm/rev. |
| Cross Slide Travel in X1 Axis (Ball Screw diameter 50 x 10 mm +DRO) | 620 mm |
| Cross Slide Travel in X2 Axis (Ball Screw diameter 50 x 10 mm +DRO) | 400 mm |
| Tailstock spindle nose | 70H6 |
| Barrel advance distance | 200 mm |
| Rapid barrel advance speed | 300 mm/min |
