Hankook VTC 140E CNC Ram Type Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
Hankook VTC 140E CNC Ram Type Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
Description

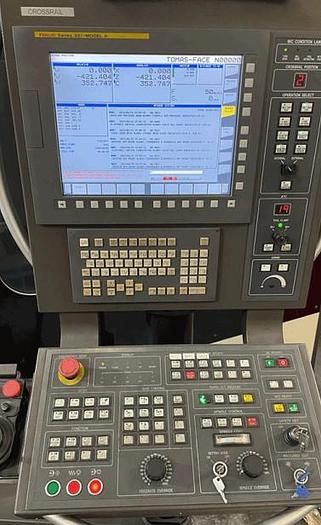

Fanuc 32iA Control System
RAM TYPE VERTICAL BORING & TURNING MACHINE WITH C-AXIS & DRIVEN TOOLS
HEAVY-DUTY CAST-IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY
HEAVY DUTY HARDENED & GROUND SLIDEWAYS TO PROVIDE INCREASED STABILITY & RIGIDITY
2 STEP AUTOMATIC GEAR CHANGE
24 POSITION TOOL MAGAZINE
CHIP CONVEYOR & CHIP BUCKET
30 BAR THROUGH SPINDLE COOLANT SYSTEM
MEASUREMENT SYSTEM C-AXIS SCALE
TRANSFORMER
HYDRAULIC 3-JAW & MANUAL 4-JAW COMBINATION CHUCK WITH 4 MANUAL ADJUSTABLE JAW BODIES
AUTOMATIC TOOL SETTING DEVICE
TOOLING INCLUDED:
DINE TOOLCHANGEABLE ANGULAR MILLING HEAD WITH 40 ISO OUTPUT
2 OFF SANDVIK CAPTO C6 TURNING TOOLHOLDERS WITH TWO OUTPUTS (V & H)
1 OFF SANDVIK CAPTO C6 AXIAL TURNING HEAD
7 OFF BT50 DRIVEN TOOLHOLDERS
1 OFF HANKOOK TA12B4121015043
1 OFF HANKOOK TA12B412015142
1 OFF HANKOOK TA12410000161
2 OFF HANKOOK TA12417010160
Through Tool Coolant
Table, Servo Drives & Motors
Through Spindle Coolant
4 Jaw Independent Manual Chuck
Splash Guard & Safety Guard Rail
Automatic Tool Change System
X-Axis Slideway Protect Steel Cover
Lubrication Oil Cooler
Work Light
Hydraulic Power Unit
Patrol Lamp (Red, Yellow & Green)
Automatic Guideway Lubrication System
NC Power Off
Coolant System & Wash Gun
Chip Pan
Electrical & Mechanical Manuals
Levelling Blocks
Specifications
| Manufacturer | Hankook |
| Model | VTC 140E |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11076 |
| Table diameter | 1,400 mm |
| Swing | 1,600 mm |
| Turning height | 1,400 mm |
| Table capacity | 8 Ton |
| Table turn speed | 360 rpm (Auto 2 step) |
| Live spindle speed | 3,000 rpm |
| Live spindle torque | 235 Nm |
| X axis travel | 1,600 mm |
| Z axis travel | 900 mm |
| X/Z feed rate | 7,500 mm/min |
| Table c axis indexing | 0.001° (max speed 3.333 rpm) |
| Spindle taper | ISO 7/24 #50 |
| Ram size | 220 x 220 mm |
| Table motor (cont./30 min) | AC 37/45 kW |
| Milling spindle motor power | 15/18.5 kW |
| X/Z axis servo motor | AC 7 kW |
| C axis motor | 7 kW |
| Input power capacity | 415V / 50Hz / 3 Ph |
| Power capacity | 80 KVA |
| Machine height | 5,535 mm |
| External width (with chip conveyor) | 6,760 mm |
| External depth | 4,565 mm |
| Machine weight | 25.8 Ton |
