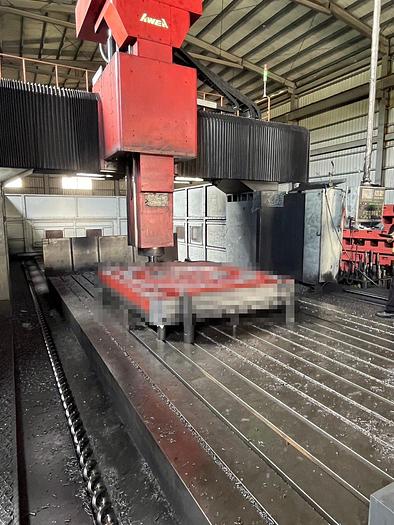

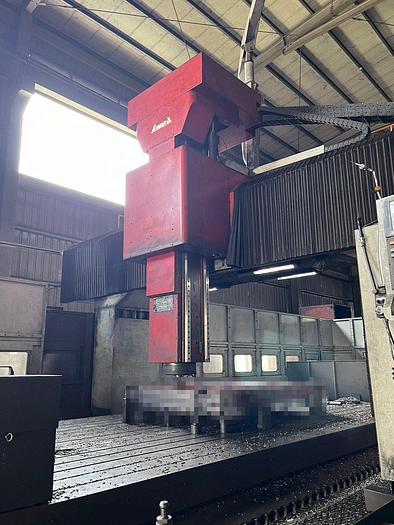

AWEA HTP-7041YF Double Column CNC Bridge Type Machining Center
AWEA HTP-7041YF Double Column CNC Bridge Type Machining Center
orCall 770-509-0744
Description

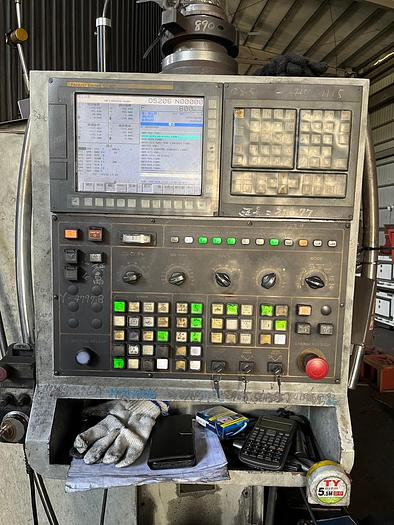

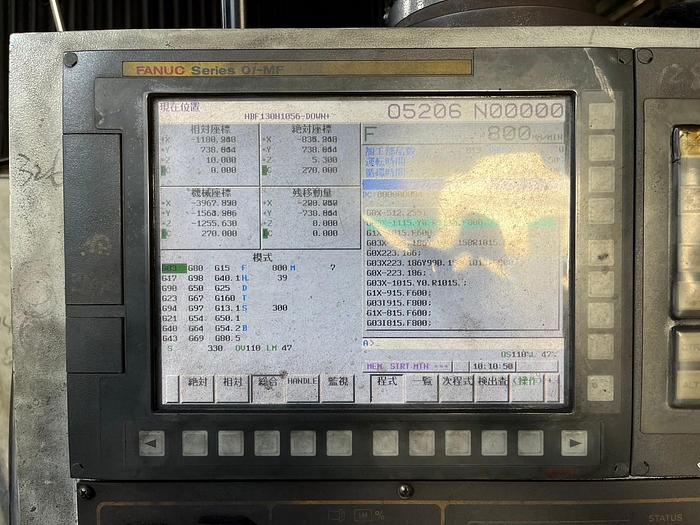

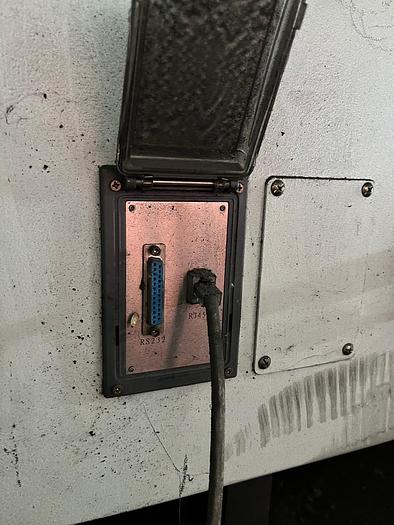

FANUC 0i-MF CNC Control (AICC + RS232)

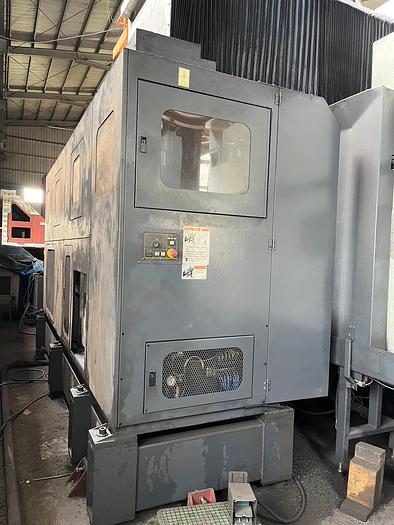

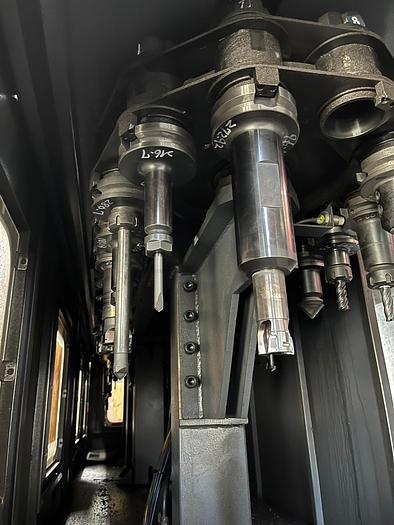

40 Position Automatic Tool Changer - BT50 (H+V ATC)
90 degree head (auto 5° indexing)
Extension head (auto tool changing)

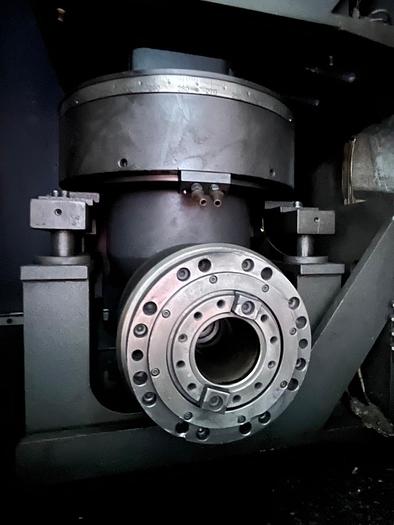

Universal head
Spindle speed: Vertical: 10 - 6,000rpm / Horizontal: 20 - 2,000rpm (Gear type)
Table to spindle nose: 400 - 1,800mm
Z axis 4 linear guide way design
Y axis 3 linear guide way design
X/Y/Z axes linear scales
Spindle oil coolant

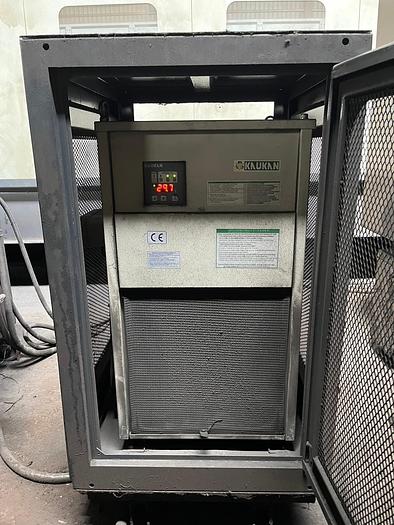

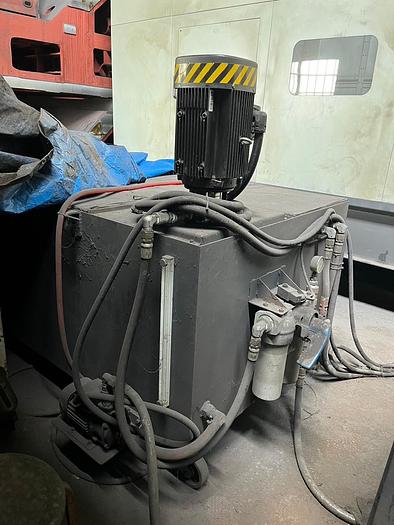

Hydraulic tank cooler
Coolant thru spindle 20bars
Air thru spindle

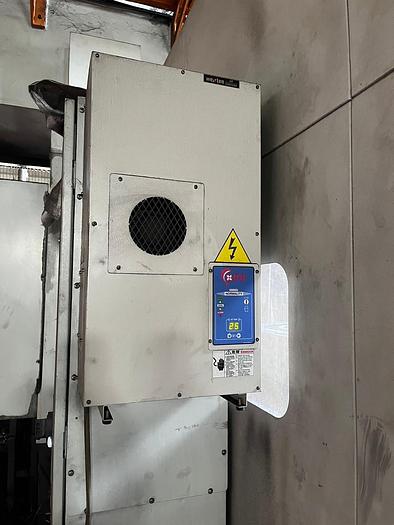

Air conditioner

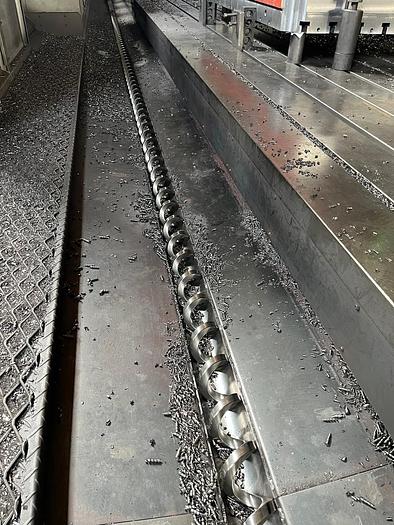

Chip conveyor + Bucket
Specifications
| Manufacturer | AWEA |
| Model | HTP-7041YF |
| Year | 2018 |
| Condition | Used |
| Stock Number | 11077 |
| Between columns | 4,300 mm |
| Spindle speeds | 6,000 rpm |
| Machining height | 1,800 mm |
| X axis travel | 7,050 mm |
| Y axis travel | 4,800 mm |
| Z axis travel | 1,400 mm |

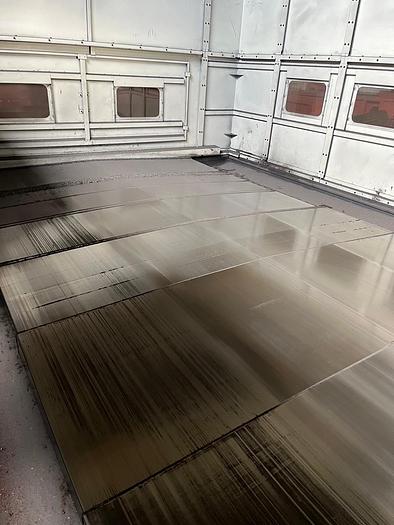

| Table size | 7,000 x 3,000 mm |
| Table capacity | 20 Ton/m² |
| Spindle taper | BT50 |
| Rapid traverse x axis | 7,500 mm/min |
| Rapid traverse y axis | 15,000 mm/min |
| Rapid traverse z axis | 10,000 mm/min |
